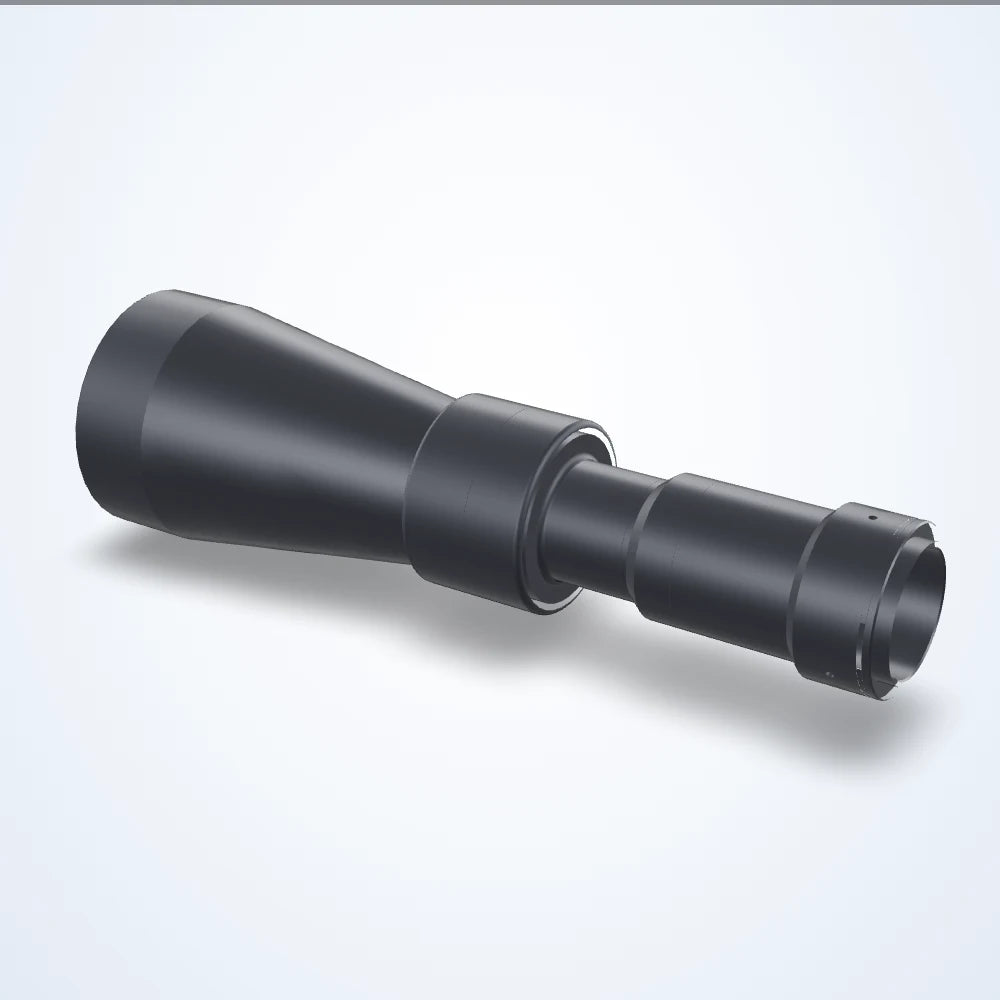

  • 0.401× telecentric lens, APS-C, M42-mount (LS-TCL-0119)

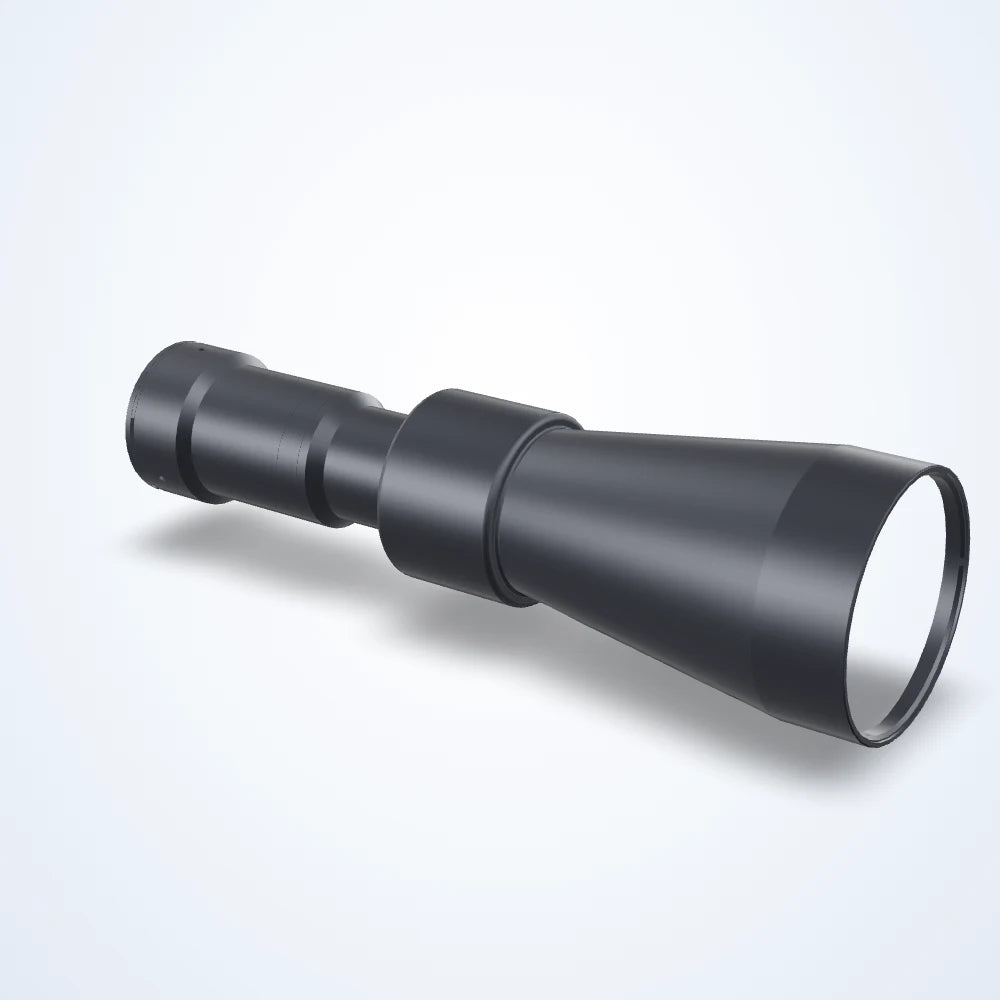

  • 0.401× telecentric lens, APS-C, M42-mount (LS-TCL-0119) - view 2

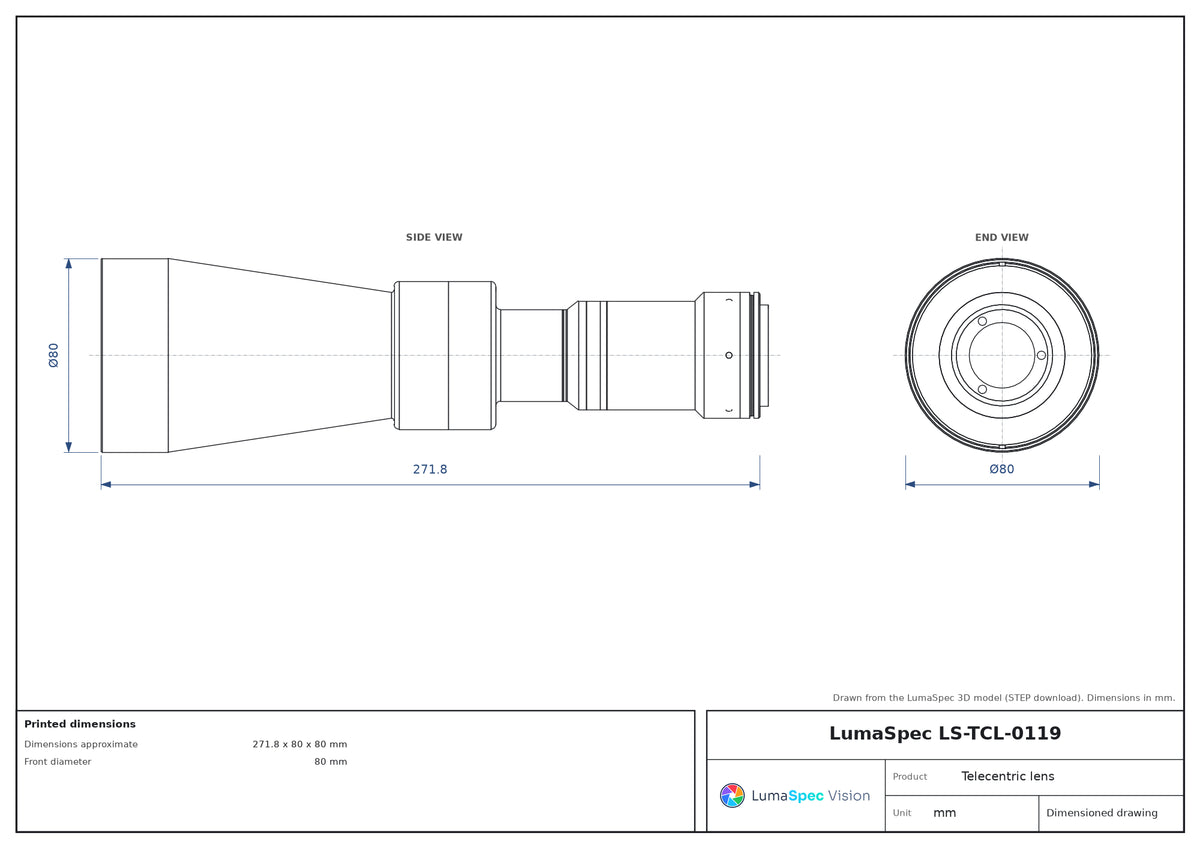

  • LS-TCL-0119 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.401× telecentric lens, APS-C, M42-mount (LS-TCL-0119)

Model LS-TCL-0119

  • Magnification0.401×
  • MountM42
  • SensorAPS-C
  • Working distance157.8 mm
  • Resolution13 μm
$4,619.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 157.8 mm; depth of field 4.1 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0119
4/3″ IMX36738.13 x 38.15 mm
4/3″ IMX38747.06 x 26.53 mm
Aps-c IMX34255.76 x 41.82 mm
Lens typeTelecentric
Line 4k-7µm71.50 mm
Working ƒ/nf/8

Optics

Magnification0.401×
Working distance157.8 mm
Depth of field4.1 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle28 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.03°

Sensor and imaging

Sensor formatAPS-C
Resolution (pixel size)13 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate271.8 x 80 x 80 mm
Front diameter80 mm
Weight1046 Grams
