Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.156× telecentric lens, APS-C, M42-mount (LS-TCL-0129)
Model LS-TCL-0129
- MountM42
- Sensor1.75"
- Resolution33 μm
- Sensor format1.75"
$8,359.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0129 |
|---|---|
| 4/3″ IMX367 | 98.01 x 98.08 mm |
| 4/3″ IMX387 | 120.96 x 68.21 mm |
| Aps-c IMX342 | 143.33 x 107.5 mm |
| Flange distance | 12 mm (Mount M42x1) |
| Front flange holes | M5 x4 and Ø8 x4 on Ø180 circle |
| Lens type | Telecentric |
| Line 4k-7µm | 183.78 mm |
| Phase adjustment | yes |
| Working ƒ/n | f/8 |
Optics
| Clear aperture | Ø186 |
|---|---|
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Image circle | 28 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.06° |
Sensor and imaging
| Resolution (pixel size) | 33 μm |
|---|
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |

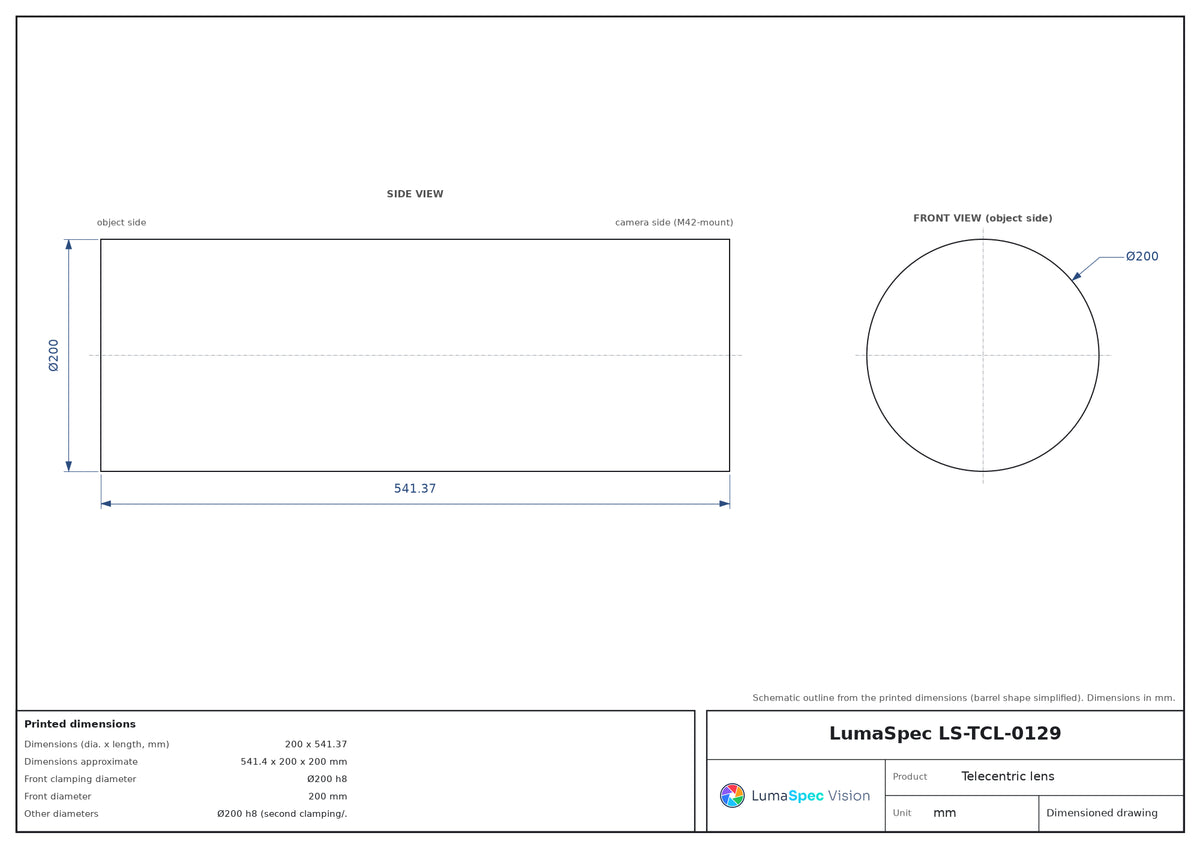

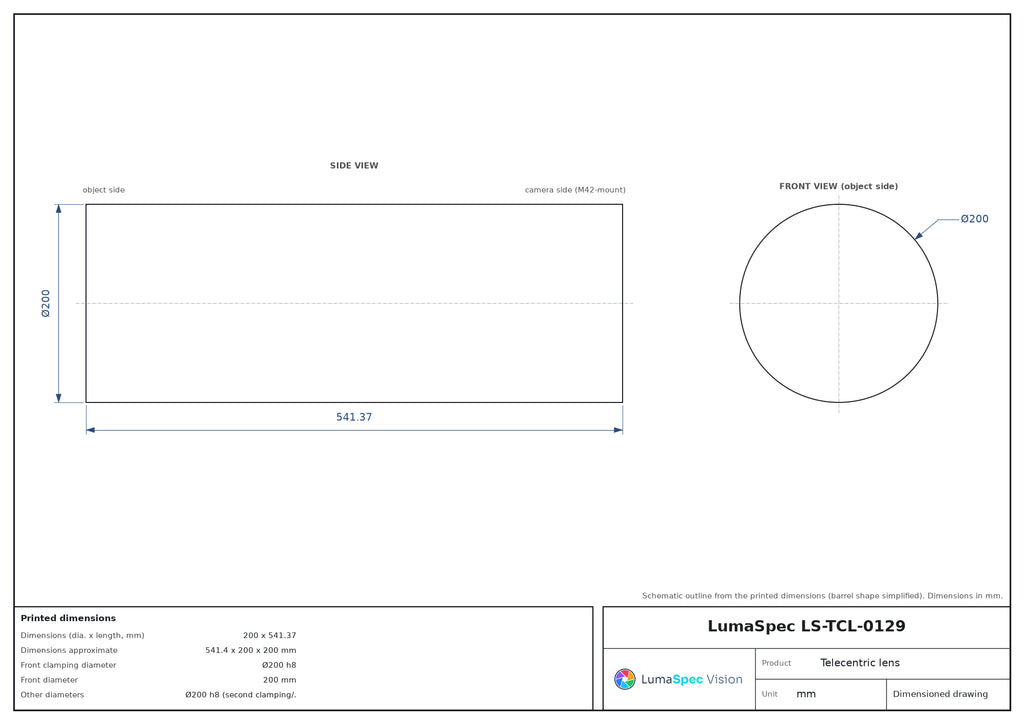

Mechanical
| Mount | M42-mount |
|---|---|
| Dimensions (dia. x length, mm) | 200 x 541.37 |
| Dimensions approximate | 541.4 x 200 x 200 mm |
| Front clamping diameter | Ø200 h8 |
| Front diameter | 200 mm |
| Other diameters | Ø200 h8 (second clamping/flange), Ø100 (rear cone start), Ø37.80 h8 (rear clamping), Ø45, Ø52 (mount ring) |
| Rear protrusion behind mount | 4.05 mm |
| Weight (g) | 5977 |

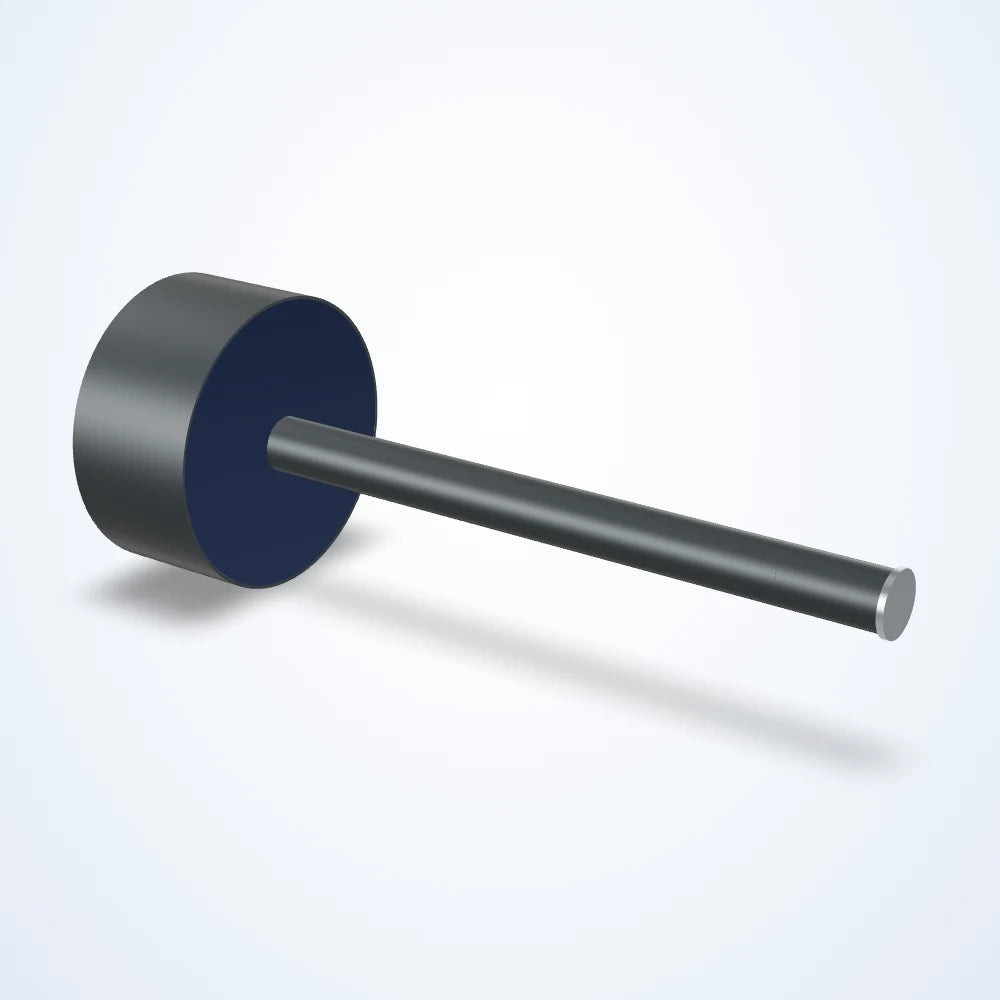

LS-TCL-0129
See this component from every angle.
Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Mount
- M42-mount
- 4/3″ IMX367
- 98.01 x 98.08 mm
- 4/3″ IMX387
- 120.96 x 68.21 mm
- Aps-c IMX342
- 143.33 x 107.5 mm
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
