M12 board lenses
3.9 mm, 1/2.5", 5 MP, M12-mount Low-Distortion M12 Lens (LS-SND3928-5M)
Model LS-SND3928-5M
- Focal length3.9 mm
- MountM12
- Sensor1/2.5"
- ApertureF3.0 Fixed iris
- Resolution5.0 Megapixel
$49.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.12 kg shipping weight
Volume pricing, Net 30 or a formal quote?
3.9 mm, 1/2.5", 5 MP, M12-mount Low-Distortion M12 Lens. High resolution: 5 megapixel covering all 5MP & 1080P. Large format: 1/2.5". Low distortion: <0.35% low distortion. At a glance: focal length 3.9 mm; format 1/2.5"; resolution 5.0 Megapixel; aperture F3.0 Fixed iris; mount M12 x P0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SND3928-5M |
|---|---|
| Format | 1/2.5" |
| Angle of view (1/2.5", DxHxV) | 96 x 80 x 60 deg |
| Notes | 2G2P / IR filter |
Optics
| Focal length | 3.9 mm |
|---|---|
| Back focal length | 4.54 mm |
| Aperture | F3.0 Fixed iris |
| Distortion | <0.35% |
| M.O.D. | 0.2 m |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

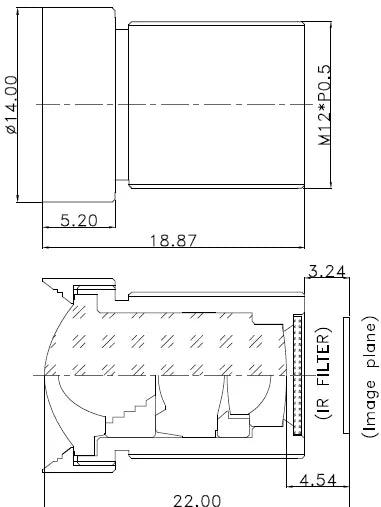

Mechanical
| Size | dia. 14 x 18.8 mm |
|---|---|
| Optical total length | 21.1 mm |
| Mount | M12 x P0.5 |
| Weight | 15 g |
| Shipping weight (estimated) | 0.12 kg |
