16 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens (LS-SND1628-5M)
Model LS-SND1628-5M
- Focal length16 mm
- MountM12
- Sensor1/1.8"
- ApertureF2.8 Fixed Iris
- Resolution5.0 MP
$49.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.11 kg shipping weight
Volume pricing, Net 30 or a formal quote?
16 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens. 16 mm, 1/1.8" 5 MP M12 (S-mount) lens with <0.1% TV distortion, F2.8; small size. Covers 1/1.8", 1/2" and 1/2.5" cameras for video conferencing, UAV, scanners, sports DV and machine vision. At a glance: focal length 16 mm; format 1/1.8"; resolution 5.0 MP; aperture F2.8 Fixed Iris; mount M12.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SND1628-5M |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8", DxHxV) | 30.3 x 24.4 x 18.4 deg |
| Angle of view (1/1.8") | 30.3 x 24.5 x 18.5 deg |
| Angle of view (1/3") | 20.4 x 17.1 x 12.3 deg |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture | F2.8 Fixed Iris |
| M.O.D. | 0.1 m |
| TTL | 19.3 mm |
| Distortion | <0.1% |
| Relative illumination | 80% |
| Total track length (TTL) | 19.3 mm |
| Distortion TV | <0.1% ( <0.1% @ 1/3" ) |
| Back focal length | 10.07 mm |
Sensor and imaging
| Resolution | 5.0 MP |
|---|

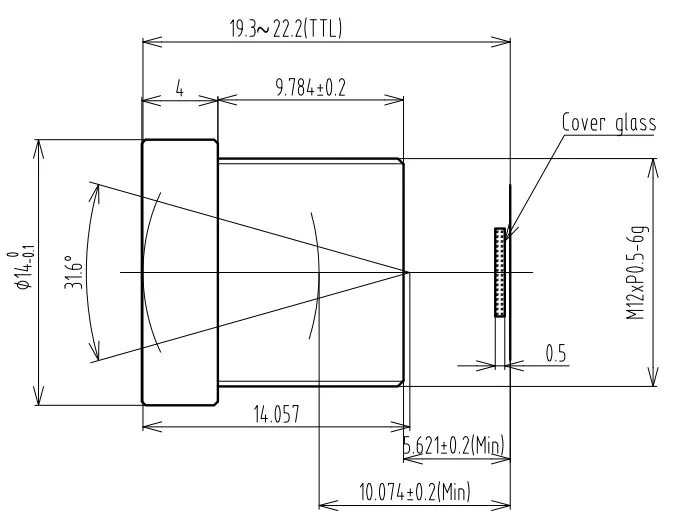

Mechanical
| Size | dia. 14 x 13.7 mm |
|---|---|
| Mount | M12 |
| Weight | 8 g |
| Object size (W.D=500 mm) | 273 x 218 x 164 mm |
| Shipping weight (estimated) | 0.11 kg |
