3.5 mm, 1/2.5", 3 MP, M12-mount Low-Distortion M12 Lens (LS-SND3518IR-3ML)
Model LS-SND3518IR-3ML
- Focal length3.5 mm
- MountM12
- Sensor1/2.5"
- ApertureF1.8 fixed iris
- Resolution3.0 MP
$49.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.12 kg shipping weight
Volume pricing, Net 30 or a formal quote?
3.5 mm, 1/2.5", 3 MP, M12-mount Low-Distortion M12 Lens. 3.5 mm 1/2.5" 3 MP M12 (S-mount) lens with low distortion (<1.5%) for machine vision, face recognition, scanning and video-conference cameras. At a glance: focal length 3.5 mm; format 1/2.5"; resolution 3.0 MP; aperture F1.8 fixed iris; mount M12.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SND3518IR-3ML |
|---|---|
| Format | 1/2.5" |
| IR correction | IR |
| Angle of view (1/2.5", DxHxV) | 90 x 84 x 68 deg |
Optics
| Focal length | 3.5 mm |
|---|---|
| Aperture | F1.8 fixed iris |
| M.O.D. | 0.2 m |
| Distortion | -1.5% |
| TTL | 27.29 mm |
| Back focal length | 5.89 mm |
Sensor and imaging
| Resolution | 3.0 MP |
|---|

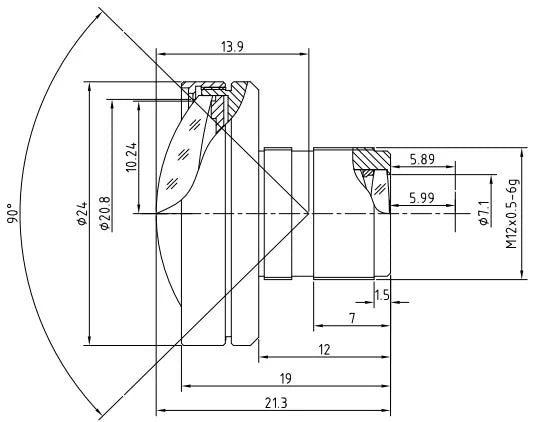

Mechanical
| Size | dia. 24 x 19 mm |
|---|---|
| Mount | M12 |
| Weight | 15 g |
| Shipping weight (estimated) | 0.12 kg |
