21 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-SIR2128-12M)
  • 21 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-SIR2128-12M)

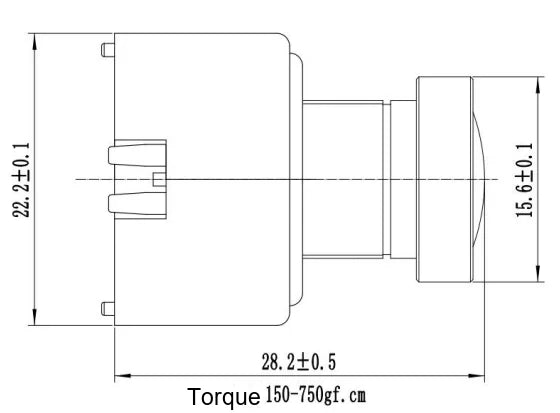

  • LS-SIR2128-12M dimensions (mm)

M12 board lenses

21 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-SIR2128-12M)

Model LS-SIR2128-12M

  • Focal length21mm
  • MountM12
  • Sensor1/1.7"
  • ApertureF2.8 Fixed Iris
  • Resolution12 Megapixel
  • Field of view214 x 196 x 174
$59.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.21 kg shipping weight

Volume pricing, Net 30 or a formal quote?

21 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens. Autofocus 21 mm 1/1.7" 12 megapixel ultra-low-distortion lens and lens module for iris recognition, face recognition and fingerprint cameras. Iris recognition photographs the iris with visible and near-infrared light. At a glance: focal length 21mm; format 1/1.7" IMX226; resolution 12 Megapixel; aperture F2.8 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SIR2128-12M
Format1/1.7" IMX226
CRA≤7.97°
Module torque (from drawing)150-750 gf.cm
M.F.L.5.63mm@500mm; 6.03mm@800mm

Optics

Max image circledia. 9.2mm
Focal length21mm
ApertureF2.8 Fixed Iris
Back focal length (optical)6.87mm
Mechanical back focal length5.63mm@500mm; 6.03mm@800mm
Relative illumination80%
Distortion-1.15%
Field of view at 500 mm (DxHxV)214 x 196 x 174
Field of view at 800 mm (DxHxV)342 x 278 x 208
AutofocusYes (lens module)
Field of view (object space distance 800 mm)342 x 278 x 208
Back focal length6.87 mm
Total track length (TTL)27.3 mm (Only Lens)

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 22.2 x 28.2mm ( Lens Module )
Optical total length27.3mm (Only Lens)
MountM12
Weight80g
Lens size (from drawing)dia. 15.6 x 21.4 mm, M12 x 0.5
Shipping weight (estimated)0.21 kg
