M12 board lenses
16 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens, 16mm (LS-SND3401LB-5M)
Model LS-SND3401LB-5M
- Focal length16mm
- MountM12
- Sensor1/2"
- ApertureF1.8 Fixed iris
- Resolution5.0 Megapixel
$49.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.11 kg shipping weight
Volume pricing, Net 30 or a formal quote?
16 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens. 16 mm 1/2" 5.0 megapixel M12 (S-mount) lens with -0.72% distortion for machine vision, face recognition and scanners. At a glance: focal length 16mm; format 1/2" / 6.4 x 4.8mm; resolution 5.0 Megapixel; aperture F1.8 Fixed iris; mount M12.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SND3401LB-5M |
|---|---|
| Format | 1/2" / 6.4 x 4.8mm |
| Angle of view (1/2", DxHxV) | 27.8 x 22.3 x 16.8 deg |
| CRA | 16° |
| Notes | 6 Element |
Optics
| Focal length | 16mm |
|---|---|
| Max image circle | dia. 8.4mm |
| Aperture | F1.8 Fixed iris |
| Relative illumination | >60% |
| M.O.D. | 0.5m |
| Distortion | -0.72% |
| Back focal length (optical) | 4.63mm ( in air) |
| Mechanical back focal length | 3.95mm ( in air ) |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

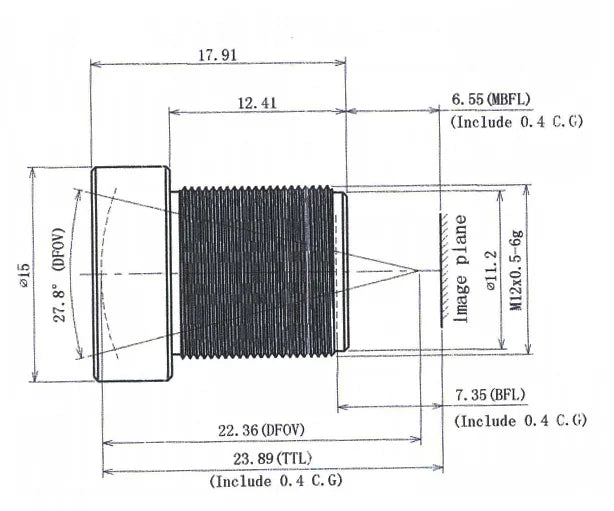

Mechanical
| Optical total length | 23.89mm |
|---|---|
| Size | dia. 15 x 17.91mm |
| Mount | M12 |
| Weight | 8g |
| Shipping weight (estimated) | 0.11 kg |
