M12 board lenses

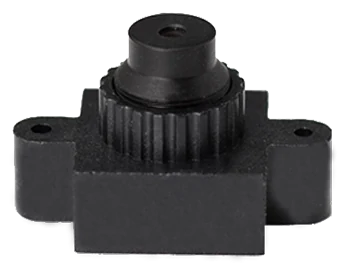

5.7 mm, 1/3", 5 MP, M8-mount Low-Distortion M12 Lens (LS-SND1001-5M)
Model LS-SND1001-5M
- Focal length5.7 mm
- MountM8
- Sensor1/3"
- ApertureF3.0 Fixed iris
- Resolution5.0 Megapixel
$49.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.11 kg shipping weight
Volume pricing, Net 30 or a formal quote?
5.7 mm, 1/3", 5 MP, M8-mount Low-Distortion M12 Lens. High resolution: 5 megapixel covering all 5MP & 1080P. Large format: 1/3". Low distortion: <-5.8% low distortion. At a glance: focal length 5.7 mm; format 1/3"; resolution 5.0 Megapixel; aperture F3.0 Fixed iris; mount M8 x P0.35 / M12 x P0.5 (optional).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SND1001-5M |
|---|---|
| Format | 1/3" |
| Angle of view (1/3", DxHxV) | 60 x 53 x 30 deg |
| Notes | 5G+IR650 |
Optics
| Focal length | 5.7 mm |
|---|---|
| Back focal length | 4.89 mm |
| Aperture | F3.0 Fixed iris |
| Distortion | <-5.8% |
| M.O.D. | 0.1 m |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

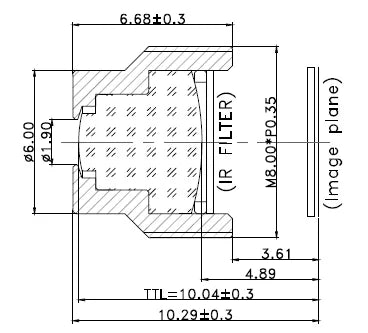

Mechanical
| Size | dia. 6 x 6.68 mm |
|---|---|
| Optical total length | 10.04 mm |
| Mount | M8 x P0.35 / M12 x P0.5 (optional) |
| Weight | 8 g |
| Shipping weight (estimated) | 0.11 kg |
