M12 board lenses
50 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens (LS-S23ND5035-5MS)
Model LS-S23ND5035-5MS
- Focal length50 mm
- MountM12
- Sensor2/3"
- ApertureF3.5 Fixed iris
- Resolution5 Megapixel
$49.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.12 kg shipping weight
Volume pricing, Net 30 or a formal quote?
50 mm, 2/3", 5 MP, M12-mount Low-Distortion M12 Lens. A 50 mm, 2/3" format, 5 megapixel super-low-distortion M12 (S-mount) lens for machine vision, face recognition and compact cameras. At a glance: focal length 50 mm; format 2/3" (dia. 11 / 8.8 x 6.6); resolution 5 Megapixel; aperture F3.5 Fixed iris; mount M12 x 0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S23ND5035-5MS |
|---|---|
| Format | 2/3" (dia. 11 / 8.8 x 6.6) |
| Angle of view (2/3", HxV) | 10.1 x 7.6 deg |
| Angle of view (1/1.8", HxV) | 8.2 x 6.1 deg |
| Angle of view (1/2", HxV) | 7.3 x 5.5 deg |
| B.F.L. | 5.5 mm |
| T.T.L. | 8.7 mm |
| Construction | 6G |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F3.5 Fixed iris |
| M.O.D. | 0.5 m |
| Back focal length | 5.5 mm |
| Total track length (TTL) | 8.7 mm |
Sensor and imaging
| Resolution | 5 Megapixel |
|---|

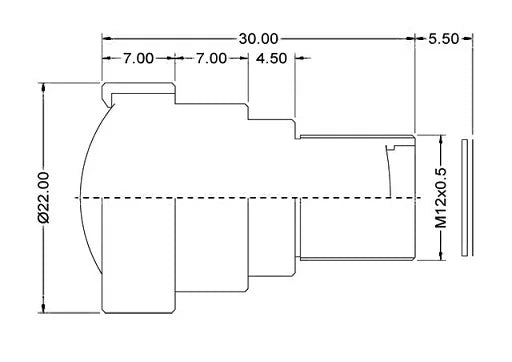

Mechanical
| Size | dia. 22 x 30 mm |
|---|---|
| Mount | M12 x 0.5 |
| Weight | 14.5 g |
| Shipping weight (estimated) | 0.12 kg |
