50 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens (LS-S12BF5025LIR-5M)
Model LS-S12BF5025LIR-5M
- Focal length50 mm
- MountM12
- Sensor1/2"
- ApertureF2.5 Fixed iris
- Resolution5.0 Megapixel
$49.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.14 kg shipping weight
Volume pricing, Net 30 or a formal quote?
50 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens. 50 mm F2.5 5 megapixel M12 (S-mount) lens with 0.17% distortion and IR correction for machine vision and other uses; the 1/2" format covers 1/2" and 1/2.5" cameras. At a glance: focal length 50 mm; format 1/2"; resolution 5.0 Megapixel; aperture F2.5 Fixed iris; mount M12 x 0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S12BF5025LIR-5M |
|---|---|
| IR correction | IR corrected (day/night) |
| Format | 1/2" |
| Angle of view (1/2", DxHxV) | 9.3 x 6.2 x 4.5 deg |
| Angle of view (1/3", DxHxV) | 6.9 x 5.5 x 4.1 deg |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F2.5 Fixed iris |
| M.O.D. | 0.5 m |
| Distortion | 0.17% |
| Back focal length | 7.3 mm |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

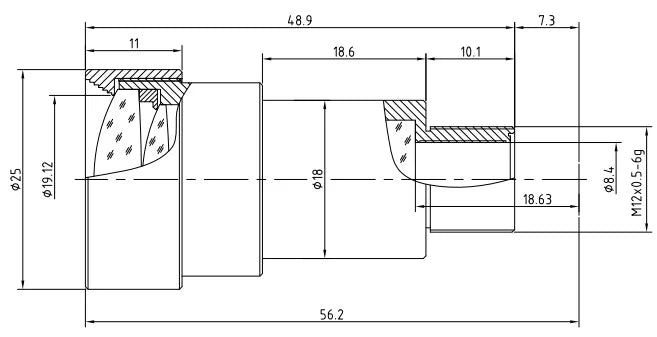

Mechanical
| Size | dia. 25 x 48.9 mm |
|---|---|
| Mount | M12 x 0.5 |
| Weight | 25 g |
| Optical total length | 56.2 mm |
| Shipping weight (estimated) | 0.14 kg |
