M12 board lenses
12 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens, 5.0 Megapixel (LS-SND3196-5ML)
Model LS-SND3196-5ML
- Focal length12 mm
- MountM12
- Sensor1/1.8"
- ApertureF2.0 Fixed iris
- Resolution5.0 Megapixel
$49.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.12 kg shipping weight
Volume pricing, Net 30 or a formal quote?
12 mm, 1/1.8", 5 MP, M12-mount Low-Distortion M12 Lens. High resolution: 5 megapixel covering 1080P. Large format: 1/1.8" size covering 1/2", 1/2.5", 1/2.7" camera. Low distortion: <-1.7% super low distortion. At a glance: focal length 12 mm; format 1/1.8" (Max image circle dia. 9.58 mm); resolution 5.0 Megapixel; aperture F2.0 Fixed iris; mount M12 x 0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SND3196-5ML |
|---|---|
| Format | 1/1.8" (Max image circle dia. 9.58 mm) |
| IR correction | IR |
| Angle of view (1/1.8") | 41.3 x 34 x 25.3 deg |
| CRA | 9.3° |
| Notes | 7G |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture | F2.0 Fixed iris |
| M.O.D. | 0.3 m |
| Distortion | <-1.5% |
| Back focal length | 6.74 mm |
| Relative illumination | >40% |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

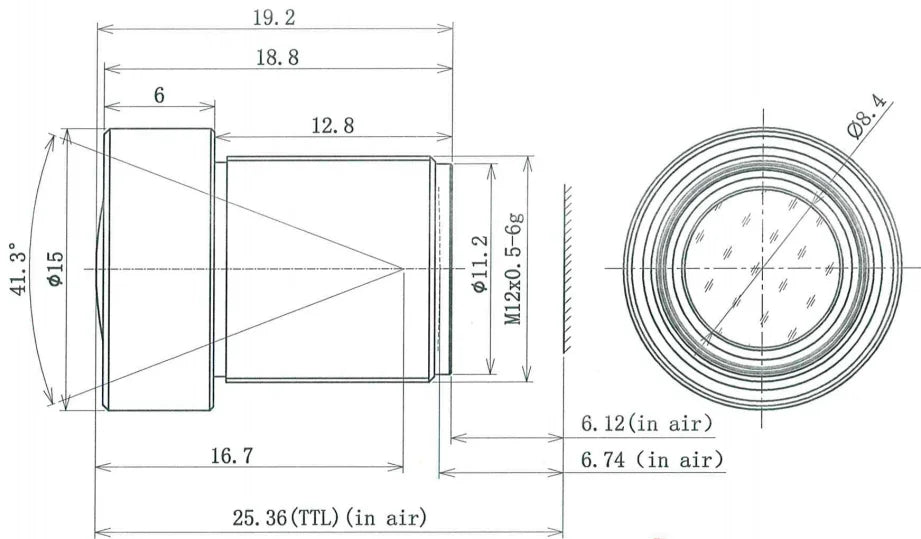

Mechanical
| Size | dia. 15 x 19.2 mm |
|---|---|
| Optical total length | 25.36 mm |
| Mount | M12 x 0.5 |
| Weight | 15 g |
| Shipping weight (estimated) | 0.12 kg |
