3 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens (LS-SND3328-5M)
  • 3 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens (LS-SND3328-5M)

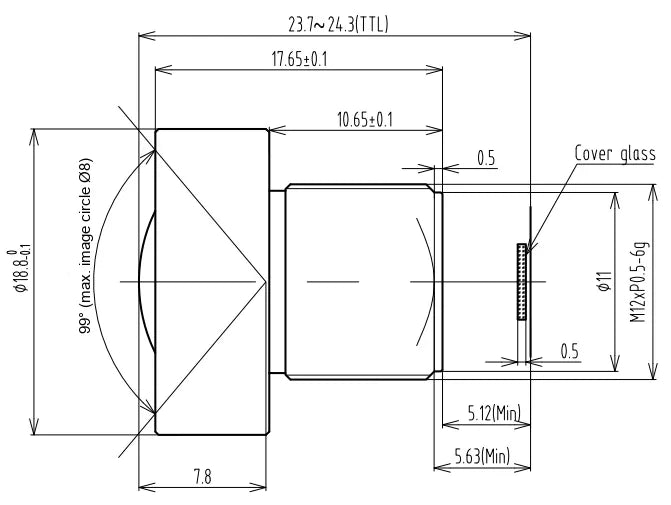

  • LS-SND3328-5M dimensions (mm)

M12 board lenses

3 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens (LS-SND3328-5M)

Model LS-SND3328-5M

  • Focal length3.0 mm
  • MountM12
  • Sensor1/2"
  • ApertureF2.8 Fixed Iris
  • Resolution5.0 MP
$89.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.11 kg shipping weight

Volume pricing, Net 30 or a formal quote?

3 mm, 1/2", 5 MP, M12-mount Low-Distortion M12 Lens. 3 mm, 1/2" 5 MP M12 (S-mount) lens with <0.1% TV distortion, F2.8; small size. Covers 1/2", 1/2.5" and 1/2.7" cameras for video conferencing, UAV, scanners, sports DV and machine vision. At a glance: focal length 3.0 mm; format 1/2"; resolution 5.0 MP; aperture F2.8 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SND3328-5M
Format1/2"
Angle of view (1/2", DxHxV)100 x 86 x 70 deg
B.F.L. / M.F.L.5.63 mm / 5.12 mm
CRA<9°
Angle of view (1/2")100 x 86 x 70 deg
Angle of view (1/3")83 x 71 x 51 deg
Angle of view (1/1.8", DxHxV)100 x 86 x 70 deg

Optics

Max image circle>dia. 8
Focal length3.0 mm
ApertureF2.8 Fixed Iris
M.O.D.0.1 m
TTL23.7 mm
Distortion<0.1%
Relative illumination>78%
Total track length (TTL)23.7 mm
Distortion TV< 1% ( <0.6% @ 1/3" )
Back focal length5.63 mm

Sensor and imaging

Resolution5.0 MP

Mechanical

Sizedia. 18.8 x 17.65 mm
MountM12
Weight8 g
Object size (W.D=300 mm)728 x 581.8 x 436.4 mm
Shipping weight (estimated)0.11 kg
