22 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-SND2228F-12M)
  • 22 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-SND2228F-12M)

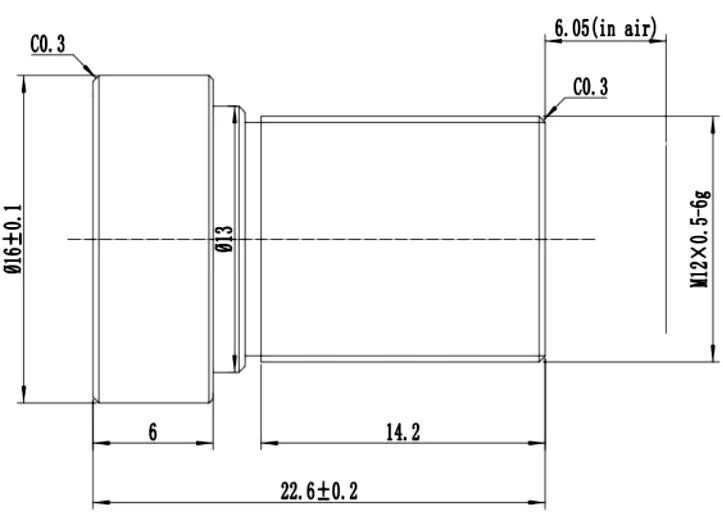

  • LS-SIR2228-12MF dimensions (mm)

M12 board lenses

22 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens (LS-SND2228F-12M)

Model LS-SND2228F-12M

  • Focal length22mm
  • MountM12
  • Sensor1/1.7"
  • ApertureF2.8 Fixed iris
  • Resolution12 Megapixel
$59.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.11 kg shipping weight

Volume pricing, Net 30 or a formal quote?

22 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 Lens. A 22 mm F2.8 fixed-iris M12 S-mount lens for 1/1.7" 12-megapixel sensors with -1.15% distortion, for recognition, scanners and machine vision. At a glance: focal length 22mm; format 1/1.7"; resolution 12 Megapixel; aperture F2.8 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SND2228F-12M
Format1/1.7"
Angle of view (1/1.7", DxHxV)21.4 x 19.3 x 17.3 deg
CRA<7.97°
Angle of view (1/1.8", DxHxV)21.4 x 19.3 x 17.3 deg

Optics

Focal length22mm
Image circledia. 9.2
ApertureF2.8 Fixed iris
Relative illumination80%
Distortion-1.15%
Back focal length6.872mm
Field of view (dia. 9.2 1/1.7" FOV)213 x 174 x 130 @500mm W.D; 342 x 279 x 208 @800m W.D
Max image circledia. 9.2
Field of view (dia. 9.2 1/1.7")213 x 174 x 130 @ 500 mm W.D; 342 x 279 x 208 @ 800m W.D

Sensor and imaging

Resolution12 Megapixel
Pixel size1.85μm

Mechanical

Sizedia. 16 x 22.6mm
MountM12
Weight8g
Optical total length28.65 mm
Shipping weight (estimated)0.11 kg
