M12 board lenses
3.2 mm, 1/2.5", 16 MP, M12-mount Low-Distortion M12 Lens (LS-SND3528-16M)
Model LS-SND3528-16M
- Focal length3.2 mm
- MountM12
- Sensor1/2.5"
- ApertureF2.4 Fixed iris
- Resolution16 Megapixel
$59.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.12 kg shipping weight
Volume pricing, Net 30 or a formal quote?
3.2 mm, 1/2.5", 16 MP, M12-mount Low-Distortion M12 Lens. High resolution: 16 megapixel covering all 5MP & 1080P. Large format: 1/2.5". Low distortion: <3.9% low distortion. At a glance: focal length 3.2 mm; format 1/2.5"; resolution 16 Megapixel; aperture F2.4 Fixed iris; mount M12 x 0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SND3528-16M |
|---|---|
| Format | 1/2.5" |
| Angle of view (1/2.5", DxHxV) | 100 x 89 x 57 deg |
| CRA | <10.2 |
| Notes | 6E / IR filter |
Optics
| Focal length | 3.2 mm |
|---|---|
| Back focal length | 3.4 mm |
| Aperture | F2.4 Fixed iris |
| Relative illumination | >66.5% |
| Distortion | <3.9% |
| M.O.D. | 0.1 m |
Sensor and imaging
| Resolution | 16 Megapixel |
|---|

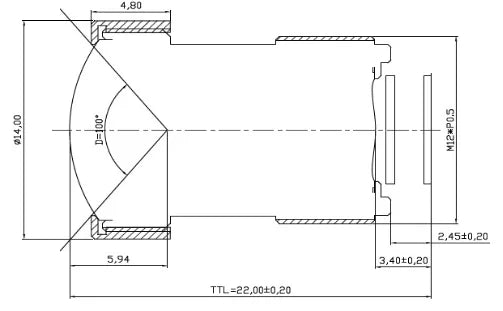

Mechanical
| Size | dia. 14 x 19.6 mm |
|---|---|
| Optical total length | 22 mm |
| Mount | M12 x 0.5 |
| Weight | 12 g |
| Shipping weight (estimated) | 0.12 kg |
