M12 board lenses
2.7 mm, 1/3", 8 MP, M12-mount Low-Distortion M12 Lens (LS-SND3429-8M)
Model LS-SND3429-8M
- Focal length2.7 mm
- MountM12
- Sensor1/3"
- ApertureF2.8 Fixed iris
- Resolution8.0 Megapixel
$59.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.11 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2.7 mm, 1/3", 8 MP, M12-mount Low-Distortion M12 Lens. High resolution: 8 megapixel covering all 5MP & 1080P. Large format: 1/3". Low distortion: <1.53% low distortion. At a glance: focal length 2.7 mm; format 1/3"; resolution 8.0 Megapixel; aperture F2.8 Fixed iris; mount M12 x P0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SND3429-8M |
|---|---|
| Format | 1/3" |
| Angle of view (1/3", DxHxV) | 99 x 90 x 58 deg |
| Notes | 2G2P / IR filter |
Optics
| Focal length | 2.7 mm |
|---|---|
| Back focal length | 3.46 mm |
| Aperture | F2.8 Fixed iris |
| Distortion | <1.53% |
| M.O.D. | 0.05 m |
Sensor and imaging
| Resolution | 8.0 Megapixel |
|---|

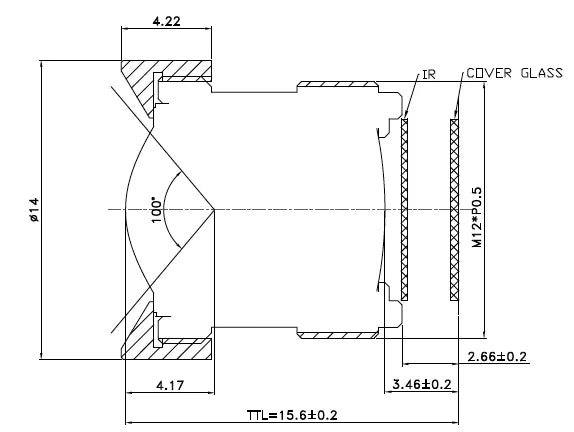

Mechanical
| Size | dia. 14 x 13 mm |
|---|---|
| Optical total length | 15.6 mm |
| Mount | M12 x P0.5 |
| Weight | 10 g |
| Shipping weight (estimated) | 0.11 kg |
