3 mm, 1/1.7", 10 MP, M12-mount Low-Distortion M12 Lens (LS-SND3020DS-10M)
  • 3 mm, 1/1.7", 10 MP, M12-mount Low-Distortion M12 Lens (LS-SND3020DS-10M)

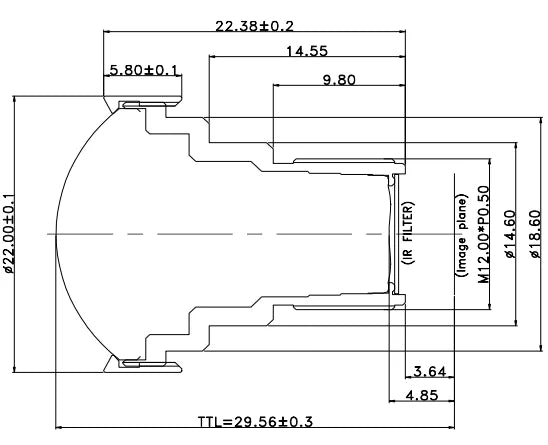

  • LS-SND3020DS-10M dimensions (mm)

M12 board lenses

3 mm, 1/1.7", 10 MP, M12-mount Low-Distortion M12 Lens (LS-SND3020DS-10M)

Model LS-SND3020DS-10M

  • Focal length3mm
  • MountM12
  • Sensor1/1.7"
  • ApertureF2.0 Fixed iris
  • Resolution10 Megapixel
  • Field of view122 x 113 x 75mm
$59.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.12 kg shipping weight

Volume pricing, Net 30 or a formal quote?

3 mm, 1/1.7", 10 MP, M12-mount Low-Distortion M12 Lens. 3 mm F2.0 M12 (S-mount) lens for 1/1.7" 10-12 megapixel sensors, TV distortion under -6.2% at 1/1.7", for video conferencing, recognition, scanners and machine vision. At a glance: focal length 3mm; format 1/1.7" (Max dia. 9.65mm); resolution 10 Megapixel; aperture F2.0 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SND3020DS-10M
Format1/1.7" (Max dia. 9.65mm)
Construction4G4P + IR650

Optics

Focal length3mm
ApertureF2.0 Fixed iris
Field of view (1/1.7")122 x 113 x 75mm
Field of view (1/1.8")119 x 110 x 72mm
Field of view (1/2.5")105 x 90 x 72mm
Distortion-6.4%@1/1.7"; -4%@1/2.5"
Back focal length (optical)4.85mm
Back focal length4.85 mm
Total track length (TTL)29.56 mm

Sensor and imaging

Resolution10 Megapixel

Mechanical

Sizedia. 22 x 26mm
Optical total length29.56mm
MountM12
Weight15 g
Shipping weight (estimated)0.12 kg
