M12 board lenses
4.2 mm, 1/2.3", 14 MP, M12-mount Low-Distortion M12 Lens (LS-SND1329-14M)
Model LS-SND1329-14M
- Focal length4.2 mm
- MountM12
- Sensor1/2.3"
- ApertureF3.0 Fixed iris
- Resolution14 Megapixel
$59.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.12 kg shipping weight
Volume pricing, Net 30 or a formal quote?
4.2 mm, 1/2.3", 14 MP, M12-mount Low-Distortion M12 Lens. High resolution: 14 megapixel covering all 8MP 4K. Large format: 1/2.3". Low distortion: -1.2% low distortion. At a glance: focal length 4.2 mm; format 1/2.3"; resolution 14 Megapixel; aperture F3.0 Fixed iris; mount M12 x 0.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SND1329-14M |
|---|---|
| Format | 1/2.3" |
| Angle of view (1/2.3", DxHxV) | 87 x 77 x 61 deg |
| Notes | 4G2P / 650 filter |
Optics
| Focal length | 4.2 mm |
|---|---|
| Back focal length | 3.62 mm |
| Aperture | F3.0 Fixed iris |
| M.O.D. | 0.1 m |
| Distortion | -1.2% |
Sensor and imaging
| Resolution | 14 Megapixel |
|---|

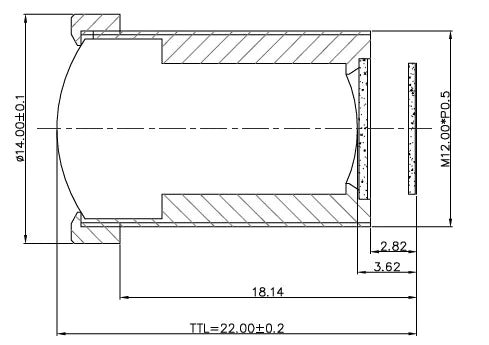

Mechanical
| Size | dia. 14 x 19.2 mm |
|---|---|
| Optical total length | 22 mm |
| Mount | M12 x 0.5 |
| Weight | 15 g |
| Shipping weight (estimated) | 0.12 kg |
Other models in the Low-Distortion M12 lenses series
See all 53 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SND3427-5M | 3 mm, 1/3", 5 MP, M12-mount | $49.00 | 4 in stock | View |
| LS-SND3518IR-3ML | 3.5 mm, 1/2.5", 3 MP, M12-mount | $49.00 | 3 in stock | View |
| LS-SND3928-5M | 3.9 mm, 1/2.5", 5 MP, M12-mount | $49.00 | 2 in stock | View |
| LS-SND4518IR-3ML | 4.5 mm, 1/2.5", 3 MP, M12-mount | $49.00 | 3 in stock | View |
| LS-SND5038J-2M | 6 mm, 1/2.7", 5 MP, M12-mount | $49.00 | 5 in stock | View |
| LS-SND5518IR-3ML | 5.5 mm, 1/1.8", 3 MP, M12-mount | $49.00 | 2 in stock | View |
| LS-SND6668-MF | 6.6 mm, 1/2.7", 1.3 MP, M10-mount | $49.00 | 4 in stock | View |
| LS-SIR1428-12MF | 14 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SIR2128-12M | 21 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SIR2228-12MF | 22 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SND0856-12M | 8 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SND1256-12M | 12 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 5 in stock | View |
| LS-SND1428F-12M | 14 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-SND1656-12M | 16 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SND20618F-8M | 1.9 mm, 1/2.8", 8 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SND2228F-12M | 22 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 3 in stock | View |
| LS-SND2556-12M | 25 mm, 1/1.7", 12 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SND2623-8M | 2.8 mm, 1/2.5", 8 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-SND2625-12M | 2.8 mm, 1/2.5", 12 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SND2631SD-12M | 2.7 mm, 1/2.3", 12 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-SND2636A1SD-8M | 1.8 mm, 1/2.7", 8 MP, M12-mount | $59.00 | 4 in stock | View |
| LS-SND2639A1SD-8M-H | 2.2 mm, 1/2.7", 8 MP, M12-mount | $59.00 | 5 in stock | View |
| LS-SND3020DS-10M | 3 mm, 1/1.7", 10 MP, M12-mount | $59.00 | 2 in stock | View |
| LS-SND3328-16M | 3.3 mm, 1/2.3", 16 MP, M12-mount | $59.00 | 3 in stock | View |
