2.7 mm, 1/2.3", 12 MP, M12-mount Low-Distortion M12 Lens (LS-SND2631SD-12M)
  • 2.7 mm, 1/2.3", 12 MP, M12-mount Low-Distortion M12 Lens (LS-SND2631SD-12M)

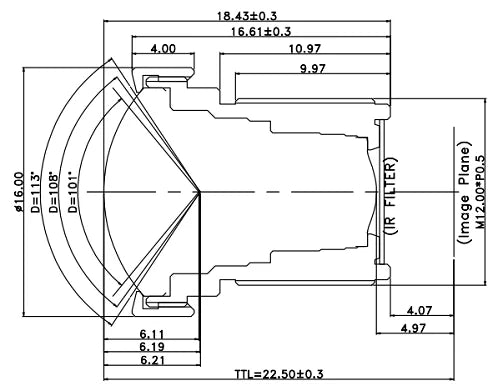

  • LS-SND2631SD-12M dimensions (mm)

M12 board lenses

2.7 mm, 1/2.3", 12 MP, M12-mount Low-Distortion M12 Lens (LS-SND2631SD-12M)

Model LS-SND2631SD-12M

  • Focal length2.7 mm
  • MountM12
  • Sensor1/2.3"
  • ApertureF2.8 Fixed iris
  • Resolution12 Megapixel
$59.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.12 kg shipping weight

Volume pricing, Net 30 or a formal quote?

2.7 mm, 1/2.3", 12 MP, M12-mount Low-Distortion M12 Lens. 2.7 mm F2.8 M12 (S-mount) low-distortion board lens for 1/2.3" 12 megapixel sensors (8.3 mm image circle), distortion -1.5%, small size. At a glance: focal length 2.7 mm; format 1/2.3"; resolution 12 Megapixel; aperture F2.8 Fixed iris; mount M12 x 0.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SND2631SD-12M
Format1/2.3"
Angle of view (1/2.3" (IMX477), DxHxV)113 x 100 x 83 ( IMX378 )
Angle of view (1/2.5" (IMX317), DxHxV)108 x 97 x 67
Angle of view (1/2.8" (IMX415), DxHxV)101 x 93 x 61
CRA<21°@1/2.3"; <19°@1/2.5"; <17°@1/2.8"
Notes5G2P / 650 filter; -30℃~+70℃

Optics

Focal length2.7 mm
Back focal length (optical)4.97mm
ApertureF2.8 Fixed iris
Relative illumination>52%@1/2.3"; >59%@1/2.5"; >67%@1/2.8"
Distortion-1.5%@1/2.3"; -1.3%@1/2.5"; -1%@1/2.8"
Image circledia. 8.3 mm

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 16 x 18.4mm
Optical total length22.5mm
MountM12 x 0.5
Weight15g
Shipping weight (estimated)0.12 kg
