2/3", 20 MP, C-mount 360° Inspection Lens (LS-PCL-0002)

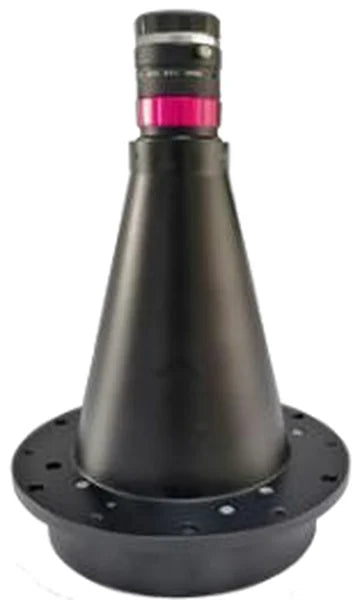

  • 2/3", 20 MP, C-mount 360° Inspection Lens (LS-PCL-0002)

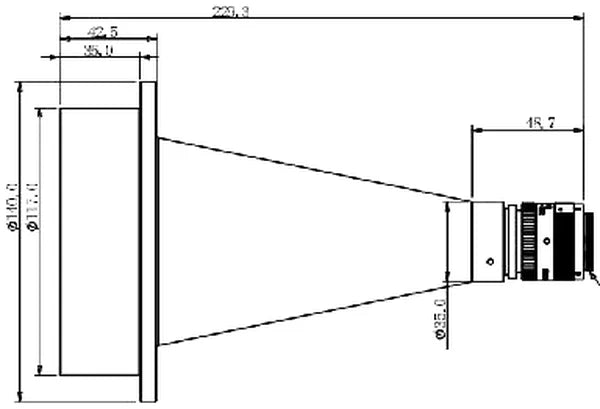

  • LS-PCL-0002 dimensions (mm)

360° inspection lenses

2/3", 20 MP, C-mount 360° Inspection Lens (LS-PCL-0002)

Model LS-PCL-0002

  • MountC-mount
  • Sensor2/3"
  • Working distance5~6 mm
  • ApertureF2.8~25
  • Resolution20M
$919.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2/3", 20 MP, C-mount 360° Inspection Lens (LS-PCL-0002)LS-PCL-0002

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2/3", 20 MP, C-mount 360° Inspection Lens. Multi-angle 8-mirror lens that images the outer wall of a 7-50 mm part from 8 sides at the same magnification, for 1.1" to 2/3" industrial cameras, working distance 5-6 mm. At a glance: working distance 5~6 mm; suggested sensor 2/3"; resolution 20M; aperture F2.8~25; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-PCL-0002
Mirrors8 (8-side imaging)
Format2/3" suggested (title 1.1"~2/3"; drawing: max 1" sensor)
Inspection tableDiameter / height / WD (mm): 7 / 26 / 5; 10 / 25 / 5; 15 / 22 / 5; 20 / 20 / 6; 25 / 18 / 5; 30 / 15 / 5; 35 / 13 / 5; 40 / 7 / 6; 45 / 6 / 5; 50 / 2 / 6
W.D.3~40 mm
NotesFA type ( Telecentric type is LS-PCL-0030 )
TypePoly View (Outer View)
Printed in format column5-20 mm

Optics

Working distance5~6 mm
MTF126lp/mm
ApertureF2.8~25

Sensor and imaging

Suggested sensor2/3"
Resolution20M

Light

Wavelength400~680 nm
Illuminator voltageDC 24V

Electrical

Power18W

Mechanical

Inspection diameter7~50 mm
Inspection Height26~2 mm
MountC
Length240.5 mm
Diameter140 mm
Test range (diameter / height / WD, mm)7/26/5; 10/25/5; 15/22/5; 20/20/6; 25/18/5; 30/15/5; 35/13/5; 40/7/6; 45/6/5; 50/2/6 (tested with a 5MP 2/3" camera)
Object diameter7~50 mm
Object height26~2 mm
Sizedia. 140 x 240.5 mm
Max object FOV dia. (side) by object height20 mm: 30 mm; 5 mm: 72 mm
Max object FOV dia. (side + top) by object height10 mm: 30 mm
Shipping weight (estimated)0.94 kg
