1/2", C-mount 360° Inspection Lens, WD 20-92 mm (LS-PCL-0011)
  • 1/2", C-mount 360° Inspection Lens, WD 20-92 mm (LS-PCL-0011)

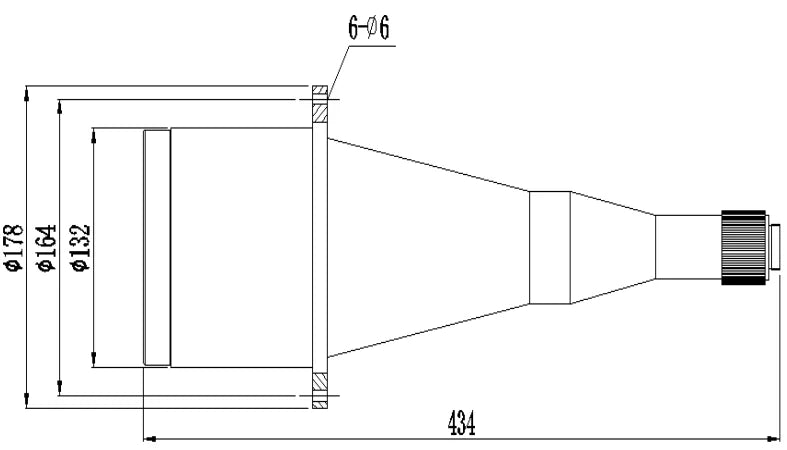

  • LS-PCL-0011 dimensions (mm)

360° inspection lenses

1/2", C-mount 360° Inspection Lens, WD 20-92 mm (LS-PCL-0011)

Model LS-PCL-0011

  • MountC-mount
  • Sensor1/2"
  • Working distance20-92 mm
  • Sensor format1/2"
$1,009.00

Ships in 2-3 weeks

7.1 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1/2", C-mount 360° Inspection Lens, WD 20-92 mm (LS-PCL-0011)LS-PCL-0011

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1/2", C-mount 360° Inspection Lens. 1/2" pericentric 360-degree outer view lens that images the top and the side wall of an object at the same time. 2024 version LS-PCL-0011: working distance 16-79 mm, objects 13-70 mm in diameter; 2023 version LS-PCL-0010 (20-60 mm objects, WD 20-80 mm) is end of life. At a glance: working distance 20-92 mm; sensor 1/2"; mount C; image height 4.8 mm; size dia. 178 (flange) x 434 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-PCL-0011
F No.12

Optics

Working distance20-92 mm

Sensor and imaging

Sensor1/2"

Light

Wavelength450-650 nm

Mechanical

Image height4.8 mm
FOV (diameter x height)Min. 13 x 65 mm; Max 65 x 20 mm
Weight5 kg
MountC
Sizedia. 178 (flange) x 434 mm
Object diameter / WD / height range (mm)13 / 79 / 0-65; 20 / 70.5 / 0-62; 30 / 62.5 / 0-52; 40 / 48 / 0-41; 50 / 38 / 0-34; 60 / 29 / 0-25; 65 / 21 / 0-17; 70 / 16 / 0-12
Shipping weight (estimated)7.10 kg
