1", C-mount 360° Inspection Lens, >=1" (LS-PCL-0015)
  • 1", C-mount 360° Inspection Lens, >=1" (LS-PCL-0015)

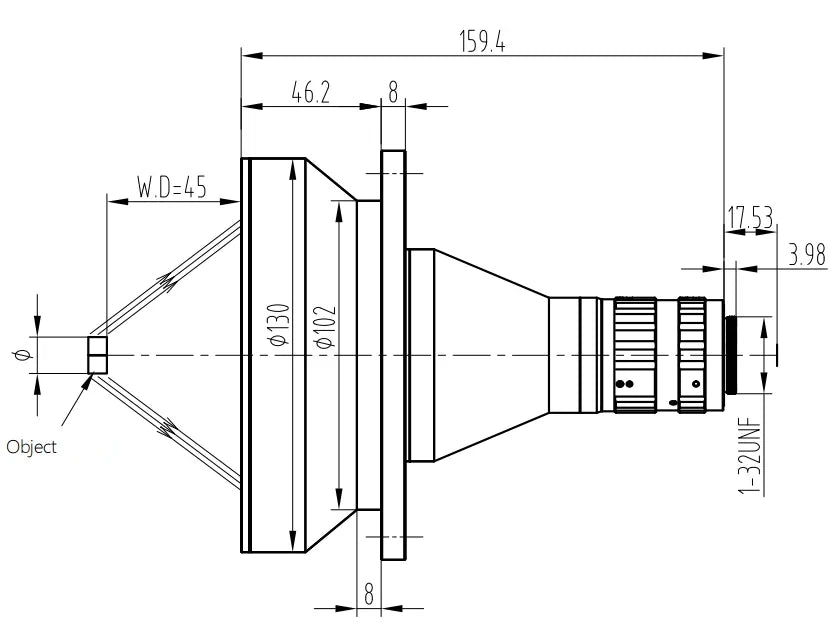

  • LS-PCL-0015 dimensions (mm)

360° inspection lenses

1", C-mount 360° Inspection Lens, >=1" (LS-PCL-0015)

Model LS-PCL-0015

  • MountC-mount
  • Sensor1"
  • Working distance44.3 mm
  • ApertureF2.8~F22
$909.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1", C-mount 360° Inspection Lens, >=1" (LS-PCL-0015)LS-PCL-0015

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1", C-mount 360° Inspection Lens. Poly View 1" multi-angle reflection lens with 8 mirrors for 360-degree outer-wall imaging of tiny cylindrical objects under 15 mm in diameter, with manual focus. At a glance: working distance 44.3 mm; format >=1"; aperture F2.8~F22; mount C; size dia. 135 x 159.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-PCL-0015
Format>=1"
Mirrors8
Inspection tableO.D. / height ; I.D. / height (mm): 0.2 / 15 / 1 / 1.4; 6 / 15 / 5 / 10.6; 8 / 17 / 10 / 14.3; 10 / 17 / 15 / 21.5; 15 / 17 / 20 / 28.5

Optics

Working distance44.3 mm
ApertureF2.8~F22
Focusmanual

Light

Wavelength450~650 nm visible

Mechanical

Object diameter< dia. 15 mm
MountC
Sizedia. 135 x 159.4 mm
Shipping weight (estimated)0.94 kg
