360° inspection lenses

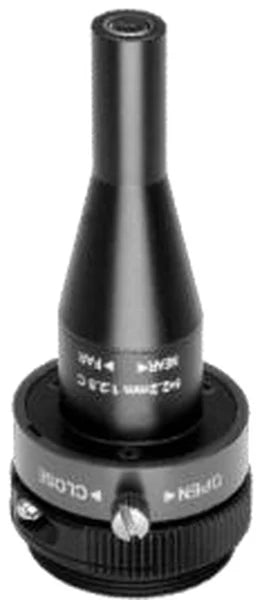

1/1.8", 10 MP, C-mount 360° Inspection Lens (LS-PCL-0036)
Model LS-PCL-0036
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8 Manual iris
- Resolution10 Megapixel
$899.00
Ships in 2-3 weeks
0.16 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1/1.8", 10 MP, C-mount 360° Inspection Lens. Compact 10 megapixel inner-wall 360-degree inspection lens for 1/1.8" cameras with a 178-degree view and 5 mm minimum object distance; a 24 V, 24-LED ring light is the accessory. At a glance: format 1/1.8"; resolution 10 Megapixel; aperture F2.8 Manual iris; mount C; m.o.d. 5 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PCL-0036 |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8") | 178 deg |
| Notes | Element 9G |
| Accessory | Lighting 24 V, 24 LED |
Optics
| Image circle | dia. 8 ( 1/2" ) |
|---|---|
| Aperture | F2.8 Manual iris |
| M.O.D. | 5 mm |
Sensor and imaging
| Resolution | 10 Megapixel |
|---|
Mechanical

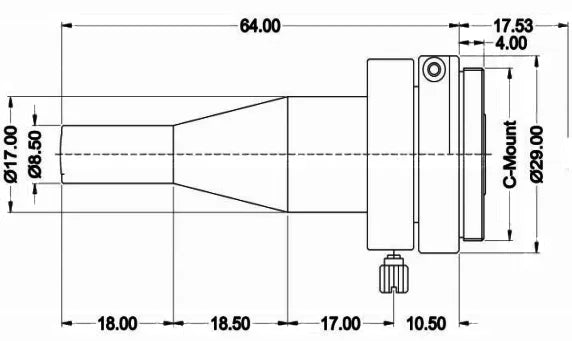

| Size | dia. 29 x 64 mm |
|---|---|
| Mount | C |
| Weight | 40 g |
| Shipping weight (estimated) | 0.16 kg |
