2/3", C-mount 360° Inspection Lens, F1.6~16, 420-680 nm (LS-PCL-0012)
  • 2/3", C-mount 360° Inspection Lens, F1.6~16, 420-680 nm (LS-PCL-0012)

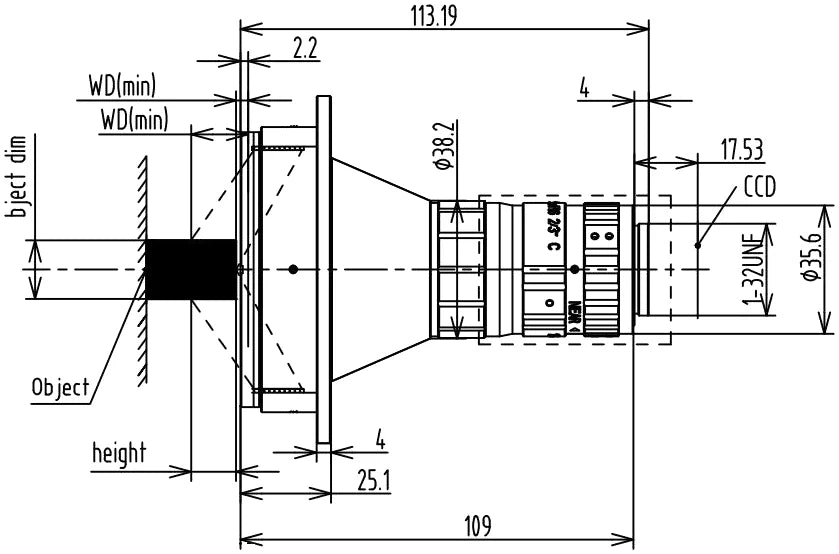

  • LS-PCL-0012 dimensions (mm)

360° inspection lenses

2/3", C-mount 360° Inspection Lens, F1.6~16, 420-680 nm (LS-PCL-0012)

Model LS-PCL-0012

  • MountC-mount
  • Sensor2/3"
  • ApertureF1.6~16
  • Sensor format2/3"
$899.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2/3", C-mount 360° Inspection Lens, F1.6~16, 420-680 nm (LS-PCL-0012)LS-PCL-0012

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2/3", C-mount 360° Inspection Lens. Poly View multi-angle reflection lens with 8 mirrors for 360-degree outer-wall imaging of small cylindrical objects 0.8-30 mm in diameter (object height 4.6-17 mm) on sensors of 2/3" and larger. Marked EOL soon, to be replaced by a new product. At a glance: format 2/3"; aperture F1.6~16; mount C; size flange dia. 96.1 mm, length 109 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-PCL-0012
Format2/3"
Mirrors8
Inspection tableDiameter / height at WD 2 mm / height at WD 5 mm (mm): 0.8 / 17 / 14; 6 / 16 / 13; 12 / 13.9 / 10.9; 20 / 11 / 8; 30 / 7.6 / 4.6
FOVMin. 0.8 x 17mm; Typical 6 x 16mm; Max 30 x 7.6mm
ViewOuter view

Optics

Image circledia. 6.6 mm
Field of view (diameter x height, WD 2 mm)min. 0.8 x 17 mm; typical 6 x 16 mm; max 30 x 7.6 mm
ApertureF1.6~16

Sensor and imaging

Sensor2/3"

Light

Wavelength420-680 nm

Mechanical

MountC
Sizeflange dia. 96.1 mm, length 109 mm
FOV (diameter x height, WD=2 mm)Min. 0.8 x 17 mm; Typical 6 x 16 mm; Max 30 x 7.6 mm
Object height at WD 2 mm / 5 mm (by object diameter)0.8 mm: 17 / 14; 6 mm: 16 / 13; 12 mm: 13.9 / 10.9; 20 mm: 11 / 8; 30 mm: 7.6 / 4.6 (mm)
Object height by diameter at WD 2 mm / WD 5 mm (mm)0.8: 17 / 14; 6: 16 / 13; 12: 13.9 / 10.9; 20: 11 / 8; 30: 7.6 / 4.6
Shipping weight (estimated)0.94 kg
