360° inspection lenses

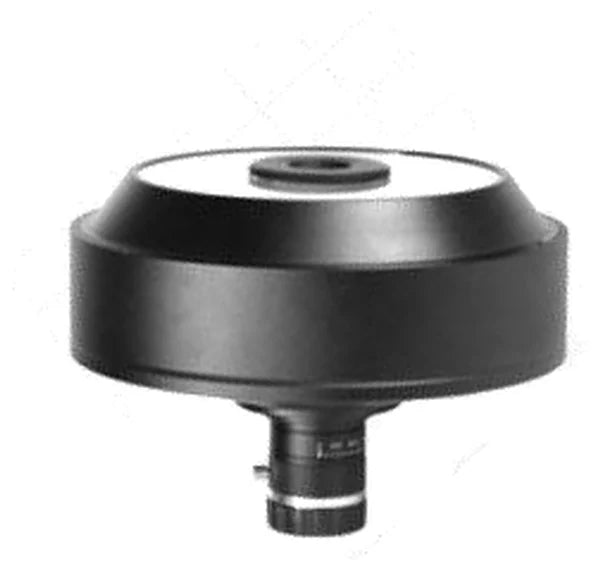

1/1.8", 5 MP, C-mount 360° Inspection Lens, F8.0-16 (LS-PCL-0018)

Model LS-PCL-0018

MountC-mount
Sensor1/1.8"
Working distance9-45.4 mm
ApertureF8.0-16
Resolution5MP
Field of view7.5 x 5.3 (min), 30 x 25 (max) mm

$899.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

1/1.8", 5 MP, C-mount 360° Inspection Lens. Compact 5 megapixel lenses that image the outside wall of a part through 360 degrees at various working distances, for inspecting bottle caps, containers, screw threads, plastic injection, die-cast and machined parts. At a glance: working distance 9-45.4 mm; format 1/1.8"; resolution 5MP; aperture F8.0-16; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-PCL-0018
Format	1/1.8"
Viewing angle	18~36 deg
Inspection table	Diameter / height / WD / F# (mm): 7.5 / 5.3 / 45.4 / 16; 10 / 7.7 / 41.5 / 16; 15 / 11.86 / 33.8 / 12; 20 / 16.5 / 26.2 / 12; 25 / 20.7 / 18.5 / 10; 30 / 25 / 9 / 8
W.D.	9~45.4 mm
C% definition	C % = Top view Dia.(px) / Detector short side (px) x100

Optics

Image circle	dia. 5.32 mm
Aperture	F8.0-16
Working distance	9-45.4 mm
Field of view (object diameter x height)	7.5 x 5.3 (min), 30 x 25 (max) mm
Typical field of view (diameter x height)	15 x 11.86 mm
Object diameter / height / WD / F-number (mm)	7.5 / 5.3 / 45.4 / F16; 10 / 7.7 / 41.5 / F16; 15 / 11.86 / 33.8 / F12; 20 / 16.5 / 26.2 / F12; 25 / 20.7 / 18.5 / F10; 30 / 25 / 9 / F8
Field of view (diameter x height)	7.5 x 5.3 mm min, 15 x 11.86 mm typical, 30 x 25 mm max

Sensor and imaging

Resolution	5MP

Light

Wavelength range	450-650 nm
Wavelength	450-650 nm

Mechanical

Mount	C
FOV (diameter x height, mm)	7.5 x 5.3 min / 30 x 25 max
Size	dia. 136.9 x 79.14 mm
Test range (diameter / height / WD / F# / C%, mm)	7.5 / 5.3 / 45.4 / 16 / 12; 10 / 7.7 / 41.5 / 16 / 17; 15 / 11.86 / 33.8 / 12 / 27; 20 / 16.5 / 26.2 / 12 / 37; 25 / 20.7 / 18.5 / 10 / 51; 30 / 25 / 9 / 8 / 62
Shipping weight (estimated)	0.94 kg
