360° inspection lenses

1/2", C-mount 360° Inspection Lens, WD 12-66 mm (LS-PCL-0004)

Model LS-PCL-0004

MountC-mount
Sensor1/2"
Working distance12-66 mm
ApertureF8.0-22

$899.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

1/2", C-mount 360° Inspection Lens. 1/2" pericentric 360-degree outer view lens for top view plus side view of parts 5-41 mm in diameter at 66-13 mm working distance; matches all industrial cameras. At a glance: working distance 12-66 mm; format 1/2"; aperture F8.0-22; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-PCL-0004
Detector type	1/2"
Format	1/2"
Inspection table	Diameter / height / WD / F# (mm): 5 / 5 / 66 / F12; 10 / 10 / 54 / F12; 15 / 10 / 47 / F8.0; 20 / 10 / 41 / F8.0; 25 / 10 / 35 / F8.0; 30 / 10 / 29 / F8.0; 35 / 10 / 22 / F8.0; 41 / 10 / 15 / F8.0
Type	Pericentric (Outer View)

Optics

Working distance	12-66 mm
F/#	8.0-22
Field of view (diameter x height)	min 5 x 5 mm, typical 20 x 20 mm, max 40 x 13 mm
Aperture	F8.0-22

Light

Wavelength	450-650 nm

Mechanical

FOV (diameter x height)	Min. 5 x 5 mm; Typical 20 x 20 mm; Max 40 x 13 mm
Mount	C

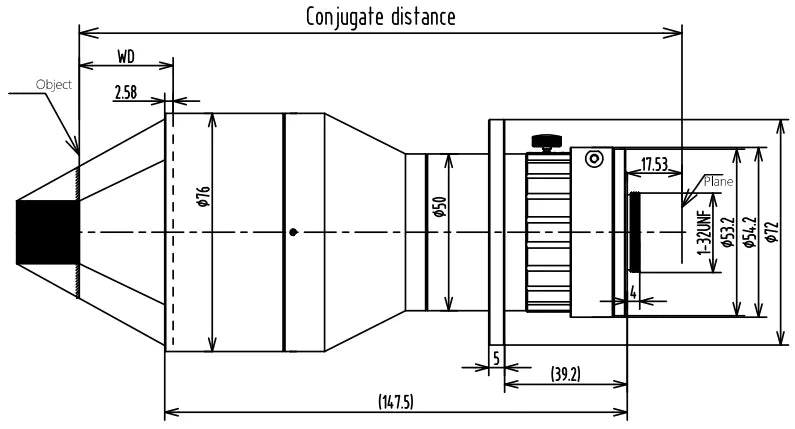

Size	dia. 76 (front) / dia. 72 (flange) x 147.5 mm
Diameter / height / WD / F# (mm)	5/5/66/F12; 10/10/54/F12; 15/10/47/F8; 20/10/41/F8; 25/10/35/F8; 30/10/29/F8; 35/10/22/F8; 41/10/15/F8
Height 20 mm: diameter / WD	10/44; 15/37; 20/31; 25/25; 30/19; 35/12; 41 (height 13)/12
Height 30 mm: diameter / WD	10/34; 15/27; 20/21; 25/15; 30 (height 27)/12; 35 (height 20)/12; 41 (height 13)/12
Object diameter	5-41 mm
Shipping weight (estimated)	0.94 kg
