1/1.8", C-mount 360° Inspection Lens, 450~650 nm visible (LS-PCL-0014)
  • 1/1.8", C-mount 360° Inspection Lens, 450~650 nm visible (LS-PCL-0014)

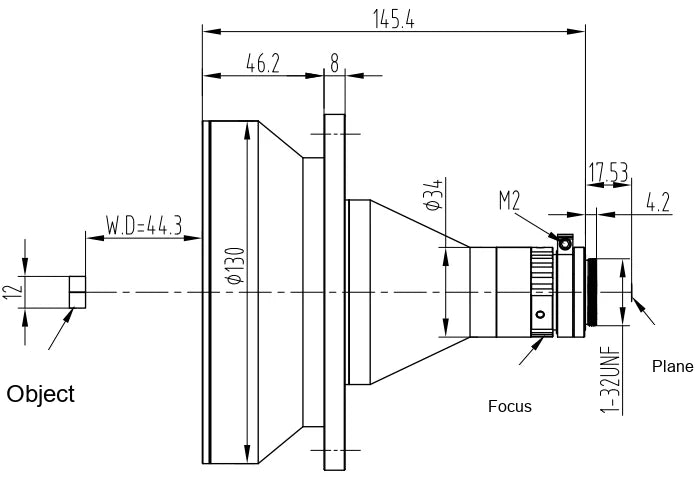

  • LS-PCL-0014 dimensions (mm)

360° inspection lenses

1/1.8", C-mount 360° Inspection Lens, 450~650 nm visible (LS-PCL-0014)

Model LS-PCL-0014

  • MountC-mount
  • Sensor1/1.8"
  • Working distance44.3 mm
  • ApertureF8
$909.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1/1.8", C-mount 360° Inspection Lens, 450~650 nm visible (LS-PCL-0014)LS-PCL-0014

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1/1.8", C-mount 360° Inspection Lens. Poly View multi-angle reflection lens with 8 mirrors for 360-degree outer-wall imaging of tiny cylindrical objects under 15 mm in diameter, with F8.0 aperture and manual focus. At a glance: working distance 44.3 mm; format 1/1.8"; aperture F8; mount C; size dia. 135 x 145.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-PCL-0014
Format1/1.8"
Mirrors8

Optics

Working distance44.3 mm
ApertureF8
Focusmanual

Light

Wavelength450~650 nm visible

Mechanical

Object diameter< dia. 15 mm
MountC
Sizedia. 135 x 145.4 mm
Shipping weight (estimated)0.94 kg
