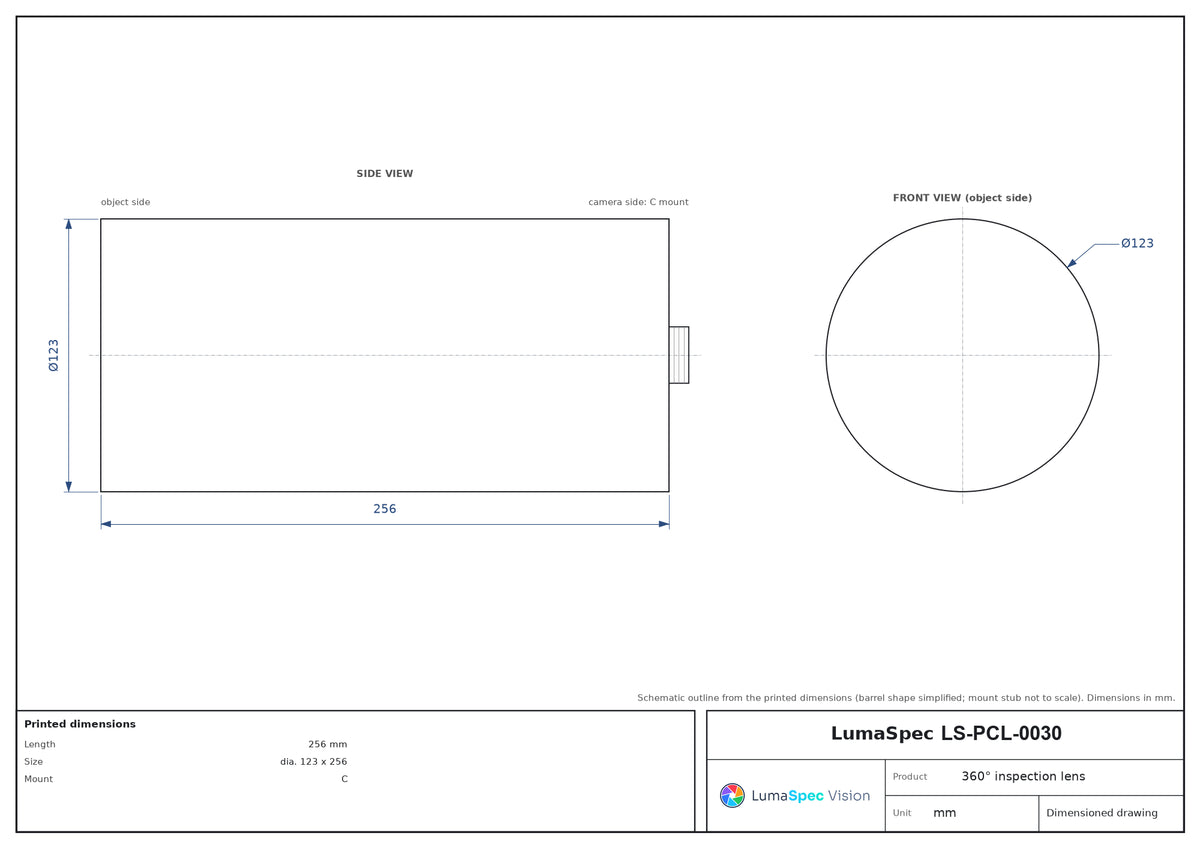

  • LS-PCL-0030 dimensions (mm)

360° inspection lenses

2/3", C-mount 360° Inspection Lens, WD 1.5-5 mm, F6.5, 400~680 nm (LS-PCL-0030)

Model LS-PCL-0030

  • MountC-mount
  • Sensor2/3"
  • Working distance1.5-5 mm
  • ApertureF6.5
$919.00

Ships in 2-3 weeks

0.83 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2/3", C-mount 360° Inspection Lens, WD 1.5-5 mm, F6.5, 400~680 nm (LS-PCL-0030)LS-PCL-0030

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2/3", C-mount 360° Inspection Lens. Optical module of a bi-telecentric lens, LED ring lighting and six prisms that images the top and sides of a small part at the same magnification, for 1-10 mm objects such as tobacco air holes, bottles, caps, tubes and containers. At a glance: working distance 1.5-5 mm; format 2/3"; aperture F6.5; mount C; size dia. 123 x 256.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-PCL-0030
Format2/3"

Optics

MTF30>135 lp/mm
Working distance1.5-5 mm
ApertureF6.5

Sensor and imaging

Support sensor2/3"

Light

Wavelength range400-600 nm
Illuminator voltageDC 24 V
Illuminator power18 W
Wavelength400~680 nm
Illumination voltage24 V DC
Illumination power18 W

Mechanical

Sizedia. 123 x 256
MountC
Weight520 g
Max. inspection height by screw threadM1.0: 1.5; M1.2: 1.75; M1.7: 1.8; M2.0: 2.4; M2.5: 2.7; M3: 4; M4: 4.9; M5: 5; M6: 6; M8: 5; M10: 4.5 mm
Max inspection height by screw thread (mm)M1.0: 1.5; M1.2: 1.75; M1.7: 1.8; M2.0: 2.4; M2.5: 2.7; M3: 4; M4: 4.9; M5: 5; M6: 6; M8: 5; M10: 4.5
Diameter123 mm
Length256 mm
Max inspection heightMax inspection height by screw thread: M1.0 / 1.5 mm; M1.2 / 1.75 mm; M1.7 / 1.8 mm; M2.0 / 2.4 mm; M2.5 / 2.7 mm; M3 / 4 mm; M4 / 4.9 mm; M5 / 5 mm; M6 / 6 mm; M8 / 5 mm; M10 / 4.5 mm
Shipping weight (estimated)0.83 kg
