16 mm, 2/3", C-mount 360° Inspection Lens (LS-PCL-0031)
Model LS-PCL-0031
- Focal length16 mm
- MountC-mount
- Sensor2/3"
- ApertureF6.0-16
$929.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm, 2/3", C-mount 360° Inspection Lens. A 16 mm poly-view multi-angle reflection lens with built-in lighting for 2/3" sensors that images in 360 degrees the outer wall of objects 5-34 mm in diameter or the inner wall of objects 39-70 mm in diameter, for bottles, caps, tubes and fasteners. At a glance: focal length 16 mm; format 2/3"; aperture F6.0-16; mount C; tv distortion <0.1%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PCL-0031 |
|---|---|
| Format | 2/3" |
| T.T.L. | 233.6 mm |
| Lighting | built-in (cable 400 +/-20 mm) |
| Type | Poly View (Outer View) |
| View | Inner / outer view |
Optics
| Focal length | 16 mm |
|---|---|
| Working distance | 16.9 mm (outer view) or 58.86 mm (inner view) |
| Aperture | F6.0-16 |
| TV distortion | <0.1% |
| TTL | 233.6 mm |
Interfaces and I/O
| Lighting cable | 400 ±20 mm |
|---|
Mechanical
| Mount | C |
|---|---|
| Outer view objects (dia.: max height) | 5: <39.0; 10: <36.1; 15: <33.17; 20: <30.22; 25: <27.3; 30: <24.38; 34: <22.0 mm (WD 16.9 mm) |
| Inner view objects (dia.: max height) | 39: <22.9; 45: <20.12; 50: <17.69; 55: <15.26; 60: <12.84; 65: <10.41; 70: <8.0 mm (WD 58.86 mm) |

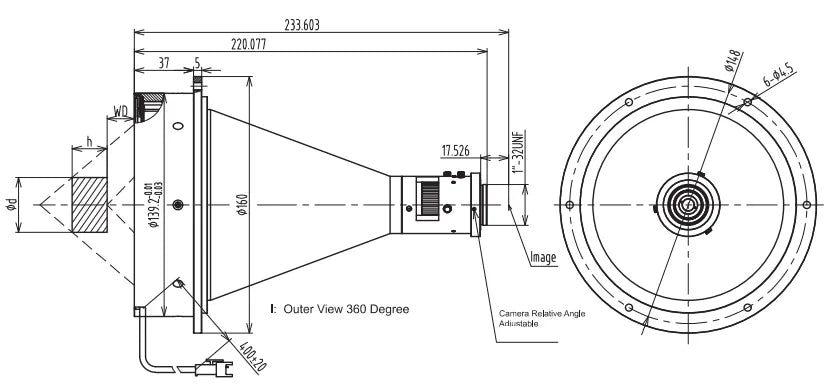

| Size | dia. 160 x 233.6 mm |
| Outer view object diameter | 5-34 mm (height <39.0 to <22.0 mm) |
| Inner view object diameter | 39-70 mm (height <22.9 to <8.0 mm) |
| Shipping weight (estimated) | 0.94 kg |
