360° inspection lenses

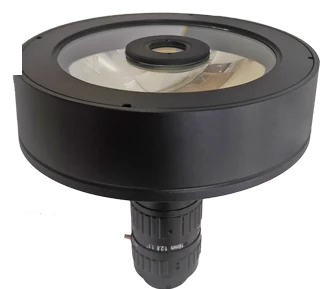

1.1", C-mount 360° Inspection Lens (LS-PCL-0022)
Model LS-PCL-0022
- MountC-mount
- Sensor1.1"
- Working distance5.13-65.13 mm
- ApertureF16
- Field of viewmin 42 x 39.7 mm, max 50.2 x 80.37 mm
$939.00
Ships in 2-3 weeks
2.9 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.1", C-mount 360° Inspection Lens. Catadioptric 360-degree outer view lens for 1.1" (and smaller) sensors, imaging the outer wall of objects 42-50 mm in diameter and 39-80 mm high, for sorting machinery; pharmacy, bottles and tubes. Net weight 2 kg; made in China. At a glance: working distance 5.13-65.13 mm; sensor size 1.1"; aperture F16; mount C; field of view min 42 x 39.7 mm, max 50.2 x 80.37 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PCL-0022 |
|---|---|
| F# | 16 |
| Format | 1.1" |
| Inspection table | Diameter / height / WD (mm), F16: 42 / 39.7 / 65.13; 43.4 / 47.8 / 55.13; 44.2 / 51.16 / 50.13; 50.2 / 80.37 / 5.13 |
Optics
| Image circle | dia. 8.8 |
|---|---|
| Working distance | 5.13-65.13 mm |
| Field of view (diameter x height) | min 42 x 39.7 mm, max 50.2 x 80.37 mm |
| Aperture | F16 |
Sensor and imaging
| Sensor size | 1.1" |
|---|
Light
| Wavelength | 450-650 nm |
|---|
Mechanical
| FOV (diameter x height) | Min. 42 x 39.7 mm; Max 50.2 x 80.37 mm |
|---|---|
| Mount | C |
| Object diameter / height / WD / F No. / r% (mm) | 42 / 39.7 / 65.13 / 16 / 68; 43.4 / 47.8 / 55.13 / 16 / 67; 44.2 / 51.16 / 50.13 / 16 / 64; 50.2 / 80.37 / 5.13 / 16 / 61 |

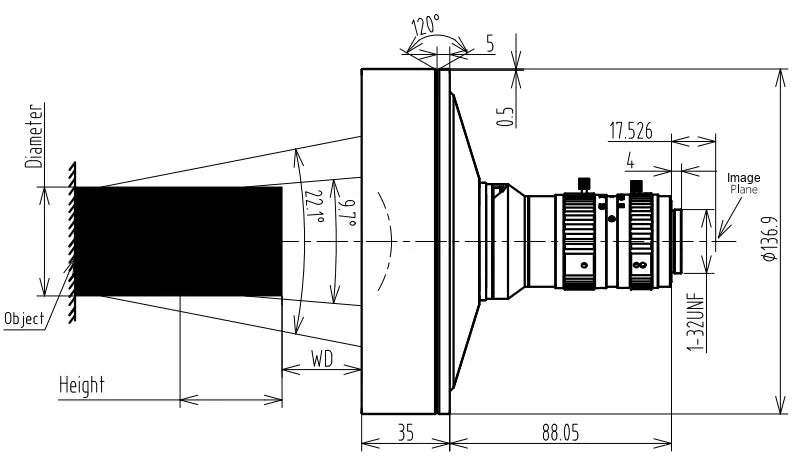

| Size | dia. 136.9 x 123.05 mm (35 + 88.05) |
| Net weight | 2 kg |
| Weight | 2 kg |
| Shipping weight (estimated) | 2.90 kg |
