360° inspection lenses
360° Inspection Lens LS-PCL-0027
Model LS-PCL-0027
- Inspection diameterwithin 40 mm

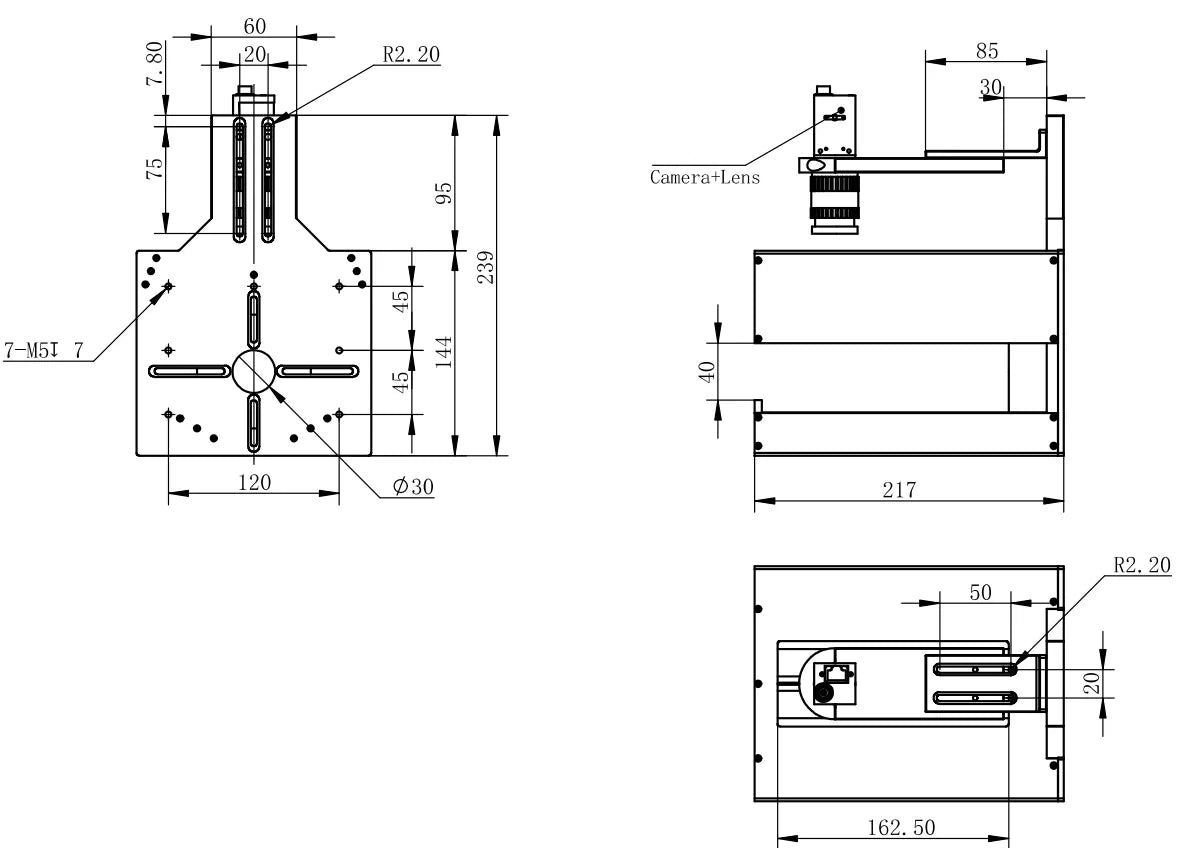

- Drawing numberH240Q165-CS
- Size239 x 217 x 162.5 mm
- Extension cableHLSM3V24L-CS# (# = length, optional)
Quoted price: add to quote for lead time and volume pricing.
Built to your object's diameter and height: we confirm the configuration and lead time with your quote.
Ships in 2-3 weeks
1.36 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
360° Inspection Lens LS-PCL-0027. 360-degree outer view inspection modules for objects on a production flow line: side-view outer wall, multi-angle imaging. LS-PCL-0001 handles objects up to 80 mm diameter and 250 mm high; LS-PCL-0027 handles objects up to 40 mm diameter. Camera and lens are not included. At a glance: size 239 x 217 x 162.5 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PCL-0027 |
|---|---|
| Drawing number | H240Q165-CS |
| Description | Combined light (module), camera + lens not included |
| Light | White 7.2 W, blue 7.2 W, red 5 W, 24 V; 2-pin SMR terminal |
| Through hole | dia. 30; object channel 40 mm |
Interfaces and I/O
| Extension cable | HLSM3V24L-CS# (# = length, optional) |
|---|
Mechanical
| Inspection diameter | within 40 mm |
|---|---|
| Size | 239 x 217 x 162.5 mm |
| Weight | 0.897 kg |
| Shipping weight (estimated) | 1.36 kg |
Photo shows a representative model of this series; see the specifications for this model.
Other models in the 360° Inspection lenses (LS-PCL-S01) series
See all 41 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-PCL-0007 | Outer view | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0008 | Outer view, top + side | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0013 | 1/1.8", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0014 | 1/1.8", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0015 | 1", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0016 | Outer view | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0025 | 1/3", 5 MP, C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0026 | 2/3", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0021 | 1/3", 5 MP, C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0005 | 2/3", C-mount | $919.00 | Ships in 2-3 weeks | View |
| LS-PCL-0002 | 2/3", 20 MP, C-mount | $919.00 | Ships in 2-3 weeks | View |
| LS-PCL-0023 | 2/3", C-mount | $919.00 | Ships in 2-3 weeks | View |
| LS-PCL-0028 | 1/2", C-mount | $919.00 | Ships in 2-3 weeks | View |
| LS-PCL-0029 | 2/3", C-mount | $919.00 | Ships in 2-3 weeks | View |
| LS-PCL-0030 | 2/3", C-mount | $919.00 | Ships in 2-3 weeks | View |
| LS-PCL-0031 | 16 mm, 2/3", C-mount | $929.00 | Ships in 2-3 weeks | View |
| LS-PCL-0022 | 1.1", C-mount | $939.00 | Ships in 2-3 weeks | View |
| LS-PCL-0009 | 1/2", C-mount | $959.00 | Ships in 2-3 weeks | View |
| LS-PCL-0024 | 1.1", 12 MP, C-mount | $959.00 | Ships in 2-3 weeks | View |
| LS-PCL-0032 | 2/3", M58-mount | $969.00 | Ships in 2-3 weeks | View |
| LS-PCL-0033 | M58-mount | $969.00 | Ships in 2-3 weeks | View |
| LS-PCL-0011 | 1/2", C-mount | $1,009.00 | Ships in 2-3 weeks | View |
| LS-PCL-0010 | 1/2", C-mount | $1,039.00 | Ships in 2-3 weeks | View |
| LS-PCL-0001 | within 80 mm · 250 mm | $1,119.00 Quote | Ships in 2-3 weeks | View |
