360° inspection lenses

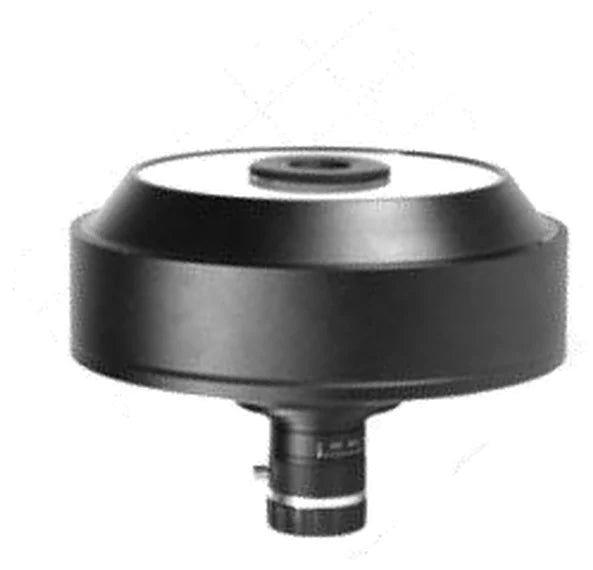

2/3", 5 MP, C-mount 360° Inspection Lens, WD 10-43 mm (LS-PCL-0006)

Model LS-PCL-0006

MountC-mount
Sensor2/3"
Working distance10-43 mm
ApertureF7-F16
Resolution5 MP

$909.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

2/3", 5 MP, C-mount 360° Inspection Lens. Catadioptric 360-degree outer-wall surface imaging lens with low distortion and short working distance, for objects 7-35 mm in diameter. At a glance: working distance 10-43 mm; sensor format 2/3"; resolution 5 MP; aperture F7-F16; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-PCL-0006
Format	2/3", 1/1.8", 1/3"; >1/2"
Inspection table	Diameter / height / WD / F# (mm): 7 / 5 / 44 / 16; 10 / 8 / 43 / 14; 15 / 12 / 35 / 10; 20 / 16 / 25 / 10; 25 / 19 / 17 / 10; 35 / 28 / 8 / 7
Detector type	>1/2"
Type	Catadioptric (Outer View)
Advantages	Compact & cheap
Application	Cylindrical objects

Optics

Working distance	10-43 mm
Aperture	F7-F16

Sensor and imaging

Resolution	5 MP
Sensor format	2/3"

Mechanical

Mount	C
Object diameter	7-35 mm

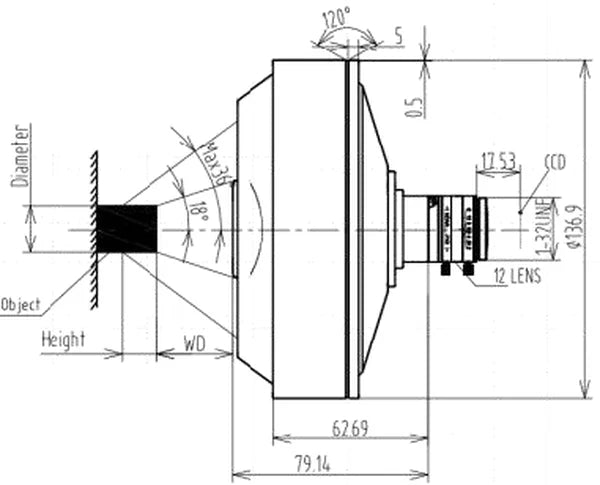

Size	dia. 139 x 113.8 mm
Test range (diameter / height / WD / F#, mm)	7/5/44/16; 10/8/43/14; 15/12/35/10; 20/16/25/10; 25/19/17/10; 35/28/8/7
Max image height	dia. 6.6
Object height	5-28 mm
Shipping weight (estimated)	0.94 kg

Downloads

Datasheet (PDF)LS-PCL-0006 · 601 KB

Features

Outer-wall 360-degree surface imaging
Multiple sensor formats: 2/3", 1/1.8", 1/3"
High resolution 5 MP
Short working distance
360-degree outer-wall surface imaging
Several sensor sizes (text: 2/3", 1/1.8", 1/3")
High resolution 5.0 megapixel
360° out-wall inspection

Applications

Pharmacy
Bottles (spring-water bottle and cap inspection)
Tubes
Bottles and caps
Medical container, cap and screw out-wall inspection
