360° inspection lenses
1", C-mount 360° Inspection Lens (LS-PCL-0041)
Model LS-PCL-0041
- MountC-mount
- Sensor1"
- ResolutionMegapixel
- Sensor format1"
$899.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1", C-mount 360° Inspection Lens. 360-degree inner-wall view lens for sensors up to 1", for bores 8.5-120 mm in diameter and 10-190 mm deep. At a glance: format 1"; resolution Megapixel; mount C; distortion < -17%; size dia. 54 x 127.2 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PCL-0041 |
|---|---|
| Format | 1" |
| CRA | -9.2° |
Optics
| Image circle | dia. 9.6 |
|---|---|
| Relative illumination | 30% |
| Distortion | < -17% |
| Inspection range (diameter / height / sensor: working distance) | 8.5~120 mm / 10~190 mm / 1/2": 9-62 mm; 11~120 mm / 10~190 mm / 2/3": 9-62 mm; 15~120 mm / 10~190 mm / 1": 8-35 mm |
Sensor and imaging
| Resolution | Megapixel |
|---|
Light
| Wavelength | 450~700 |
|---|
Environment and compliance
| Operating temperature | -20℃ ~ +65℃ |
|---|
Mechanical

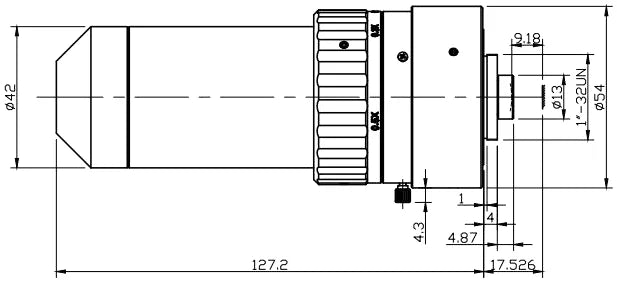

| Size | dia. 54 x 127.2 mm |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.94 kg |
Photo shows a related 360° inspection lens of this range; see the specifications for this model.
