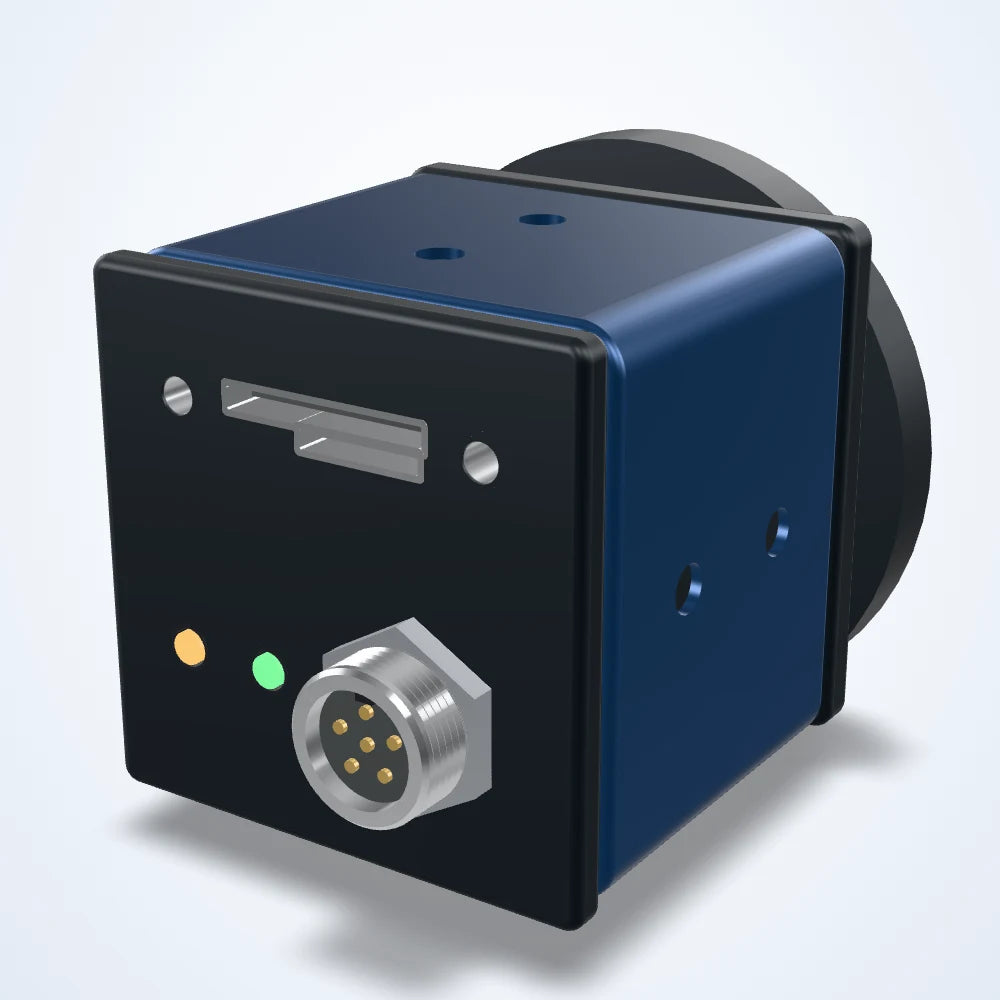

5.3 MP USB3 area scan camera, XGS5000, 2/3" global shutter, 43 fps (LS-CMR-0141)

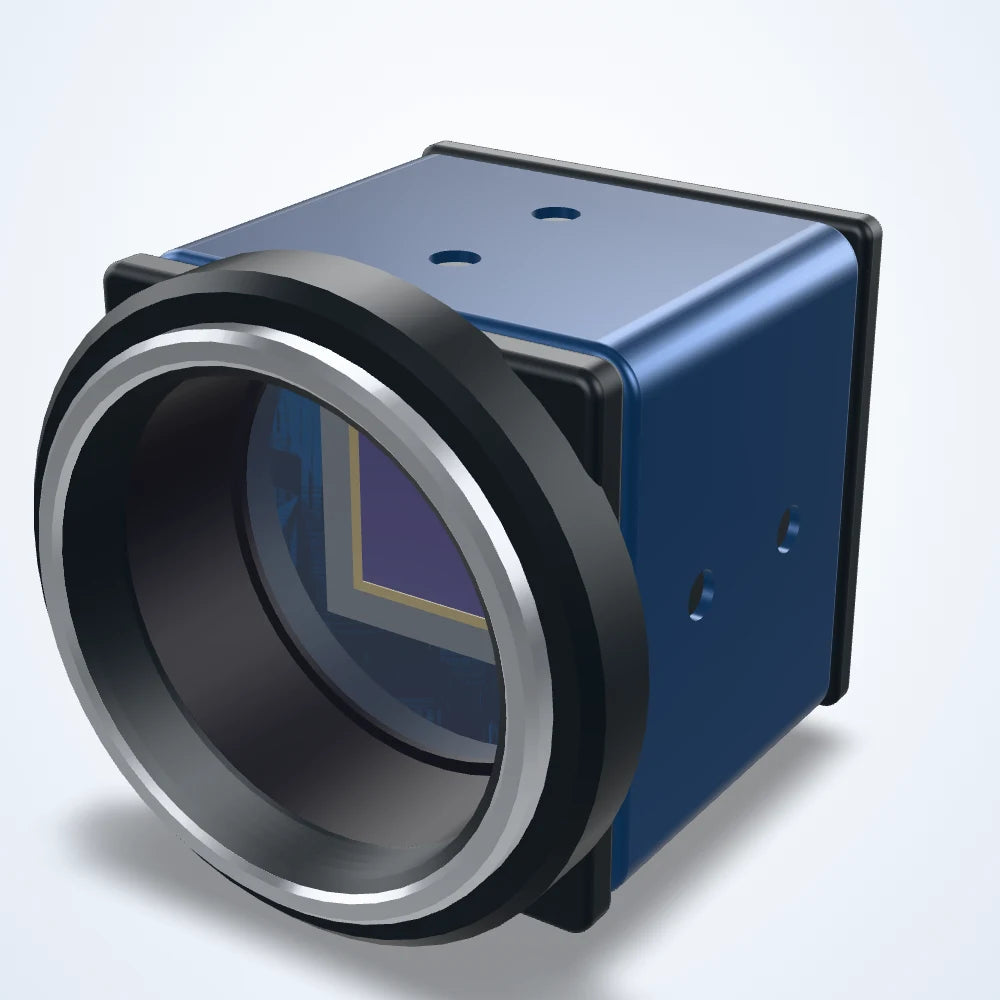

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

5.3 MP USB3 area scan camera, XGS5000, 2/3" global shutter, 43 fps (LS-CMR-0141)

Model LS-CMR-0141-M

Resolution2592 px x 2048 px
Sensor2/3"
InterfaceUSB 3.0
Speed43 fps
Lens mountC-mount
Pixel size3.2 μm x 3.2 μm

$493.00

Ships in 3-4 weeks

0.23 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-CMR-0141: resolution 2592 px x 2048 px, sensor type CMOS, sensor size 2/3", max. frame rate 43 fps.

5.3 MP area scan camera for inspection, measurement and guidance on the production line. XGS5000 CMOS sensor (2/3"); 2592 x 2048 pixels of 3.2 μm; up to 43 frames per second; global shutter; USB3 interface; C-mount lens mount; mono or colour version.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0141

Sensor and imaging

Resolution	2592 px x 2048 px
Pixel size	3.2 μm x 3.2 μm
Max. frame rate	43 fps
Sensor make	Onsemi
Sensor model	XGS5000
Shutter	Global Shutter
Sensor size	2/3"
Sensor type	CMOS
Dynamic range	64.0 dB
SNR	40.0 dB
Pixel bit depth	8 / 10 bits

Interfaces and I/O

Data interface	USB 3.0
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30 to 50 °C
Storage temperature	-30 to 80 °C
Certification	USB3 Vision and GenICam As declared by the manufacturer

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Soft Trigger, Hardware Trigger, Free Run
Power supply	USB3.0 power supply / 3.2 W

Mechanical

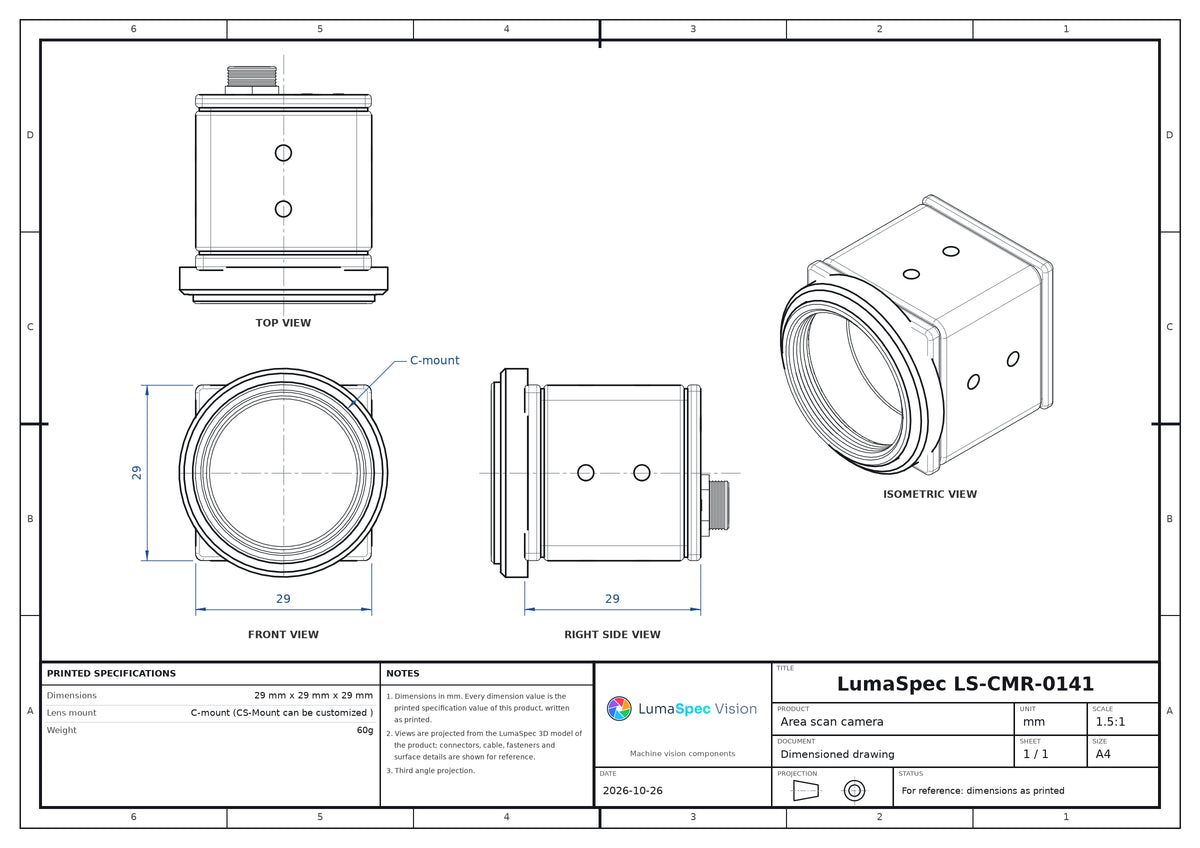

Dimensions	29 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized )
Weight	60 g

Engineering data

Field of view and resolution with the LS-CMR-0141

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area8.29 × 6.55 mm2/3" optical format

Lens image circle needed≥ Ø 10.6 mmC-mount

Pixel pitch3.2 µm2592 x 2048 px

Image data at max frame rate228 MB/sCalculated: 43 fps × 2592 × 2048 px at 8 bit · USB3 carries 625 MB/s nominal

With a 16 mm lens at 500 mm259 × 205 mm0.1 mm per pixel

Dynamic range64.0 dB

SNR40.0 dB

ShutterGlobal

Weight60 g

Field of view (width × height) and object pixel size by lens focal length and working distance
Lens	At 300 mm	At 500 mm	At 1000 mm
8 mm	311 × 246 mm0.12 mm per pixel	518 × 409 mm0.2 mm per pixel	1036 × 819 mm0.4 mm per pixel
12 mm	207 × 164 mm0.08 mm per pixel	345 × 273 mm0.133 mm per pixel	691 × 546 mm0.267 mm per pixel
16 mm	155 × 123 mm0.06 mm per pixel	259 × 205 mm0.1 mm per pixel	518 × 409 mm0.2 mm per pixel
25 mm	99.5 × 78.6 mm0.038 mm per pixel	166 × 131 mm0.064 mm per pixel	332 × 262 mm0.128 mm per pixel
35 mm	71.1 × 56.1 mm0.027 mm per pixel	118 × 93.6 mm0.046 mm per pixel	237 × 187 mm0.091 mm per pixel
50 mm	49.7 × 39.3 mm0.019 mm per pixel	82.9 × 65.5 mm0.032 mm per pixel	166 × 131 mm0.064 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
