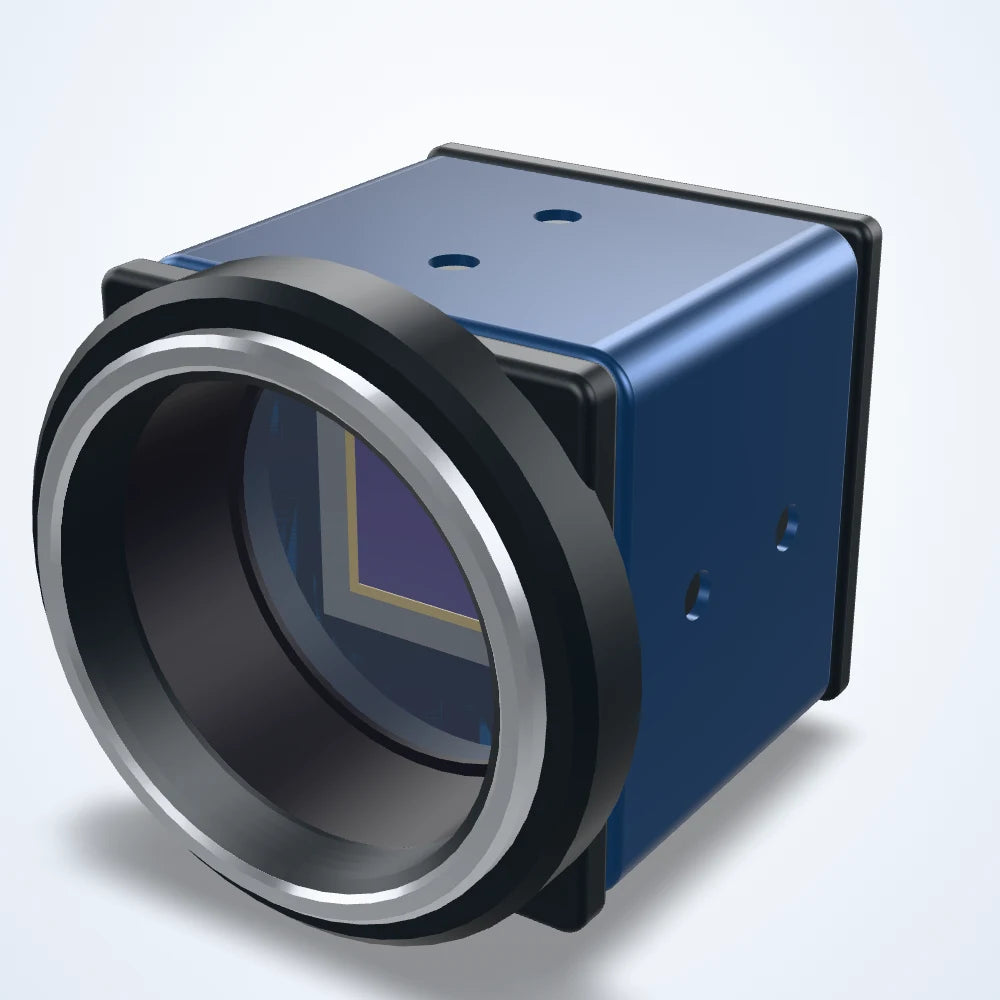

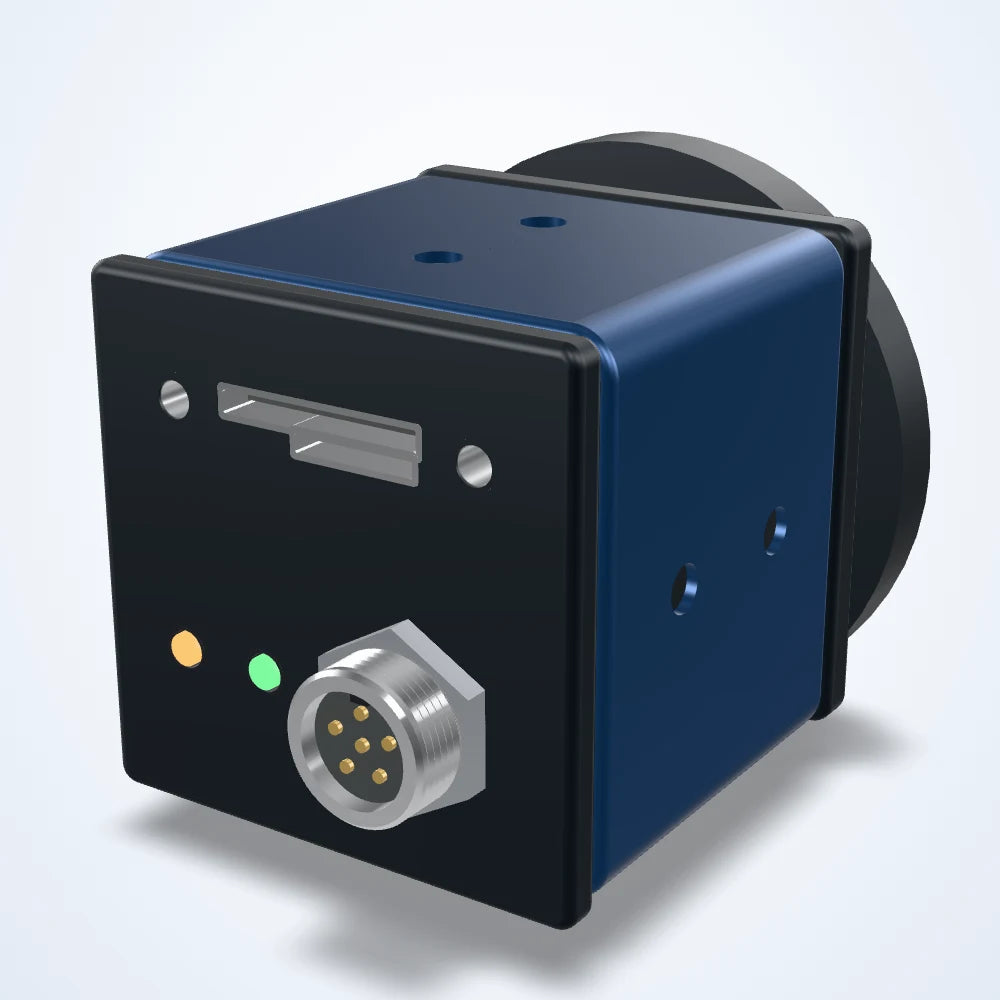

1.6 MP USB3 area scan camera, IMX273, 1/2.9" global shutter, 249 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1.6 MP USB3 area scan camera, IMX273, 1/2.9" global shutter, 249 fps (LS-CMR-0127)

Model LS-CMR-0127

Resolution1440 px x 1080 px
Sensor1/2.9"
InterfaceUSB3.0
Speed249 fps
Lens mountC-mount
Pixel size3.45 μm x 3.45 μm

$415.00

Ships in 3-4 weeks

0.26 kg shipping weight

Not available in the United States. Available for delivery to other countries.

1.6 MP area scan camera for inspection, measurement and guidance on the production line. IMX273 CMOS sensor (1/2.9"); 1440 x 1080 pixels of 3.45 μm; up to 249 frames per second; global shutter; USB3 interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0127

Sensor and imaging

Resolution	1440 px x 1080 px
Pixel size	3.45 μm x 3.45 μm
Max. frame rate	249 fps
Sensor make	Sony
Sensor model	IMX 273
Shutter	Global Shutter
Sensor size	1/2.9"
Sensor type	CMOS
Dynamic range	73 dB
SNR	43 dB
Binning	off, 1×2, 2×1, 2×2, 1×4, 4×1, 2×4, 4×2, 4×4, 3×3
Pixel bit depth	10 bit

Interfaces and I/O

Data interface	USB3.0
Digital I/O	6-pin Hirose connector: 1 opto-isolated input, 1 opto-isolated output, 1 configurable non-isolated input/output

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	USB3 Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Soft Trigger,Hardware Trigger,Free Run
Power supply	USB or 9-24 V DC (via Hirose)

Mechanical

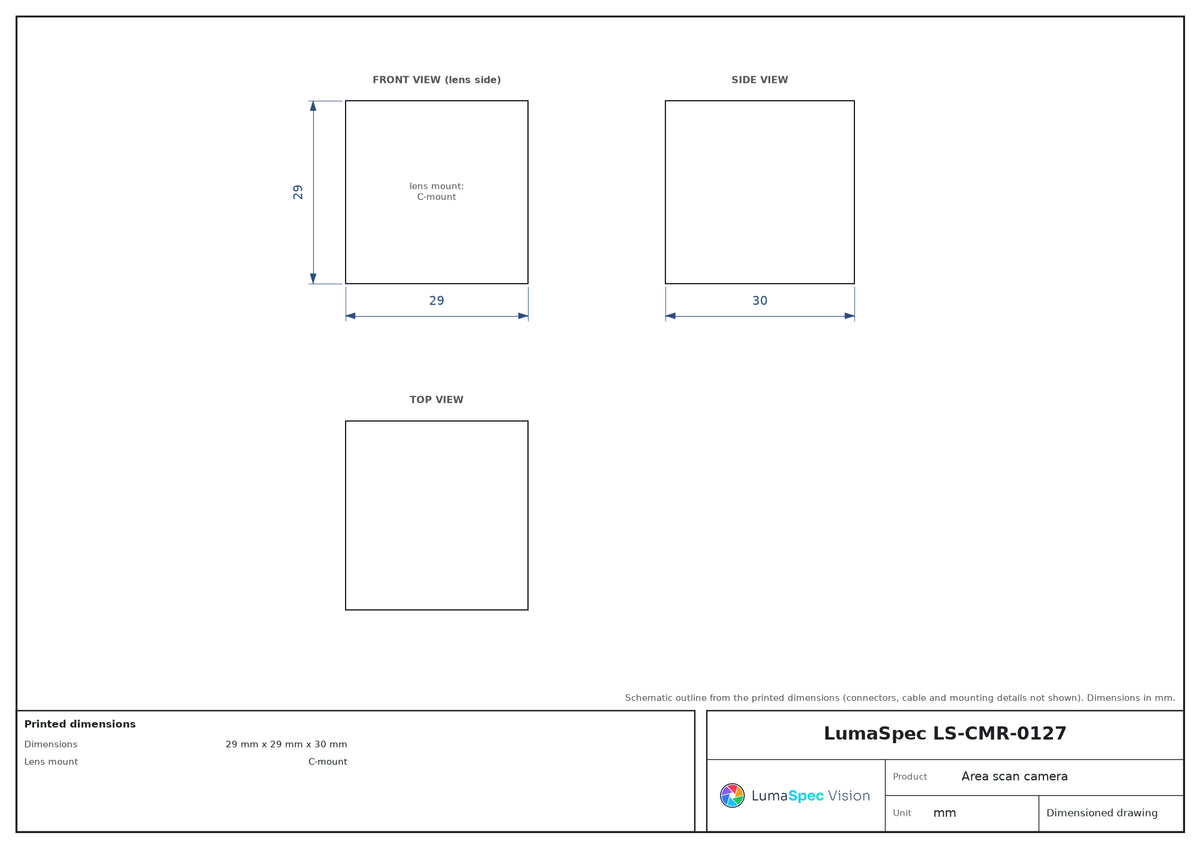

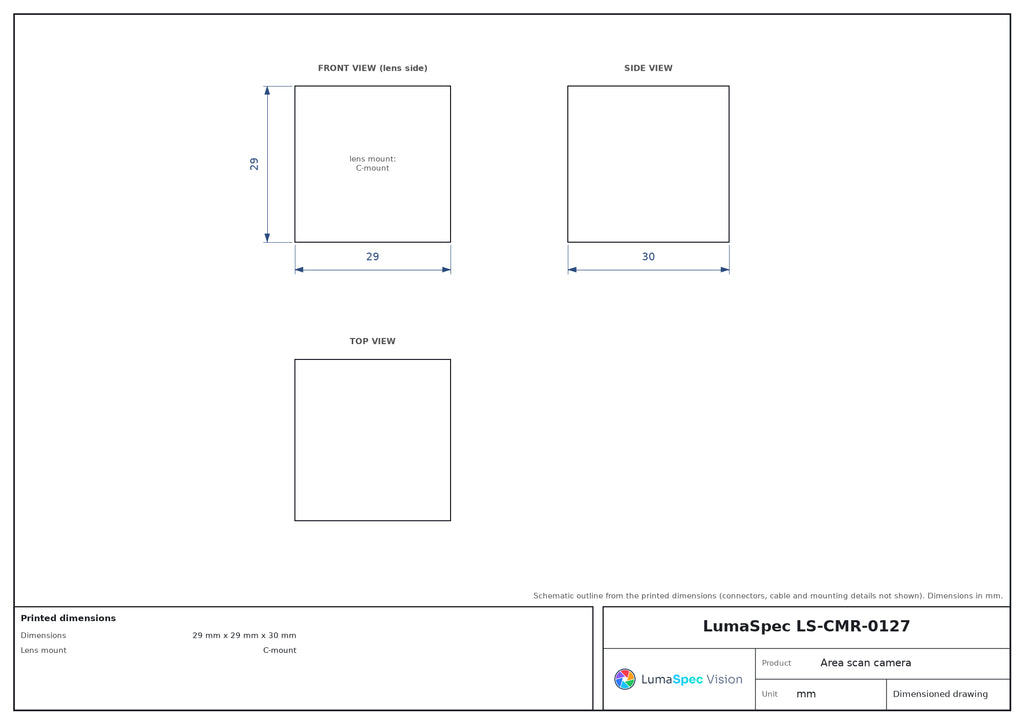

Dimensions	29 mm x 29 mm x 30 mm
Lens mount	C-mount
Weight	85g
