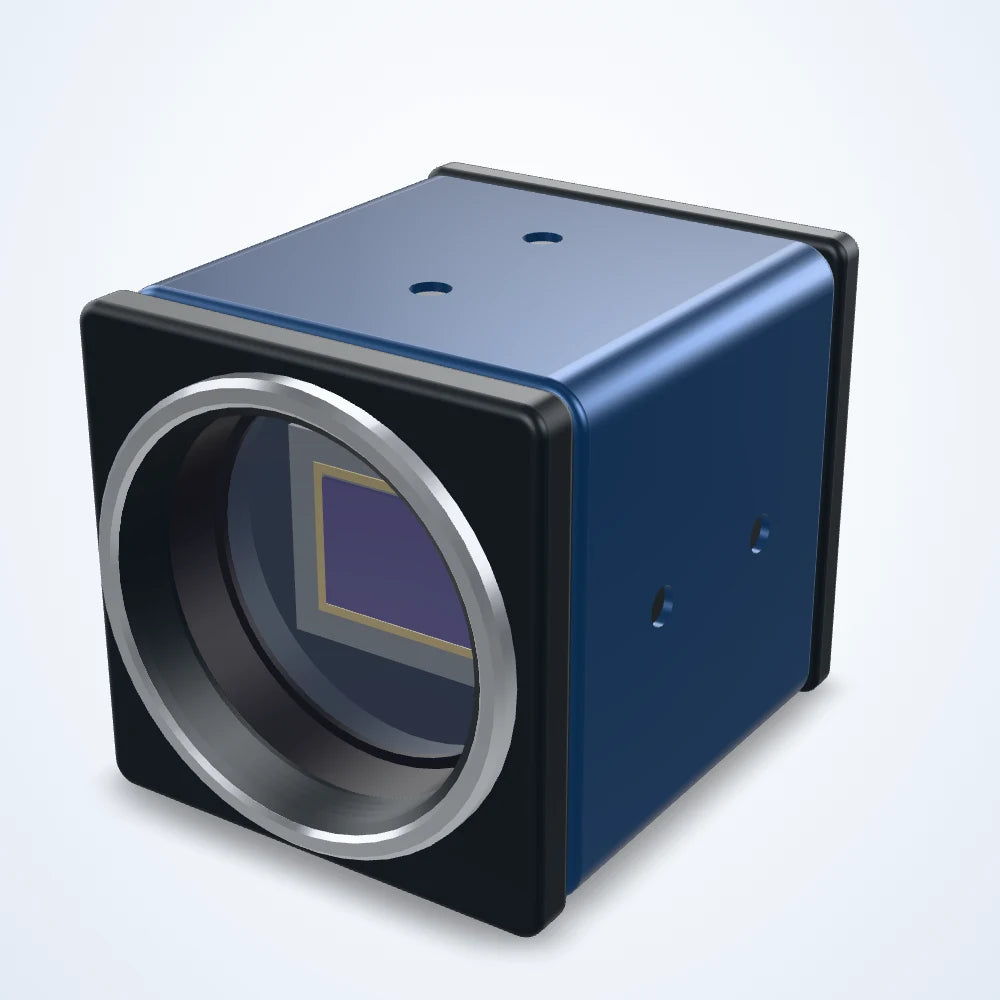

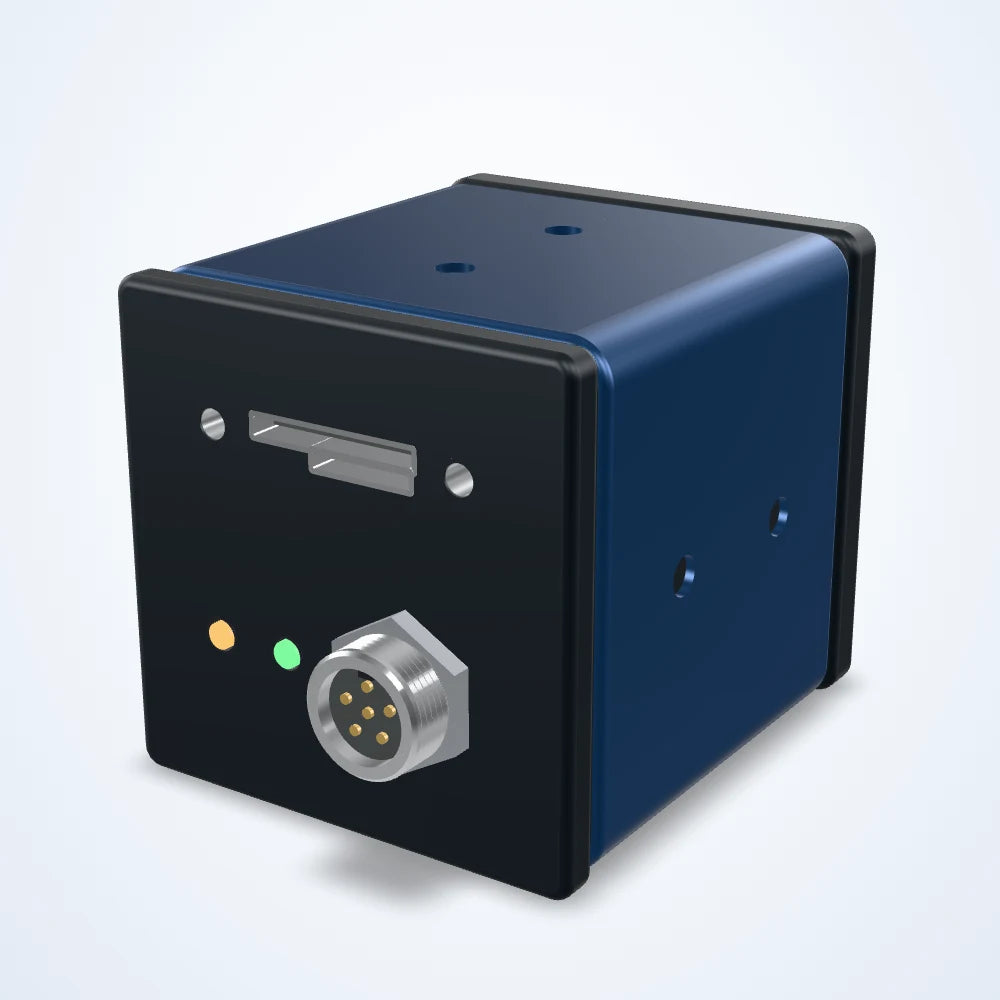

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
1.6 MP USB3 area scan camera, IMX273, 1/2.9" global shutter, 250 fps (LS-CMR-0128)
Model LS-CMR-0128
- Resolution1440 × 1080 (1.6MP)
- Sensor1/2.9"
- InterfaceUSB 3.0
- Speed249 fps
- Pixel size3.45 μm
$340.00
Ships in 3-4 weeks
2.0 kg shipping weight
Not available in the United States. Available for delivery to other countries.
1.6 MP area scan camera for inspection, measurement and guidance on the production line. IMX273 sensor (1/2.9"); 1440 x 1080 pixels of 3.45 μm; up to 250 frames per second; global shutter; USB3 interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0128 |
|---|
Sensor and imaging
| Sensor model | Sony IMX273 |
|---|---|
| Resolution | 1440 × 1080 (1.6MP) |
| Max. frame rate | 249 fps |
| Pixel size | 3.45 μm |
| Sensor size | 1/2.9" |
| Shutter | Global |
| Pixel bit depth | 12-bit |
Interfaces and I/O
| Data interface | USB 3.0 |
|---|
Mechanical
| Shipping weight | 2.00 kg |
|---|
Other models in the USB3 area scan cameras (LS-CMR-S10) series
See all 65 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0172 | 16.9 MP, 4/3", USB3, Mono | On request | Ships in 3-4 weeks | View |
| LS-CMR-0174 | 20 MP, 1", USB3, Mono | On request | Ships in 3-4 weeks | View |
| LS-CMR-0176 | 20 MP, 1", USB3, Color | On request | Ships in 3-4 weeks | View |
| LS-CMR-0177 | 20.9 MP, 4/3", USB3, Color | On request | Ships in 3-4 weeks | View |
| LS-CMR-0181 | 26.2 MP, 1.1", USB3, Mono | On request | Ships in 3-4 weeks | View |
| LS-CMR-0182 | 26.2 MP, 1/1.1", USB3, Mono | On request | Ships in 3-4 weeks | View |
| LS-CMR-0145 | 5 MP, 1/2.5", USB, Mono/Color | On request | Ships in 3-4 weeks | View |
| LS-CMR-0146 | 5 MP, 1/2.5", USB, Mono/Color | On request | Ships in 3-4 weeks | View |
| LS-CMR-0152 | 5 MP, 1/1.8", USB, Mono | On request | Ships in 3-4 weeks | View |
| LS-CMR-0139 | 5.2 MP, 1/2.5", USB3, Mono | On request | Ships in 3-4 weeks | View |
| LS-CMR-0140 | 5.2 MP, 1/1.8", USB3, Color | On request | Ships in 3-4 weeks | View |
| LS-CMR-0125 | 1.3 MP, 1/2.7", USB3, Mono/Color | $330.00 | 6 in stock | View |
| LS-CMR-0124 | 1.2 MP, 1/3", USB3, Mono/Color | $360.00 | 7 in stock | View |
| LS-CMR-0129 | 1.6 MP, 1/2.9", USB3, Mono/Color | $365.00 | 7 in stock | View |
| LS-CMR-0143 | 5 MP, 1/2.5", USB3, Mono/Color | $370.00 | 5 in stock | View |
| LS-CMR-0155 | 6.3 MP, 1/1.8", USB3, Mono/Color | $370.00 | 9 in stock | View |
| LS-CMR-0130 | 2.1 MP, 1/2.8", USB3, Color | $375.00 | 4 in stock | View |
| LS-CMR-0121 | 0.4 MP, 1/2.9", USB3, Mono/Color | $400.00 | 9 in stock | View |
| LS-CMR-0123 | 0.5 MP, 1/3.6", USB3, Mono/Color | $410.00 | 4 in stock | View |
| LS-CMR-0126 | 1.3 MP, 1/2", USB3, Mono/Color | $415.00 | 4 in stock | View |
| LS-CMR-0127 | 1.6 MP, 1/2.9", USB3, Mono/Color | $415.00 | 4 in stock | View |
| LS-CMR-0122 | 0.4 MP, USB3, Mono/Color | $440.00 | 9 in stock | View |
| LS-CMR-0118 | 0.3 MP, 1/4", USB3, Mono | $450.00 | 4 in stock | View |
| LS-CMR-0119 | 0.3 MP, 1/4", USB3, Color | $450.00 | 5 in stock | View |
