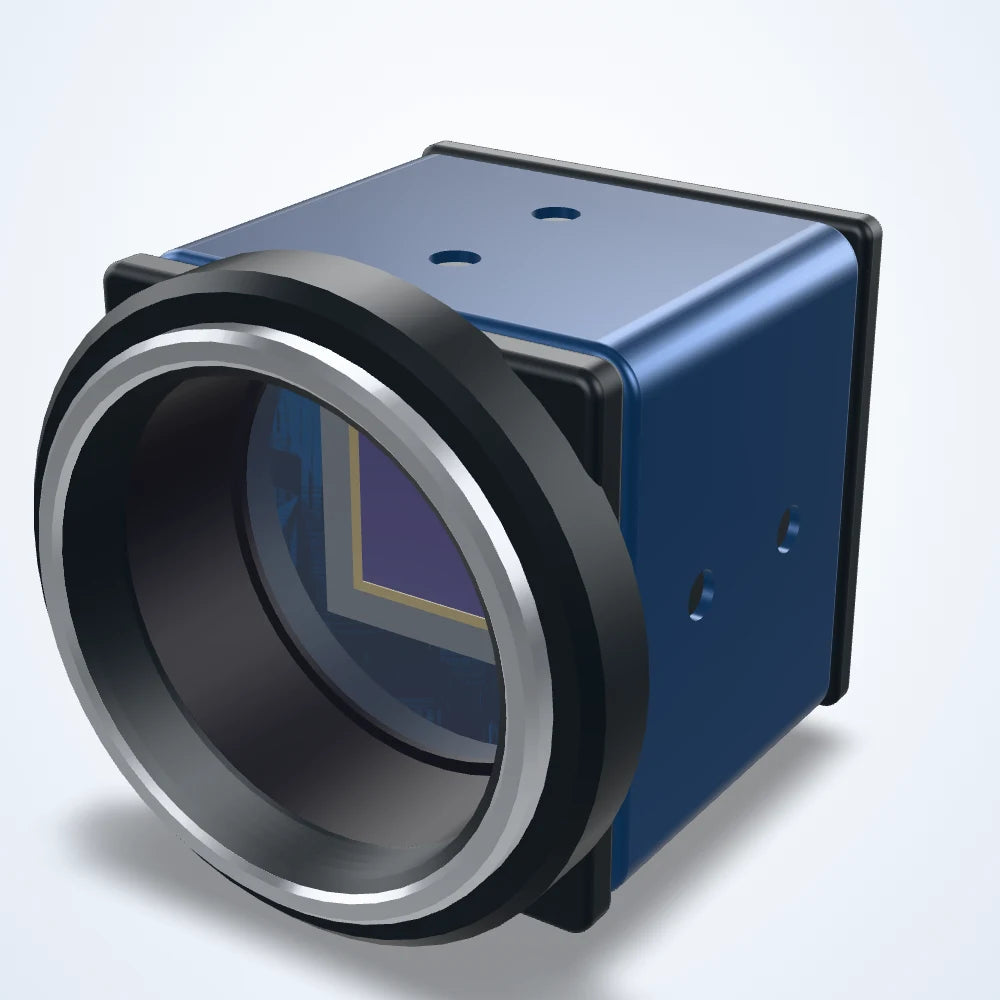

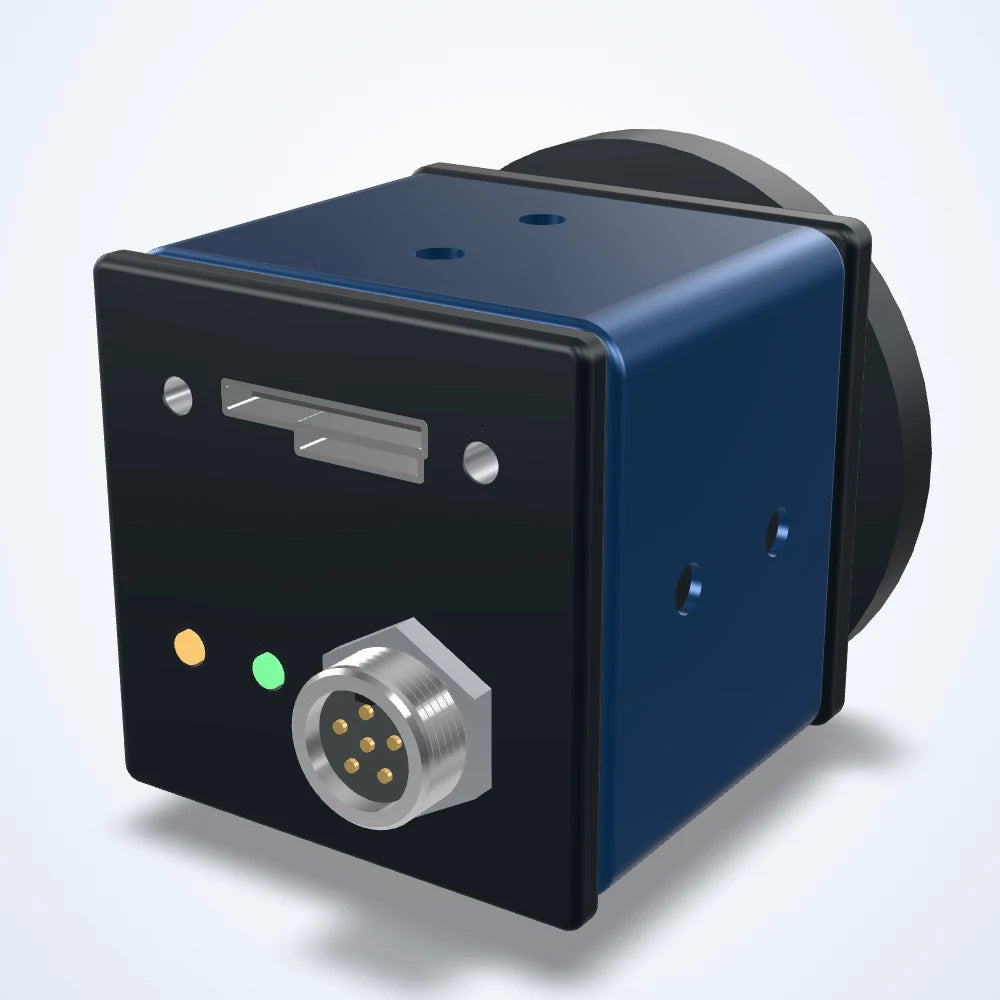

2.1 MP USB3 area scan camera, IMX290, 1/2.8" rolling shutter, 120 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

2.1 MP USB3 area scan camera, IMX290, 1/2.8" rolling shutter, 120 fps (LS-CMR-0130)

Model LS-CMR-0130

Resolution1920 px x 1080 px
Sensor1/2.8"
InterfaceUSB 3.0
Speed120 fps
Lens mountC-mount
Pixel size2.9 μm x 2.9 μm

$375.00

Ships in 3-4 weeks

0.23 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

2.1 MP area scan camera for inspection, measurement and guidance on the production line. IMX290 CMOS sensor (1/2.8"); 1920 x 1080 pixels of 2.9 μm; up to 120 frames per second; rolling shutter; USB3 interface; C-mount lens mount.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0130

Sensor and imaging

Resolution	1920 px x 1080 px
Pixel size	2.9 μm x 2.9 μm
Max. frame rate	120 fps
Sensor make	Sony
Sensor model	IMX 290
Shutter	Rolling Shutter
Sensor size	1/2.8"
Sensor type	CMOS
Dynamic range	66.0 dB
SNR	>38.0 dB
Pixel bit depth	8 / 10 bits

Interfaces and I/O

Data interface	USB 3.0
Digital I/O	1 input(opto-isolated), ; 1 output(opto-isolated),; 1 bi-directional custom non-isolated I/O

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	USB3 Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Soft Trigger,Hardware Trigger,Free Run
Power supply	USB3.0 power supply / 3.5 W
Power consumption	12 V@ ≈2.8 W

Mechanical

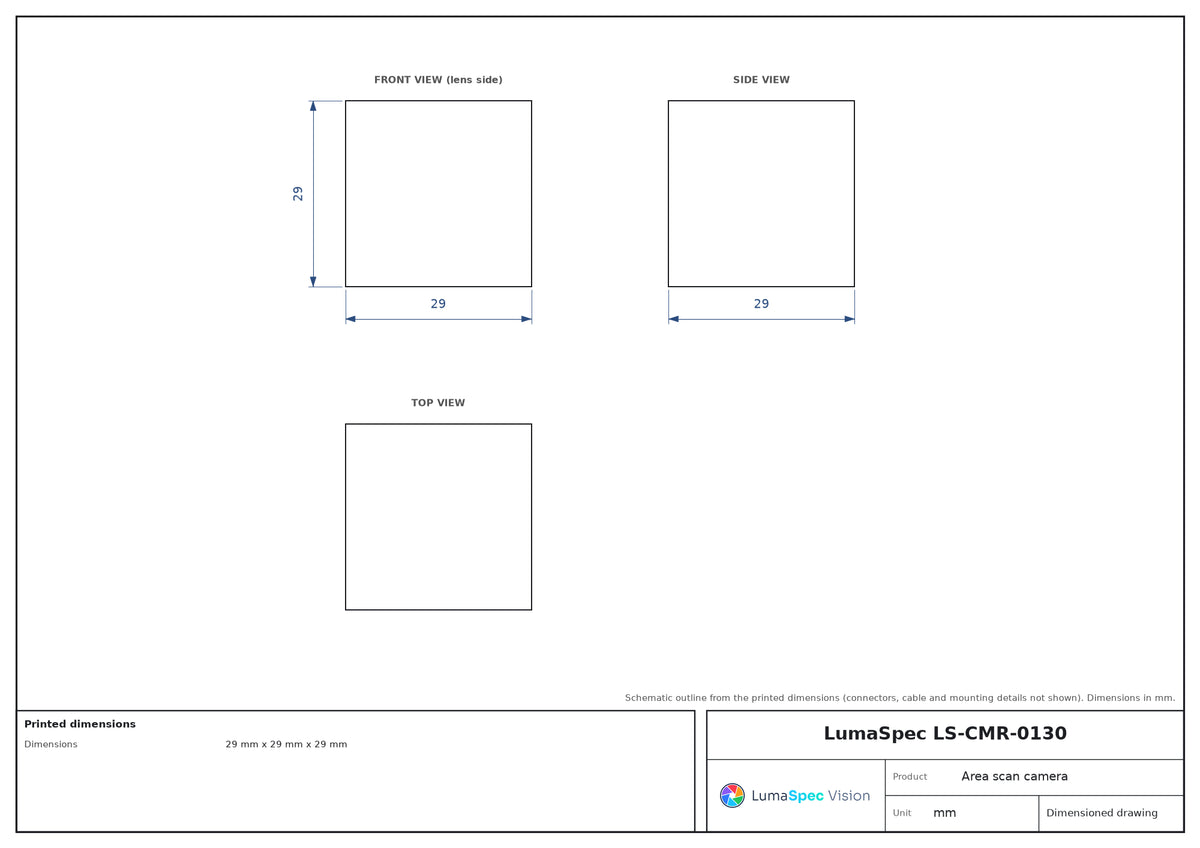

Dimensions	29 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized)
Weight	60g

Other models in the USB3 area scan cameras (LS-CMR-S10) series

See all 65 models

Model	Size / key data	Price	Availability	Link
LS-CMR-0182	26.2 MP, 1/1.1", USB3, Mono	On request	Ships in 3-4 weeks	View
LS-CMR-0145	5 MP, 1/2.5", USB, Mono/Color	On request	Ships in 3-4 weeks	View
LS-CMR-0146	5 MP, 1/2.5", USB, Mono/Color	On request	Ships in 3-4 weeks	View
LS-CMR-0152	5 MP, 1/1.8", USB, Mono	On request	Ships in 3-4 weeks	View
LS-CMR-0139	5.2 MP, 1/2.5", USB3, Mono	On request	Ships in 3-4 weeks	View
LS-CMR-0140	5.2 MP, 1/1.8", USB3, Color	On request	Ships in 3-4 weeks	View
LS-CMR-0125	1.3 MP, 1/2.7", USB3, Mono/Color	$330.00	Ships in 3-4 weeks	View
LS-CMR-0128	1.6 MP, 1/2.9", USB3, Mono/Color	$340.00	Ships in 3-4 weeks	View
LS-CMR-0124	1.2 MP, 1/3", USB3, Mono/Color	$360.00	Ships in 3-4 weeks	View
LS-CMR-0129	1.6 MP, 1/2.9", USB3, Mono/Color	$365.00	Ships in 3-4 weeks	View
LS-CMR-0143	5 MP, 1/2.5", USB3, Mono/Color	$370.00	Ships in 3-4 weeks	View
LS-CMR-0155	6.3 MP, 1/1.8", USB3, Mono/Color	$370.00	Ships in 3-4 weeks	View
LS-CMR-0121	0.4 MP, 1/2.9", USB3, Mono/Color	$400.00	Ships in 3-4 weeks	View
LS-CMR-0123	0.5 MP, 1/3.6", USB3, Mono/Color	$410.00	Ships in 3-4 weeks	View
LS-CMR-0126	1.3 MP, 1/2", USB3, Mono/Color	$415.00	Ships in 3-4 weeks	View
LS-CMR-0127	1.6 MP, 1/2.9", USB3, Mono/Color	$415.00	Ships in 3-4 weeks	View
LS-CMR-0122	0.4 MP, USB3, Mono/Color	$440.00	Ships in 3-4 weeks	View
LS-CMR-0118	0.3 MP, 1/4", USB3, Mono	$450.00	Ships in 3-4 weeks	View
LS-CMR-0119	0.3 MP, 1/4", USB3, Color	$450.00	Ships in 3-4 weeks	View
LS-CMR-0120	0.3 MP, 1/4", USB3, Mono/Color	$450.00	Ships in 3-4 weeks	View
LS-CMR-0154	6.3 MP, 1/1.8", USB3, Mono/Color	$450.00	Ships in 3-4 weeks	View
LS-CMR-0153	6.3 MP, 1/1.8", USB3, Mono/Color	$470.00	Ships in 3-4 weeks	View
LS-CMR-0135	2 MP, 1/1.7", USB3, Mono/Color	$490.00	Ships in 3-4 weeks	View
LS-CMR-0131	2.3 MP, 1/1.2", USB3, Color/Mono	$490.00	Ships in 3-4 weeks	View
