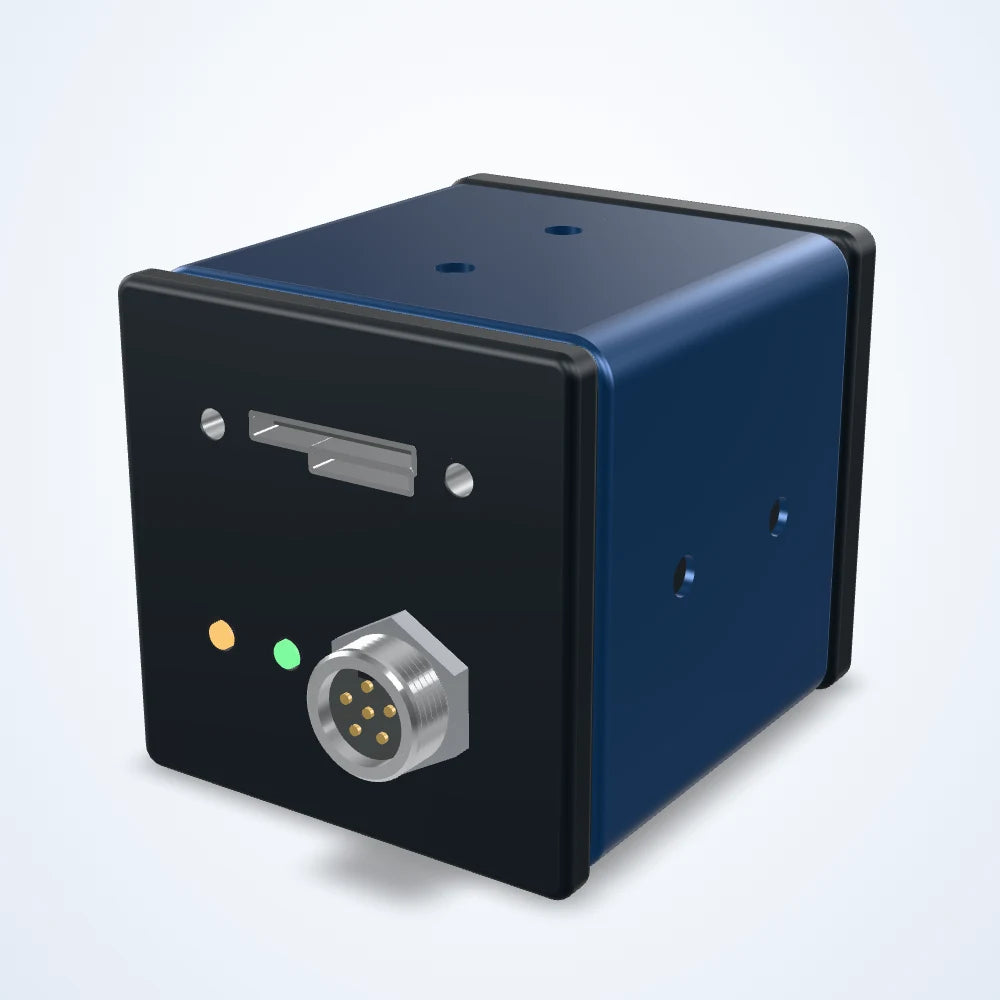

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
0.4 MP USB3 area scan camera, IMX287, global shutter, 525 fps (LS-CMR-0122)
Model LS-CMR-0122
- Resolution720 × 540
- Sensor1/2.9"
- InterfaceUSB3.0
- Speed525 fps
- Lens mountC-mount
- Pixel size6.9 × 6.9 μm
$440.00
Ships in 3-4 weeks
0.5 kg shipping weight
Not available in the United States. Available for delivery to other countries.
0.4 MP area scan camera for inspection, measurement and guidance on the production line. IMX287 sensor; 720 x 540 pixels of 6.9 μm; up to 525 frames per second; global shutter; USB3 interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0122 |
|---|---|
| Image Format (Mono) | Mono8 / Mono10 / Mono10Packed / Mono12 / Mono12Packed |
| ROI | Yes |
| Gamma / LUT | Range: 0–3.99998 |
Sensor and imaging
| Resolution | 720 × 540 |
|---|---|
| Max. frame rate | 525 fps |
| Sensor model | Sony IMX287 (1/2.9" CMOS) |
| Pixel size | 6.9 × 6.9 μm |
| Pixel bit depth | 12 bit |
| Shutter | Global Shutter |
| SNR | 43 dB |
| Dynamic range | 73 dB |
| Binning | Off, 1×2, 2×1, 2×2, 1×4, 4×1, 2×4, 4×2, 4×4, 3×3 |
| Gain | 1×–32× |
| Exposure time | Ultra-fast: 1 μs–14 μsStandard: 15 μs–10 sec |
| Image buffer | 256 MB |
| Sensor make | Sony |
| Sensor size | 1/2.9" |
| Sensor type | CMOS |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | 1× Opto-Isolated Input, 1× Opto-Isolated Output, 1× Configurable I/O (No Opto-Isolation) |
Light
| Image Format (Color) | Bayer RG8 / RG10 / RG10Packed / RG12 / RG12Packed / YUV422_8_UYVY / YUV422_8 / RGB8 / BGR8 |
|---|
Environment and compliance
| Operating temperature | 0 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | USB3 Vision and GenICam |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | USB 3.0, DC9V~24 V |
Mechanical
| Dimensions | 29 mm×29 mm×30 mm(not including lens mount and rear case connector) |
|---|---|
| Lens mount | C-mount |
| Weight | 85g |
