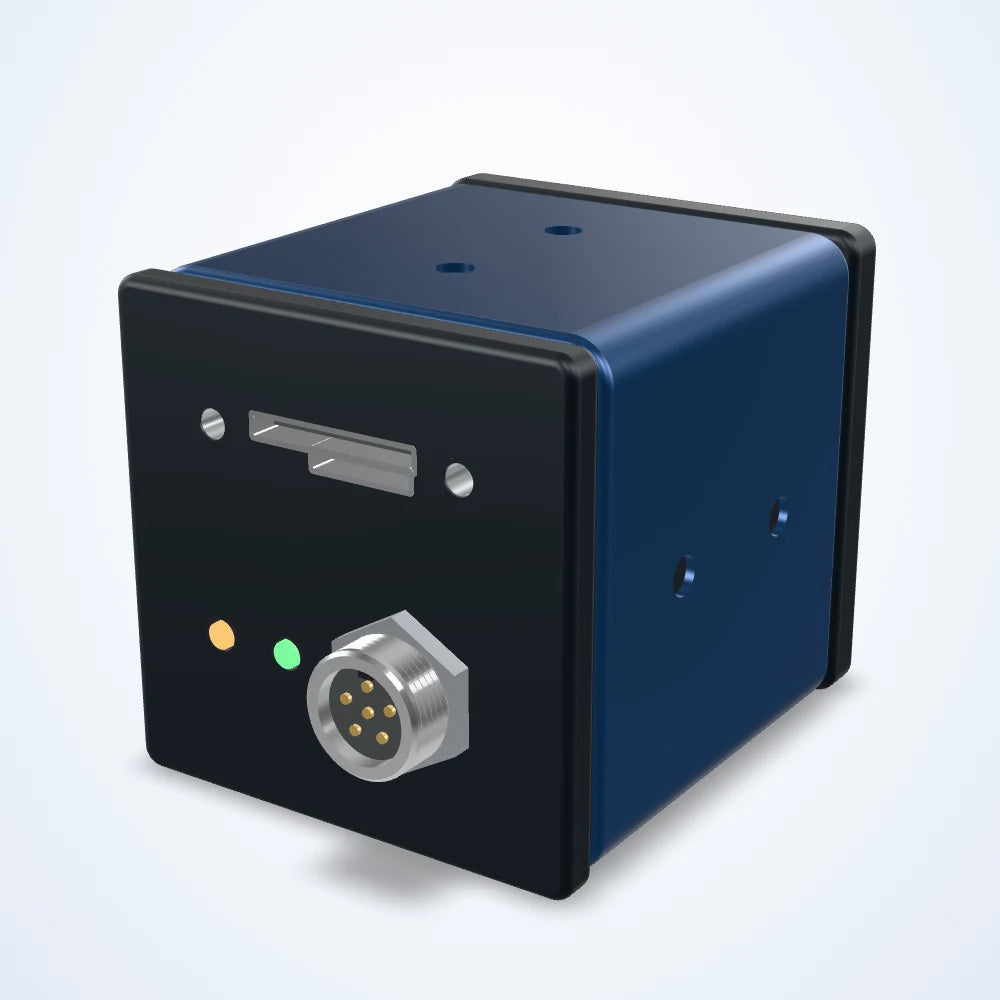

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
12 MP USB3 area scan camera, IMX226, 1/1.7" rolling shutter, 30 fps (LS-CMR-0167)
Model LS-CMR-0167
- Resolution4000 × 3000 (12MP)
- Sensor1/1.7"
- InterfaceUSB 3.0 (USB3 Vision)
- Speed30 fps
- Lens mountC-mount
- Pixel size1.85 μm
$560.00
Ships in 3-4 weeks
3.0 kg shipping weight
Not available in the United States. Available for delivery to other countries.
12 MP area scan camera for inspection, measurement and guidance on the production line. IMX226 sensor (1/1.7"); 4000 x 3000 pixels of 1.85 μm; up to 30 frames per second; rolling shutter; USB3 interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0167 |
|---|
Sensor and imaging
| Sensor model | Sony IMX226 |
|---|---|
| Resolution | 4000 × 3000 (12MP) |
| Max. frame rate | 30 fps |
| Pixel size | 1.85 μm |
| Sensor size | 1/1.7" |
| Shutter | Rolling |
| Pixel bit depth | 12-bit |
| Sensor make | Sony |
| Sensor type | CMOS |
| Dynamic range | 66 dB |
| SNR | 38 dB |
Interfaces and I/O
| Data interface | USB 3.0 (USB3 Vision) |
|---|---|
| Digital I/O | 1× Opto-Isolated Input, 1× Opto-Isolated Output, 1× Configurable I/O (No Opto-Isolation) |
Environment and compliance
| Operating temperature | 0 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | USB3 Vision and GenICam |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | USB 3.0, DC9V~24 V |
Mechanical
| Dimensions | 29 mm×29 mm×30 mm(not including lens mount and rear case connector) |
|---|---|
| Lens mount | C-mount |
| Weight | 85g |
