2.3 MP USB3 area scan camera, PYTHON2000, 2/3" global shutter, 150 fps
  • 2.3 MP USB3 area scan camera, PYTHON2000, 2/3" global shutter, 150 fps
  • 2.3 MP USB3 area scan camera, PYTHON2000, 2/3" global shutter, 150 fps
  • 2.3 MP USB3 area scan camera, PYTHON2000, 2/3" global shutter, 150 fps

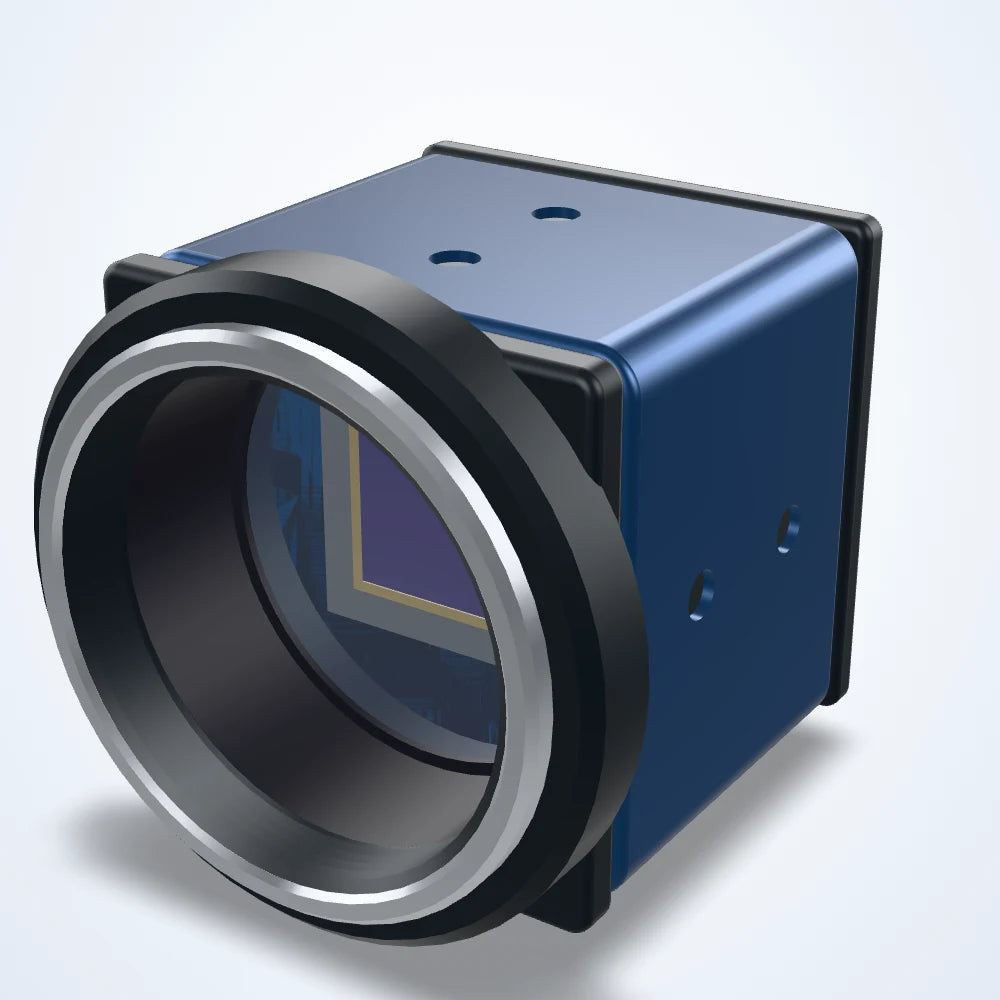

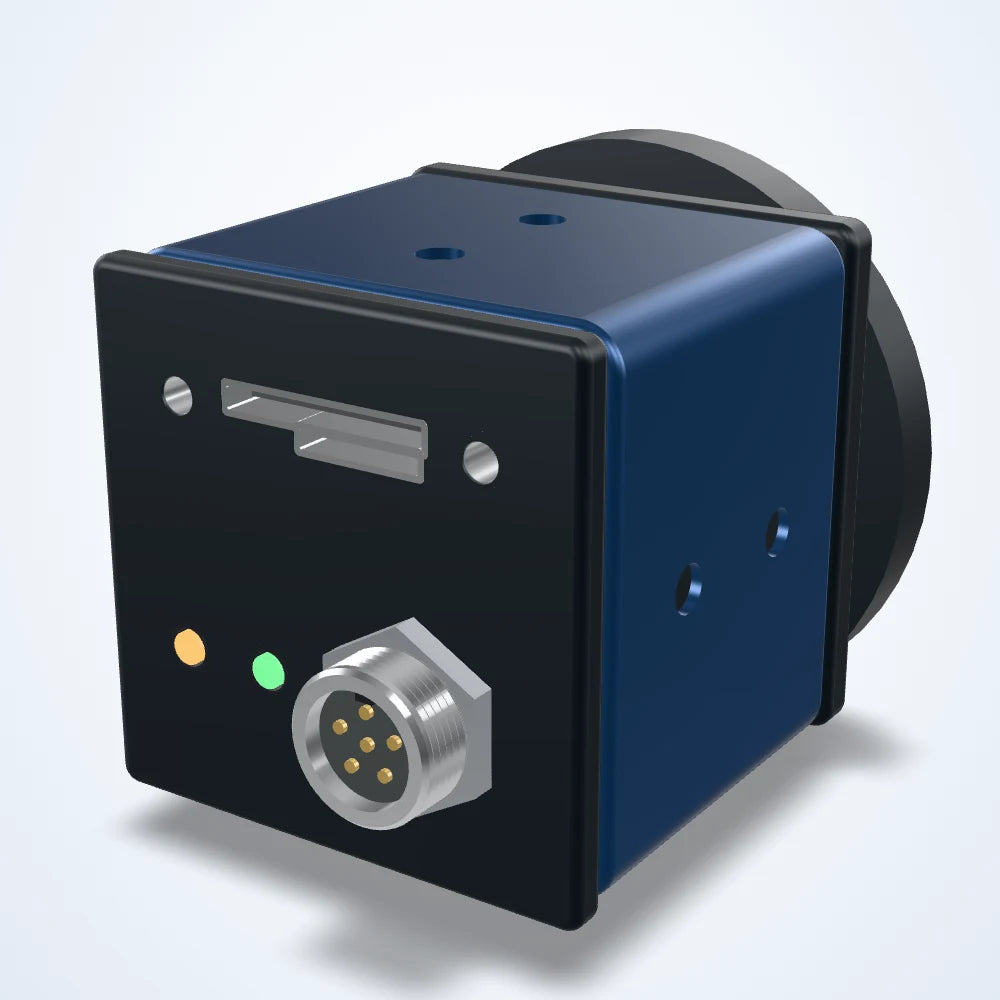

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

2.3 MP USB3 area scan camera, PYTHON2000, 2/3" global shutter, 150 fps (LS-CMR-0132)

Model LS-CMR-0132

  • Resolution1920 px x 1200 px
  • Sensor2/3"
  • InterfaceUSB 3.0
  • Speed150 fps
  • Lens mountC-mount
  • Pixel size4.8 μm x 4.8 μm
$580.00

Ships in 3-4 weeks

0.23 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2.3 MP USB3 area scan camera, PYTHON2000, 2/3" global shutter, 150 fps (LS-CMR-0132)LS-CMR-0132

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2.3 MP area scan camera for inspection, measurement and guidance on the production line. PYTHON2000 CMOS sensor (2/3"); 1920 x 1200 pixels of 4.8 μm; up to 150 frames per second; global shutter; USB3 interface; C-mount lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0132

Sensor and imaging

Resolution1920 px x 1200 px
Pixel size4.8 μm x 4.8 μm
Max. frame rate150 fps
Sensor makeON Semiconductor
Sensor modelPYTHON 2000
ShutterGlobal Shutter
Sensor size2/3"
Sensor typeCMOS
Dynamic range60.0 dB
SNR>38.0 dB
Pixel bit depth8 / 10 bits

Interfaces and I/O

Data interfaceUSB 3.0
Digital I/O1 input(opto-isolated),1 output(opto-isolated),1 bi-directional custom non-isolated I/O

Environment and compliance

Operating temperature-30 - 50°C(Operating), -30 - 80°C(Storage)
CertificationUSB3 Vision and GenICam

Computing

Operating systemWindows, Linux

Electrical

Trigger mode● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supplyUSB3.0 power supply / 3.0 W
Power consumption12 V@ ≈3.8 W

Mechanical

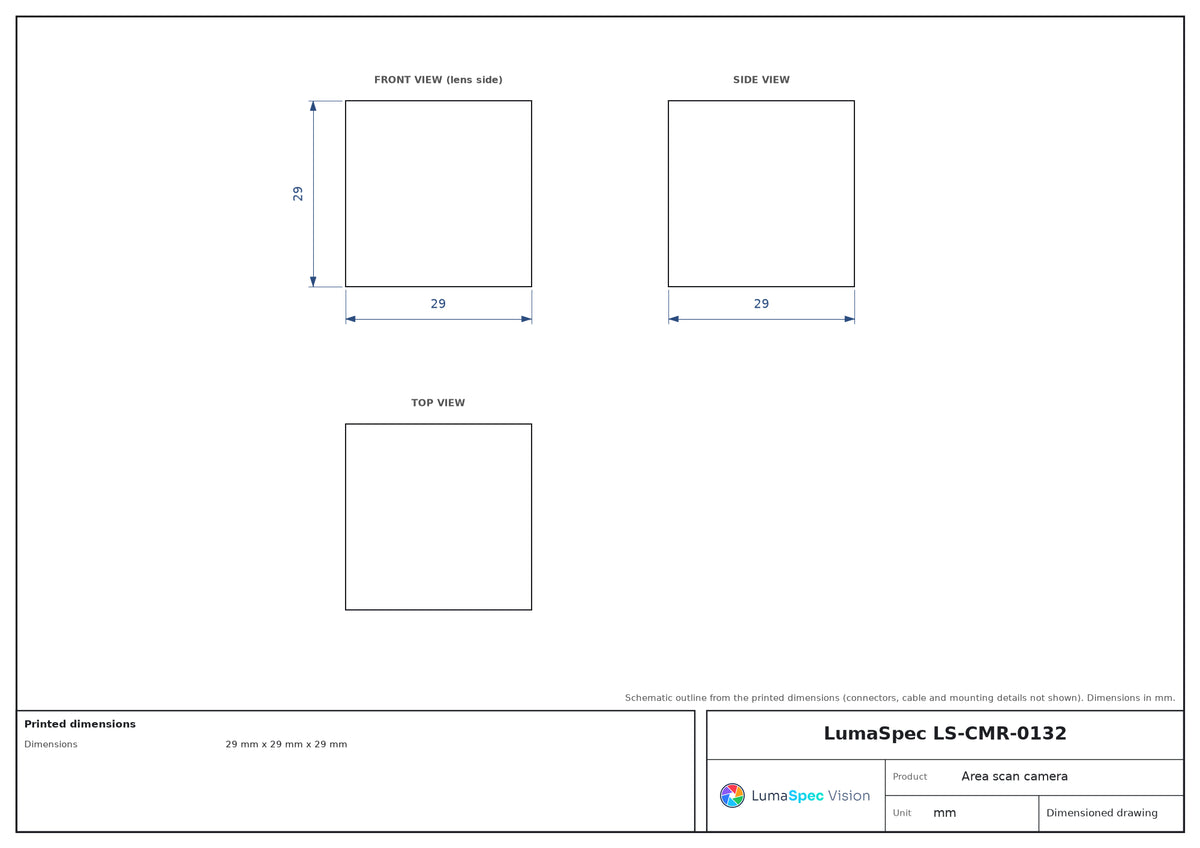

Dimensions29 mm x 29 mm x 29 mm
Lens mountC-mount (CS-Mount can be customized )
Weight60g
