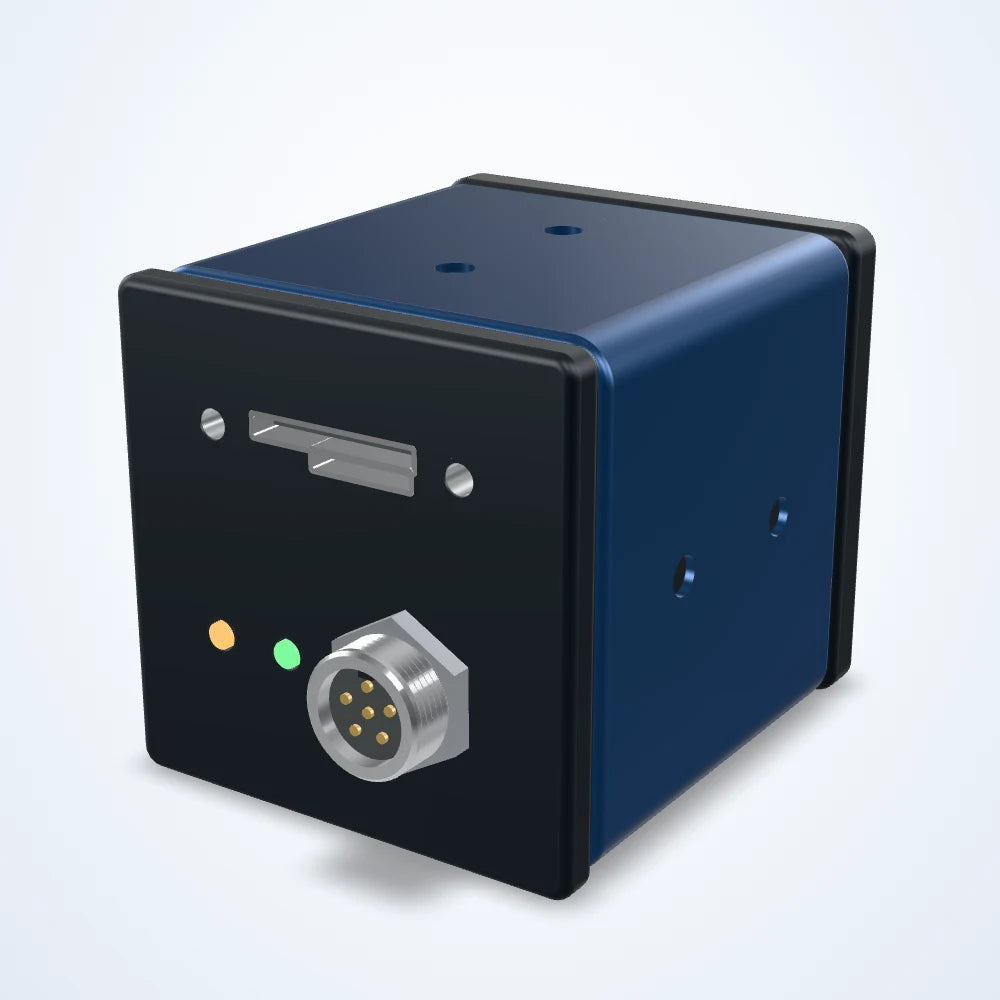

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
5 MP USB3 area scan camera, IMX264, 2/3" global shutter, 68 fps (LS-CMR-0147)
Model LS-CMR-0147
- Resolution2448 x 2048 (5MP)
- Sensor2/3"
- InterfaceUSB 3.0
- Speed68 fps
- Lens mountC-mount
- Pixel size3.45 μm
$570.00
Ships in 3-4 weeks
0.5 kg shipping weight
Not available in the United States. Available for delivery to other countries.
5 MP area scan camera for inspection, measurement and guidance on the production line. IMX264 sensor (2/3"); 2448 x 2048 pixels of 3.45 μm; up to 68 frames per second; global shutter; USB3 interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0147 |
|---|
Sensor and imaging
| Sensor model | Sony IMX264 |
|---|---|
| Resolution | 2448 x 2048 (5MP) |
| Max. frame rate | 68 fps |
| Pixel size | 3.45 μm |
| Sensor size | 2/3" |
| Shutter | Global |
| Pixel bit depth | 12-bit |
| Sensor make | Sony |
| Sensor type | CMOS |
| Dynamic range | 73 dB |
| SNR | 40 dB |
Interfaces and I/O
| Data interface | USB 3.0 |
|---|---|
| Digital I/O | 1× Opto-Isolated Input, 1× Opto-Isolated Output, 1× Configurable I/O (No Opto-Isolation) |
Environment and compliance
| Operating temperature | 0 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | USB3 Vision and GenICam |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | USB 3.0, DC9V~24 V |
Mechanical
| Dimensions | 29 mm×29 mm×30 mm(not including lens mount and rear case connector) |
|---|---|
| Lens mount | C-mount |
| Weight | 85g |
