12.6 MP USB3 area scan camera, XGS12000, 1" global shutter, 18 fps

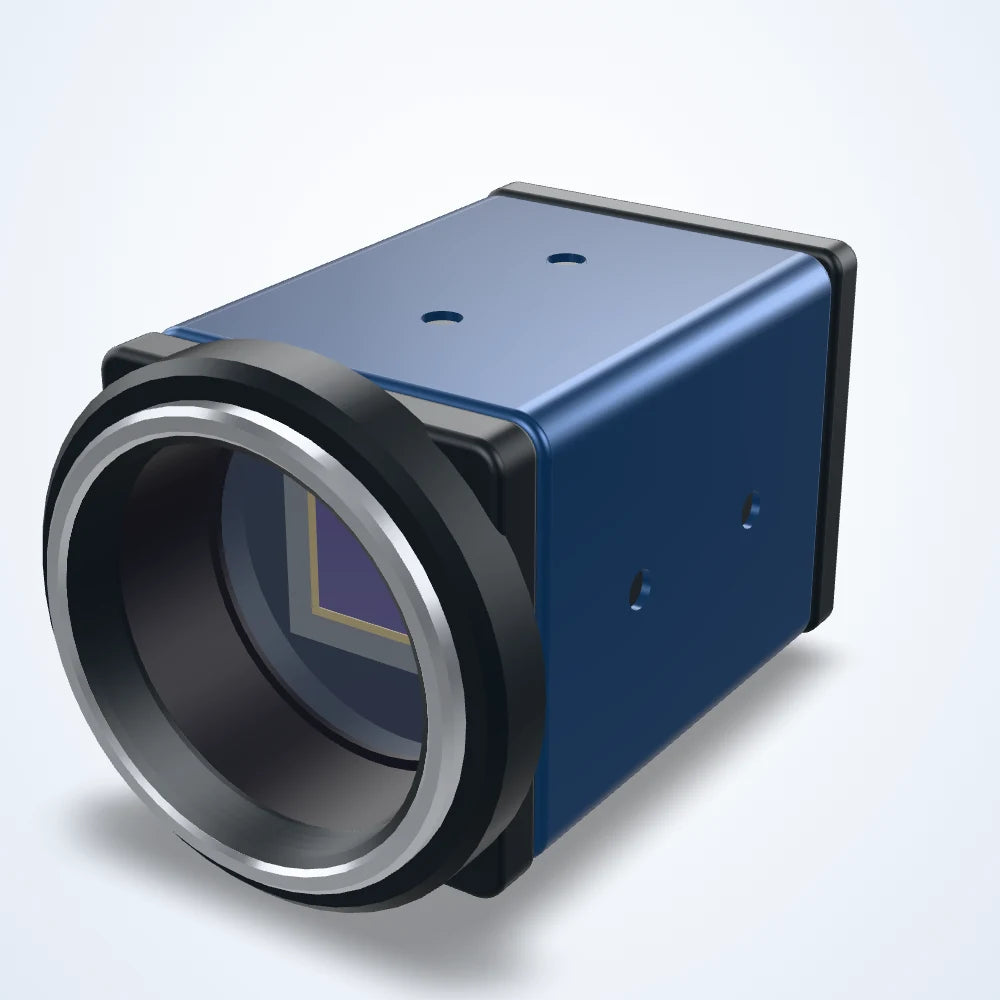

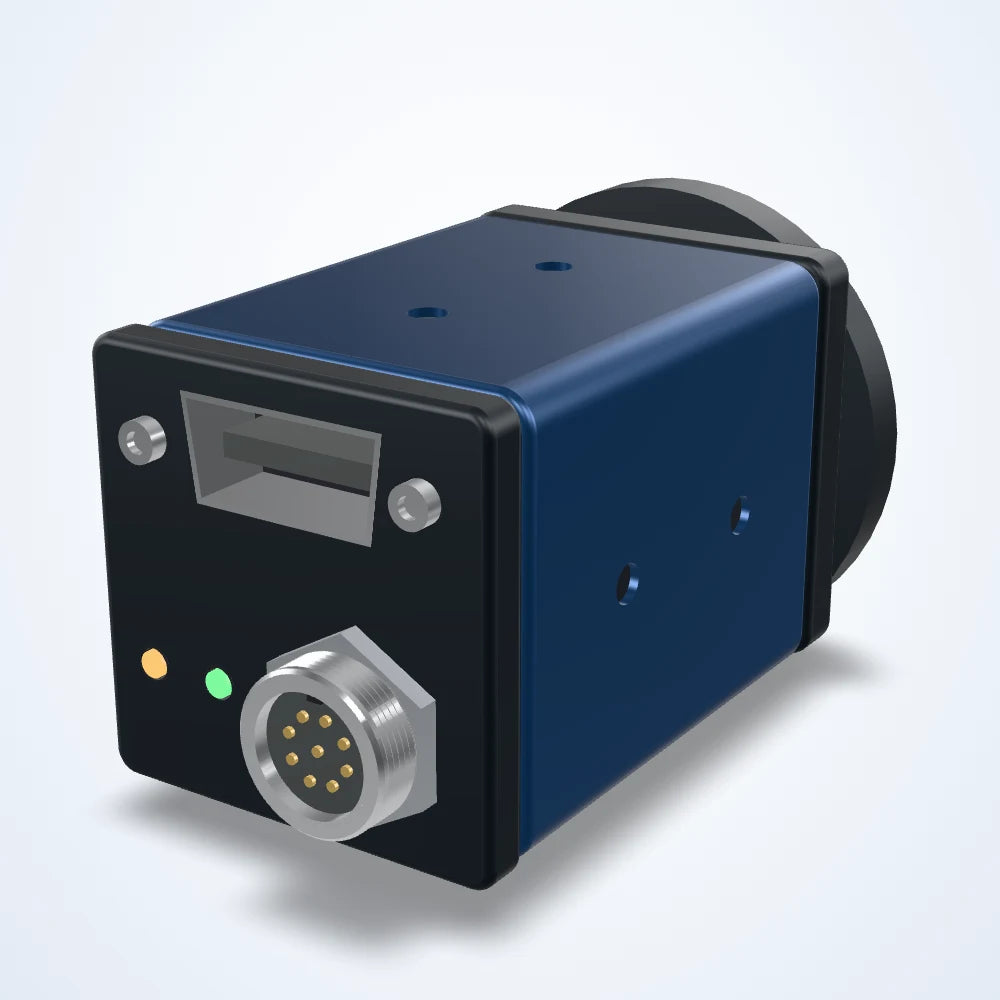

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

12.6 MP USB3 area scan camera, XGS12000, 1" global shutter, 18 fps (LS-CMR-0170)

Model LS-CMR-0170

Resolution4096 px x 3072 px
Sensor1"
InterfaceUSB 3.0
Speed18 fps
Lens mountC-mount
Pixel size3.2 μm x 3.2 μm

$1,180.00

Ships in 3-4 weeks

0.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

12.6 MP area scan camera for inspection, measurement and guidance on the production line. XGS12000 CMOS sensor (1"); 4096 x 3072 pixels of 3.2 μm; up to 18 frames per second; global shutter; USB3 interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0170

Sensor and imaging

Resolution	4096 px x 3072 px
Pixel size	3.2 μm x 3.2 μm
Max. frame rate	18 fps
Sensor make	ON Semiconductor
Sensor model	XGS12000
Shutter	Global Shutter
Sensor size	1"
Sensor type	CMOS
Dynamic range	65.0 dB
SNR	>38.0 dB
Pixel bit depth	10 bits

Interfaces and I/O

Data interface	USB 3.0
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	Cameralink and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply	PoCL, DC 9-24 V

Mechanical

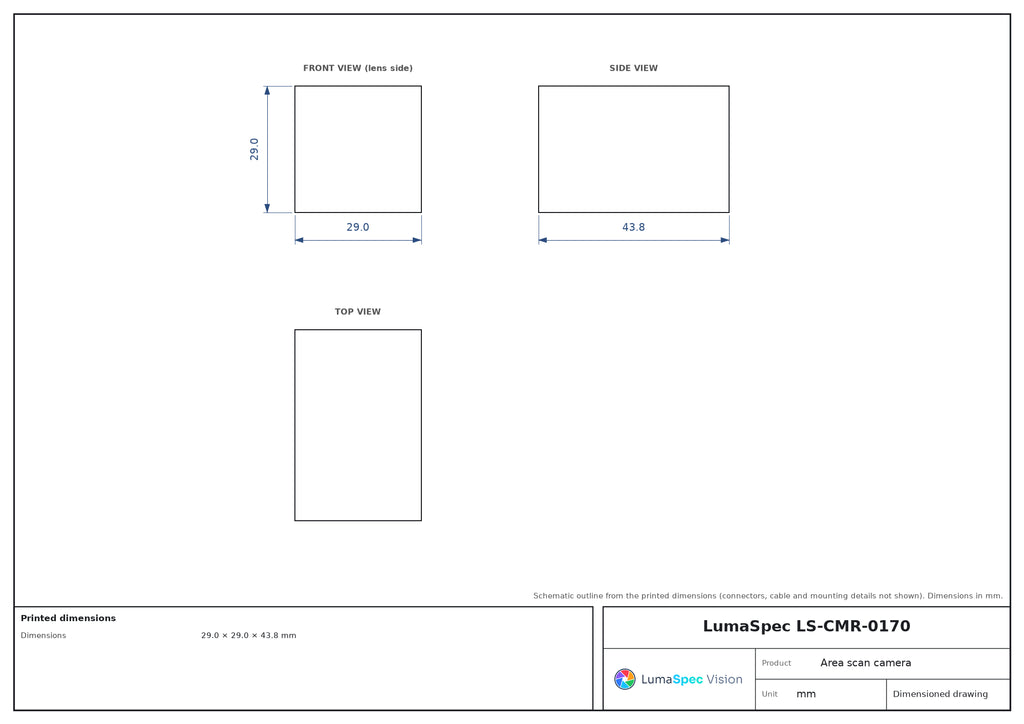

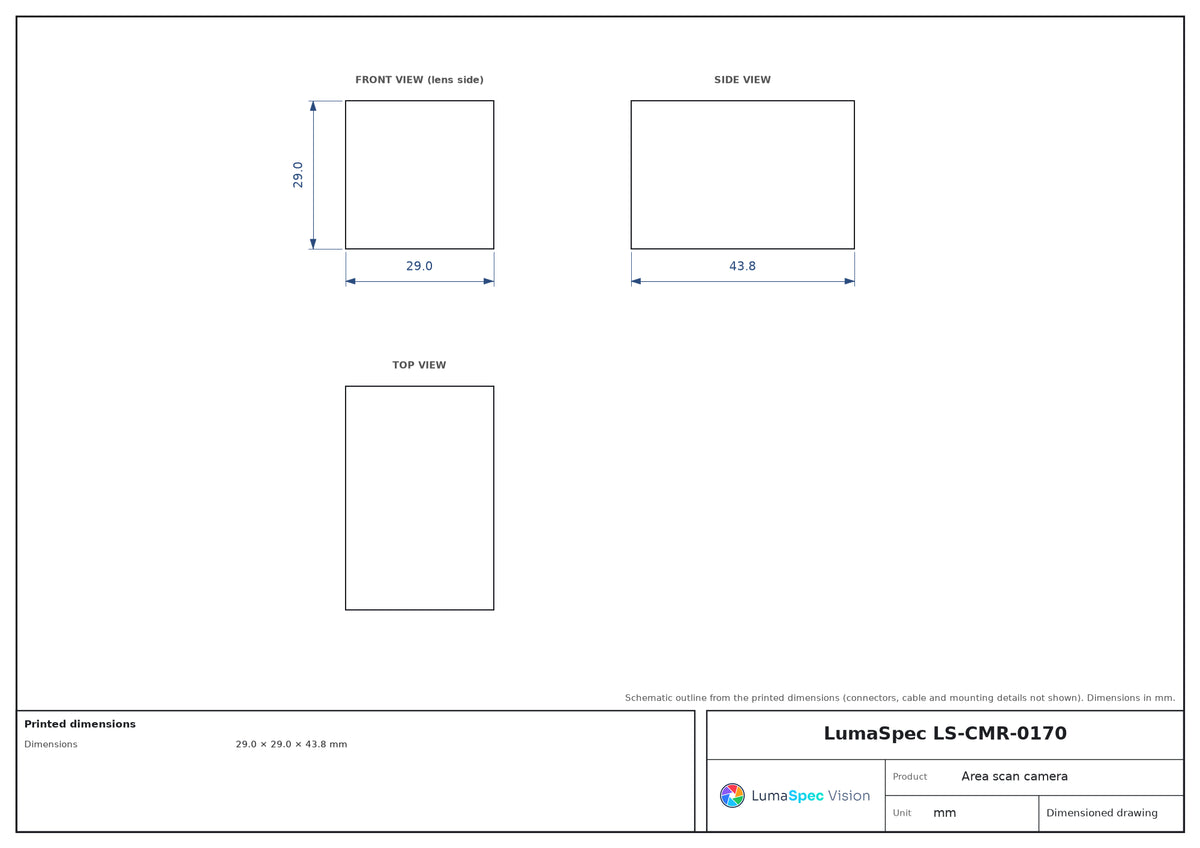

Dimensions	29.0 × 29.0 × 43.8 mm
Lens mount	C-mount (CS-Mount can be customized )
Weight	80g
