8.8 MP USB3 area scan camera, IMX255, 1" global shutter, 40 fps

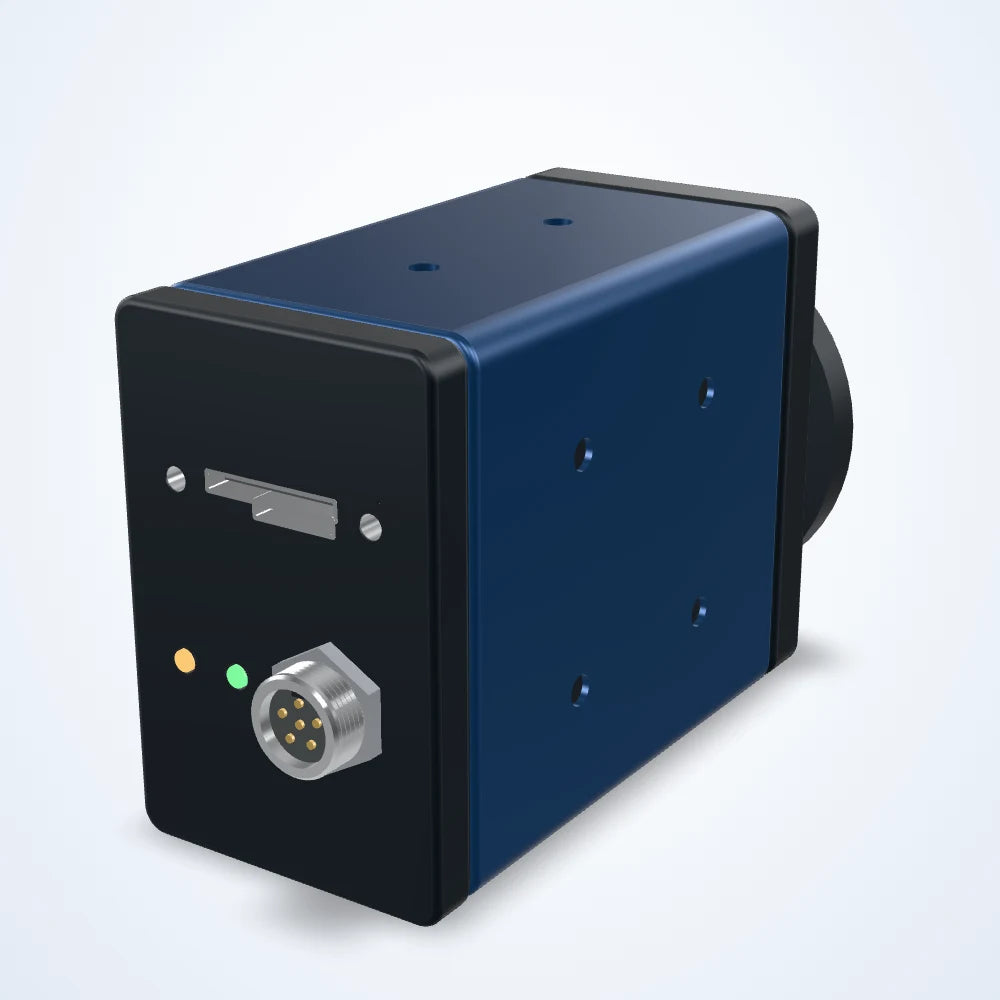

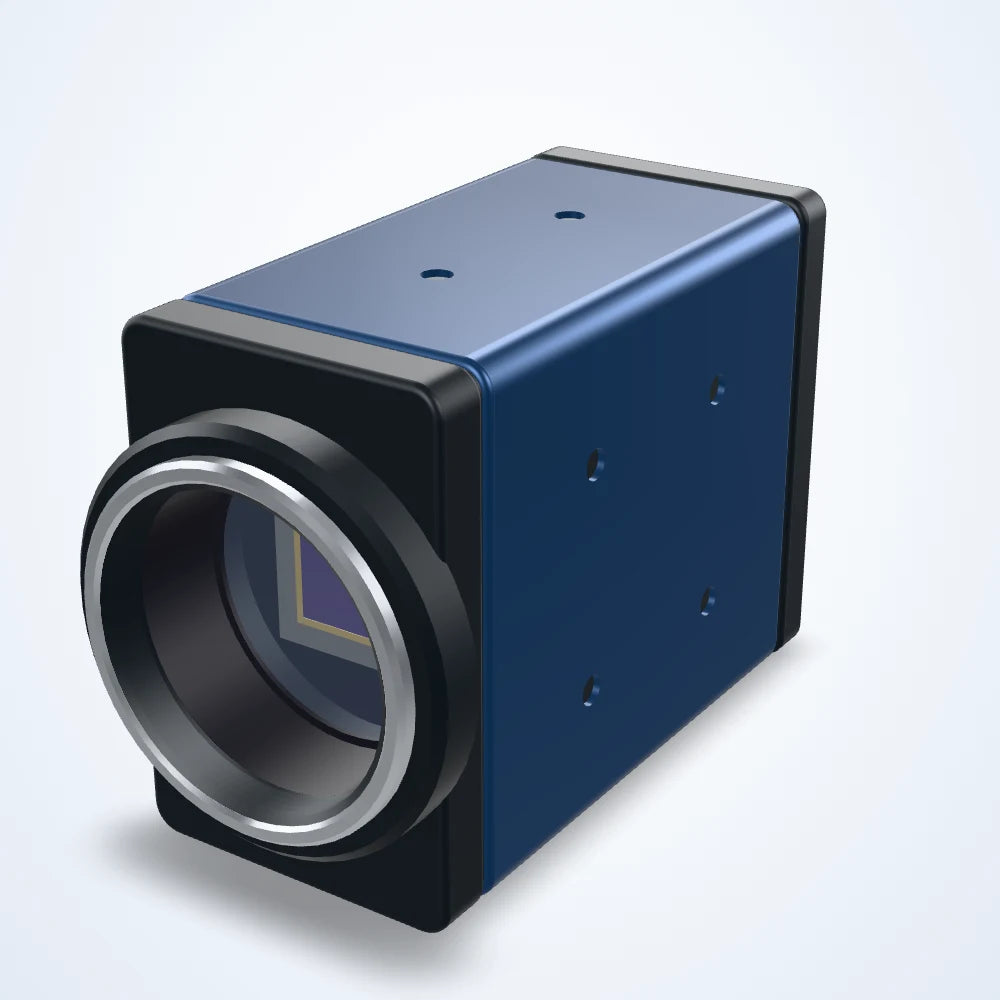

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

8.8 MP USB3 area scan camera, IMX255, 1" global shutter, 40 fps (LS-CMR-0160)

Model LS-CMR-0160

Resolution4096 px x 2160 px
Sensor1"
InterfaceUSB 3.0
Speed40 fps
Lens mountC-mount
Pixel size3.45 μm x 3.45 μm

$2,540.00

Ships in 3-4 weeks

0.28 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

8.8 MP area scan camera for inspection, measurement and guidance on the production line. IMX255 CMOS sensor (1"); 4096 x 2160 pixels of 3.45 μm; up to 40 frames per second; global shutter; USB3 interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0160

Sensor and imaging

Resolution	4096 px x 2160 px
Pixel size	3.45 μm x 3.45 μm
Max. frame rate	40 fps
Sensor make	Sony
Sensor model	IMX 255
Shutter	Global Shutter
Sensor size	1"
Sensor type	CMOS
Dynamic range	70.0 dB
SNR	>38.0 dB
Pixel bit depth	8 / 10 bits

Interfaces and I/O

Data interface	USB 3.0
Digital I/O	1 input(opto-isolated), ; 1 output(opto-isolated),; 1 configurable input and output(Without opto-isolated)

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	USB3 Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply	USB3.0 power supply / 4.0 W

Mechanical

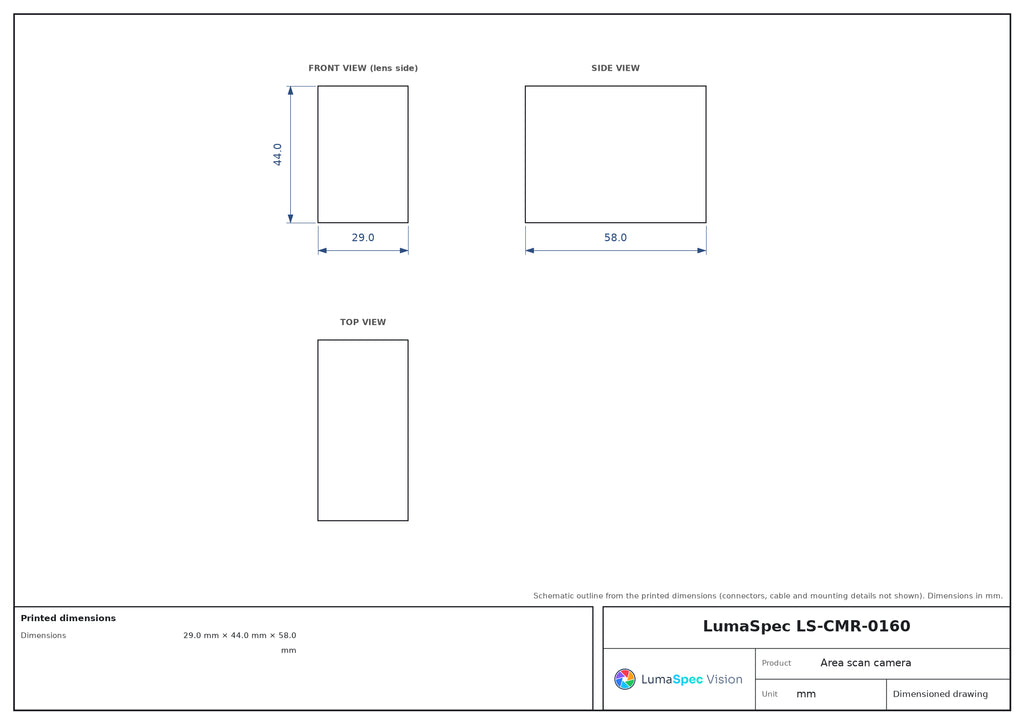

Dimensions	29.0 mm × 44.0 mm × 58.0 mm
Lens mount	C-mount (CS-Mount can be customized )
Weight	100g
