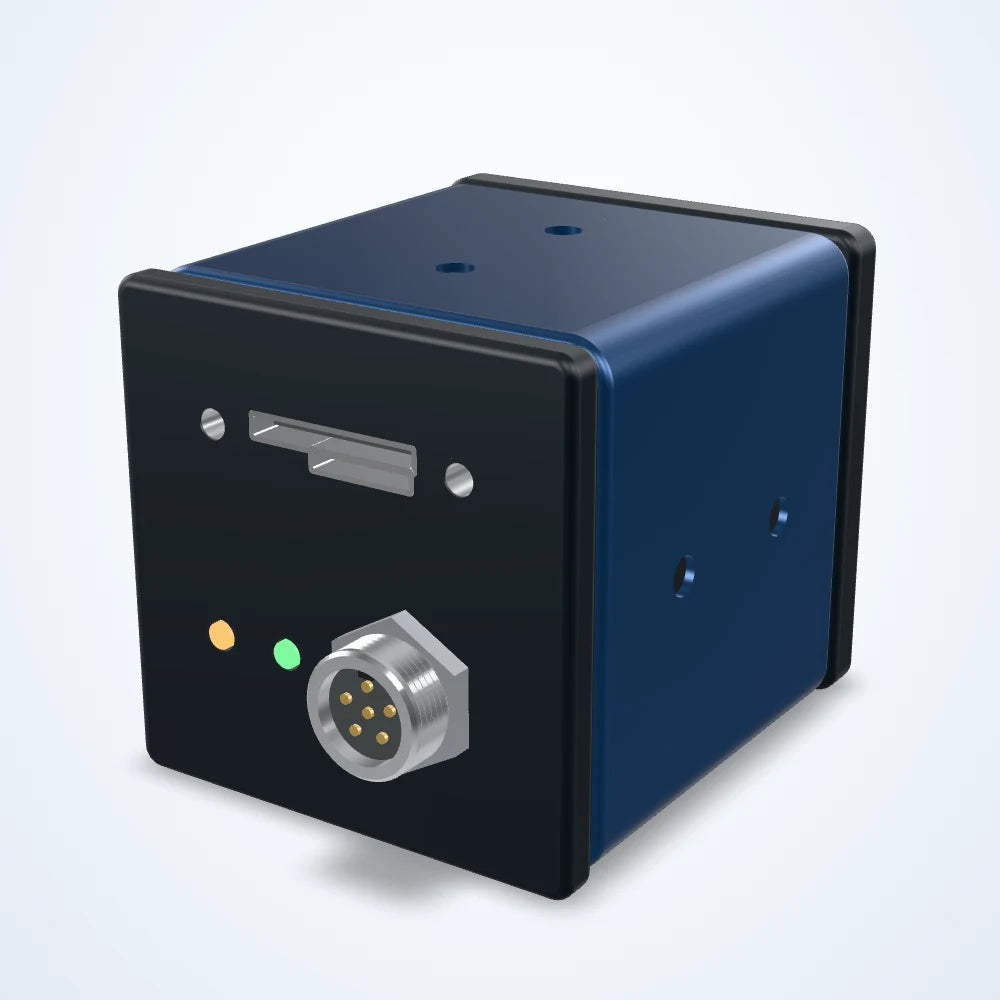

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
26.2 MP USB3 area scan camera, GMAX0505, 1.1" global shutter, 14.7 fps (LS-CMR-0179)
Model LS-CMR-0179
- Resolution5120 × 5120 (25MP)
- Sensor1.1"
- InterfaceUSB 3.0 (USB3 Vision)
- Speed14 fps
- Lens mountC-mount
- Pixel size2.5 μm
$1,600.00
Ships in 3-4 weeks
0.5 kg shipping weight
Not available in the United States. Available for delivery to other countries.
26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 sensor (1.1"); 5120 x 5120 pixels of 2.5 μm; up to 14.7 frames per second; global shutter; USB3 interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0179 |
|---|
Sensor and imaging
| Sensor model | Gpixel GMAX0505 |
|---|---|
| Resolution | 5120 × 5120 (25MP) |
| Max. frame rate | 14 fps |
| Pixel size | 2.5 μm |
| Sensor size | 1.1" |
| Shutter | Global |
| Pixel bit depth | 12-bit |
| Sensor make | Gpixel |
| Sensor type | CMOS |
| Dynamic range | 64 dB |
| SNR | 35 dB |
Interfaces and I/O
| Data interface | USB 3.0 (USB3 Vision) |
|---|---|
| Digital I/O | 1× Opto-Isolated Input, 1× Opto-Isolated Output, 1× Configurable I/O (No Opto-Isolation) |
Light
| Color Type | Mono |
|---|
Environment and compliance
| Operating temperature | -30 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | USB3 Vision and GenICam |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | USB 3.0, DC9V~24 V |
Mechanical

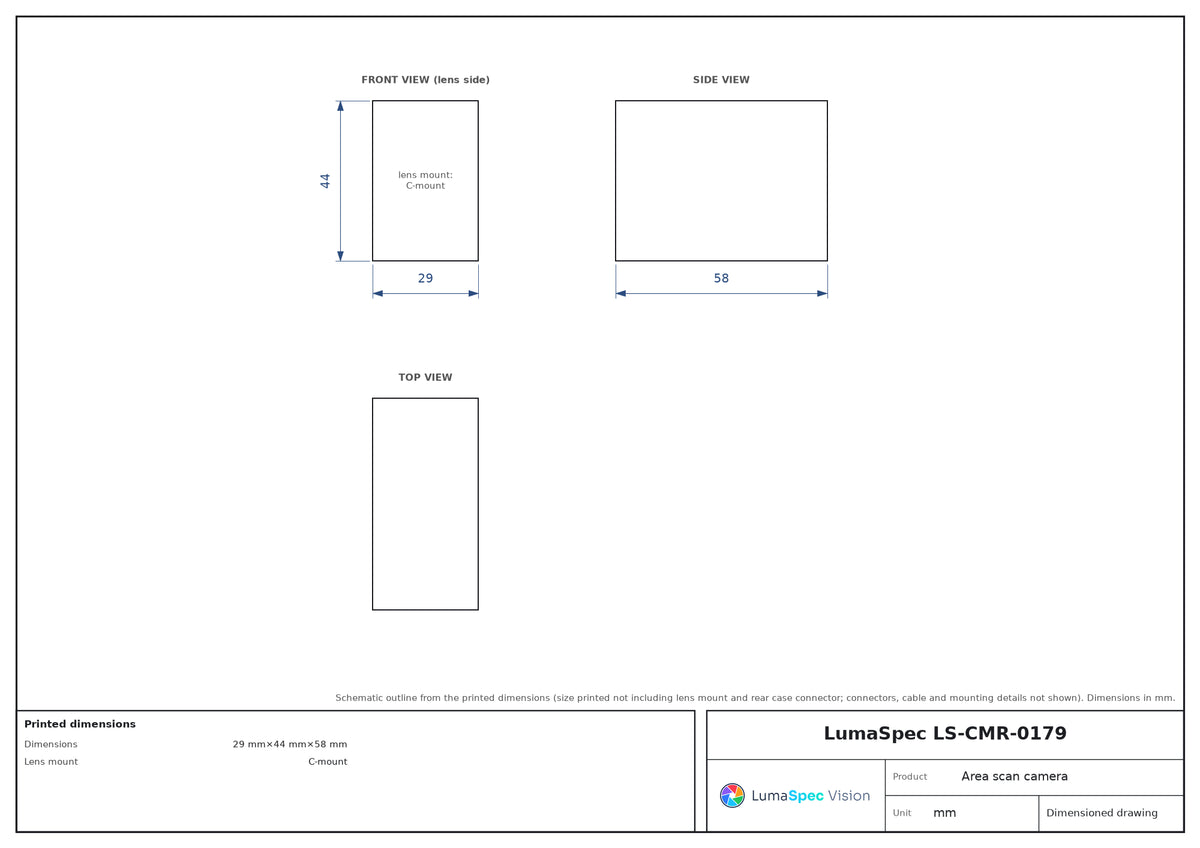

| Dimensions | 29 mm×44 mm×58 mm(not including lens mount and rear case connector) |
|---|---|
| Lens mount | C-mount |
| Weight | 140g |
