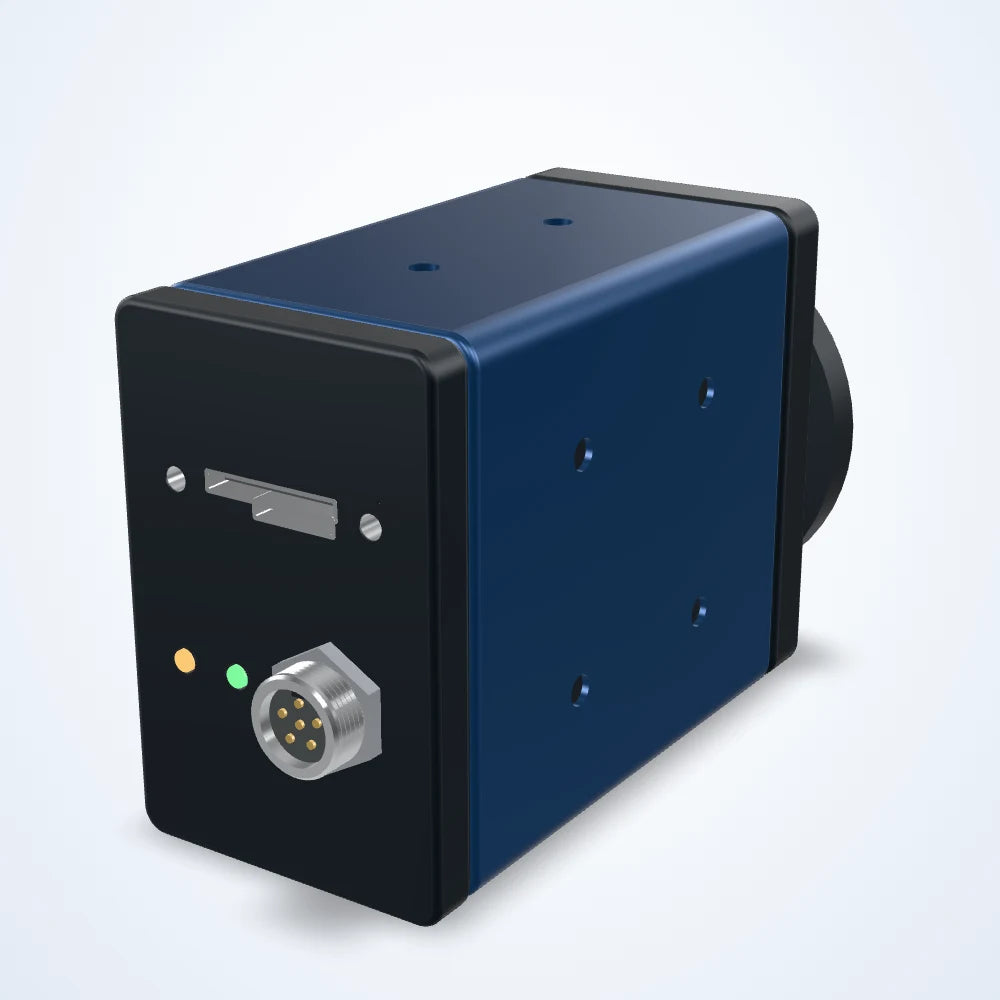

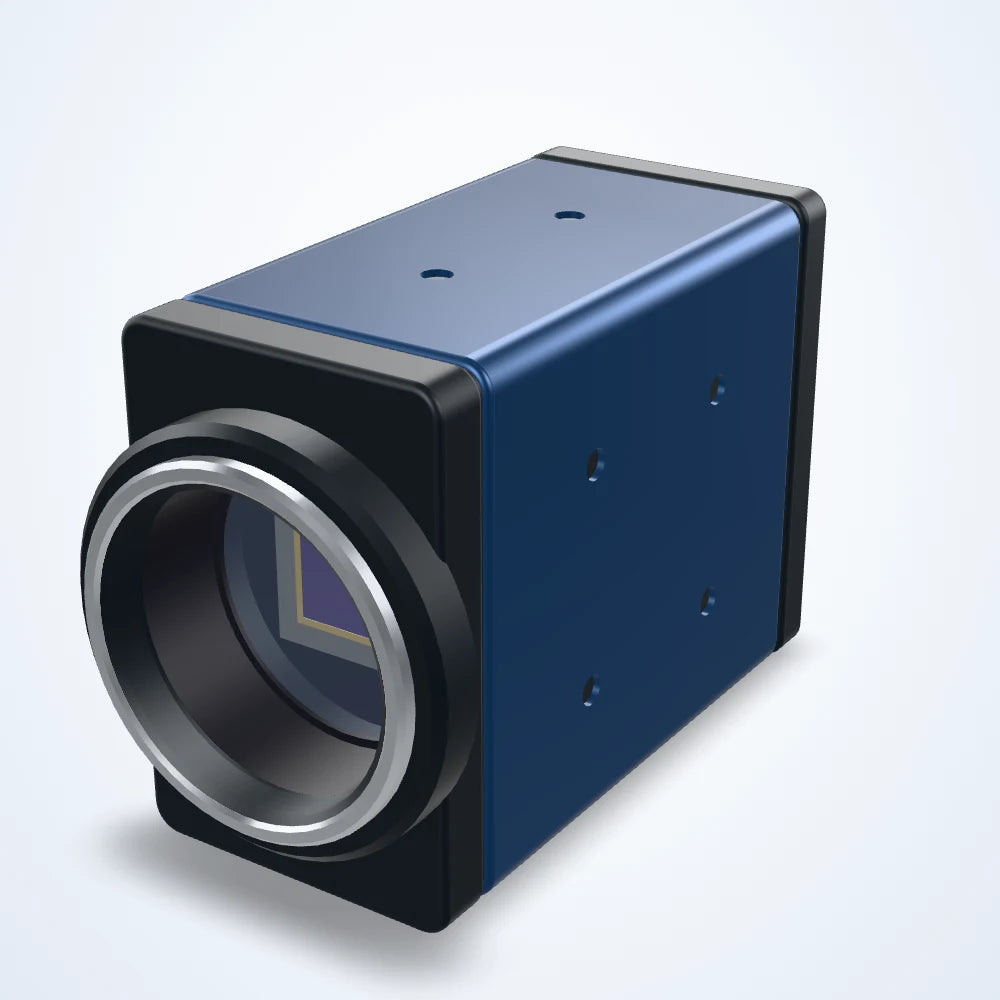

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
26.2 MP USB3 area scan camera, GMAX0505, 1.1" global shutter, 14 fps (LS-CMR-0178)
Model LS-CMR-0178
- Resolution5120 px x 5120 px
- Sensor1.1"
- InterfaceUSB 3.0
- Speed14 fps
- Lens mountC-mount
- Pixel size2.5 μm x 2.5 μm
$1,600.00
Ships in 3-4 weeks
0.28 kg shipping weight
Not available in the United States. Available for delivery to other countries.
26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 CMOS sensor (1.1"); 5120 x 5120 pixels of 2.5 μm; up to 14 frames per second; global shutter; USB3 interface; C-mount lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0178 |
|---|
Sensor and imaging
| Resolution | 5120 px x 5120 px |
|---|---|
| Pixel size | 2.5 μm x 2.5 μm |
| Max. frame rate | 14 fps |
| Sensor make | Gpixel |
| Sensor model | GMAX0505 |
| Shutter | Global Shutter |
| Sensor size | 1.1" |
| Sensor type | CMOS |
| Dynamic range | 64 dB |
| Pixel bit depth | 12 bit |
| SNR | >38.0 dB |
Interfaces and I/O
| Data interface | USB 3.0 |
|---|---|
| Digital I/O | 1 input(opto-isolated), 1 output(opto-isolated),1 configurable input and output(without opto-isolated) |
Environment and compliance
| Operating temperature | -30 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | USB3 Vision and GenICam |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | Soft Trigger,Hardware Trigger,Free Run |
|---|---|
| Power supply | 6-24 VDC |
| Power consumption | 12 V@ ≈4.0 W |
Mechanical

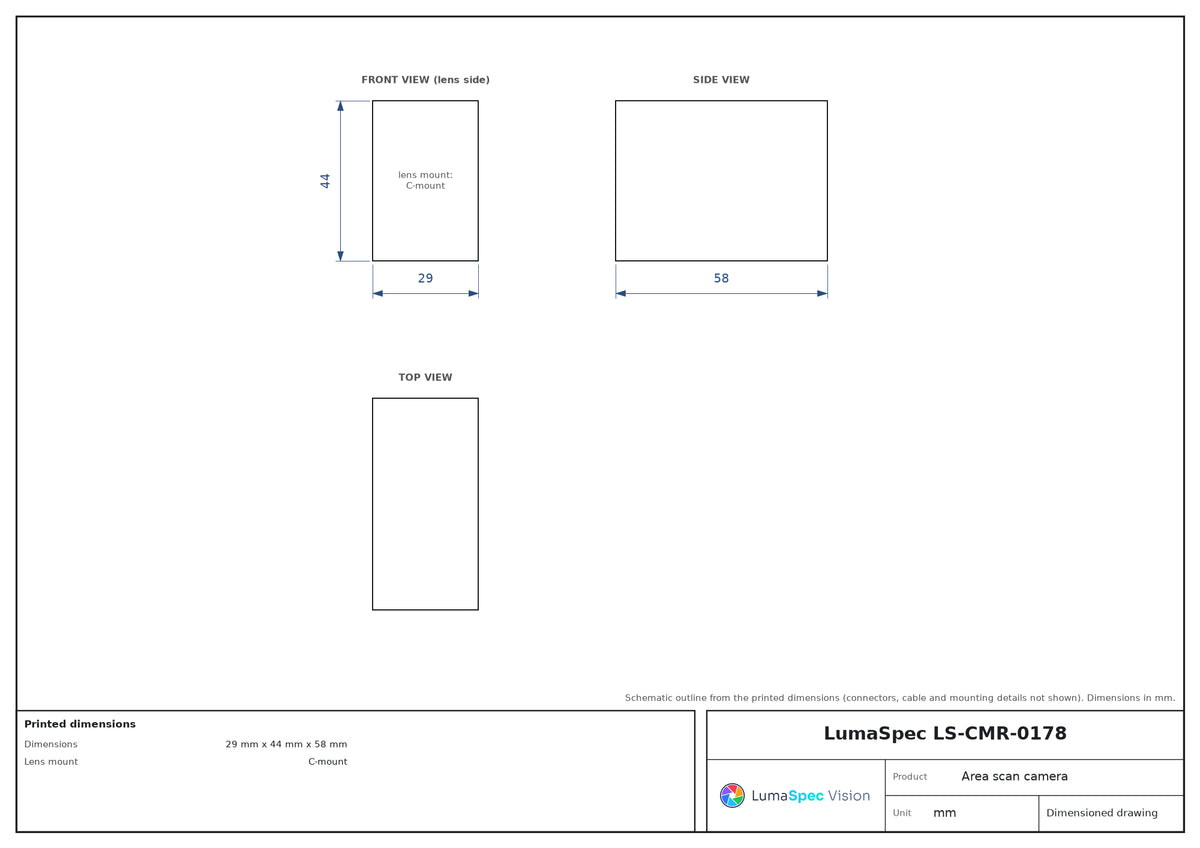

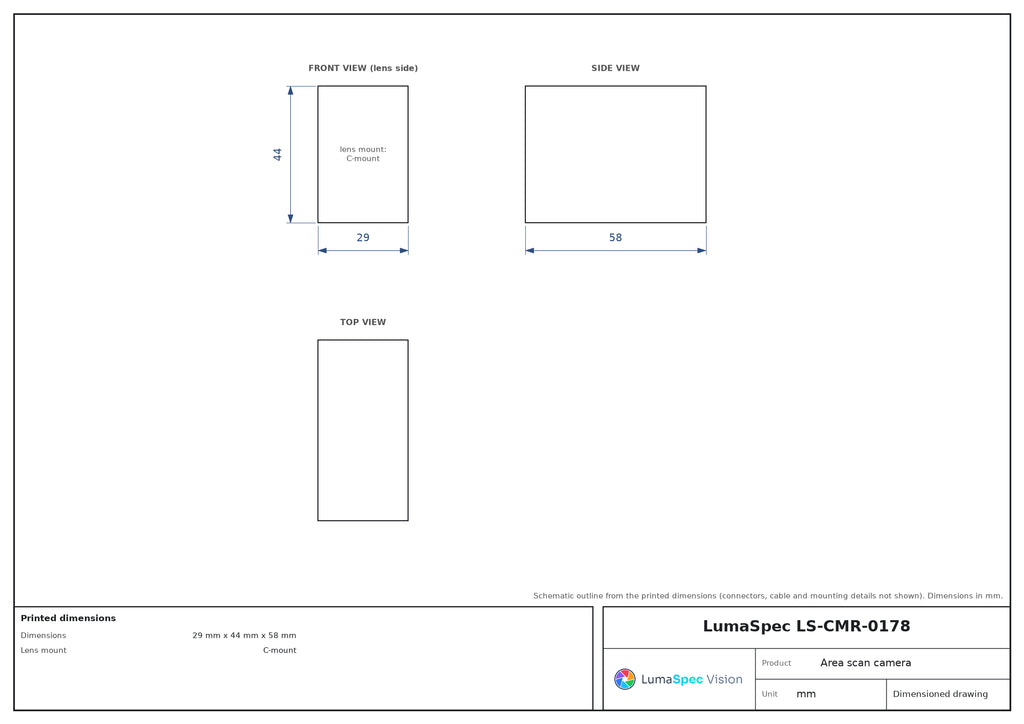

| Dimensions | 29 mm x 44 mm x 58 mm |
|---|---|
| Lens mount | C-mount |
| Weight | 100g |
| Mounting holes | 2-M3; 2-M2 |
