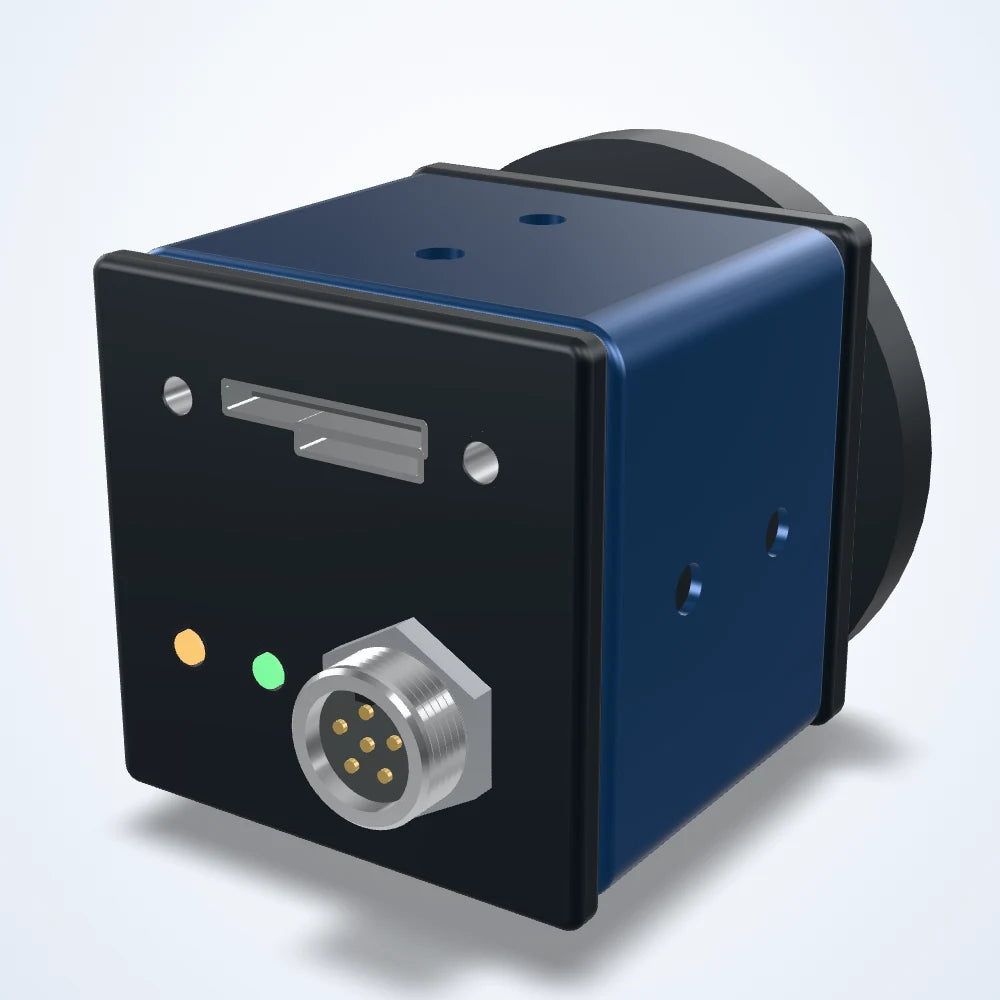

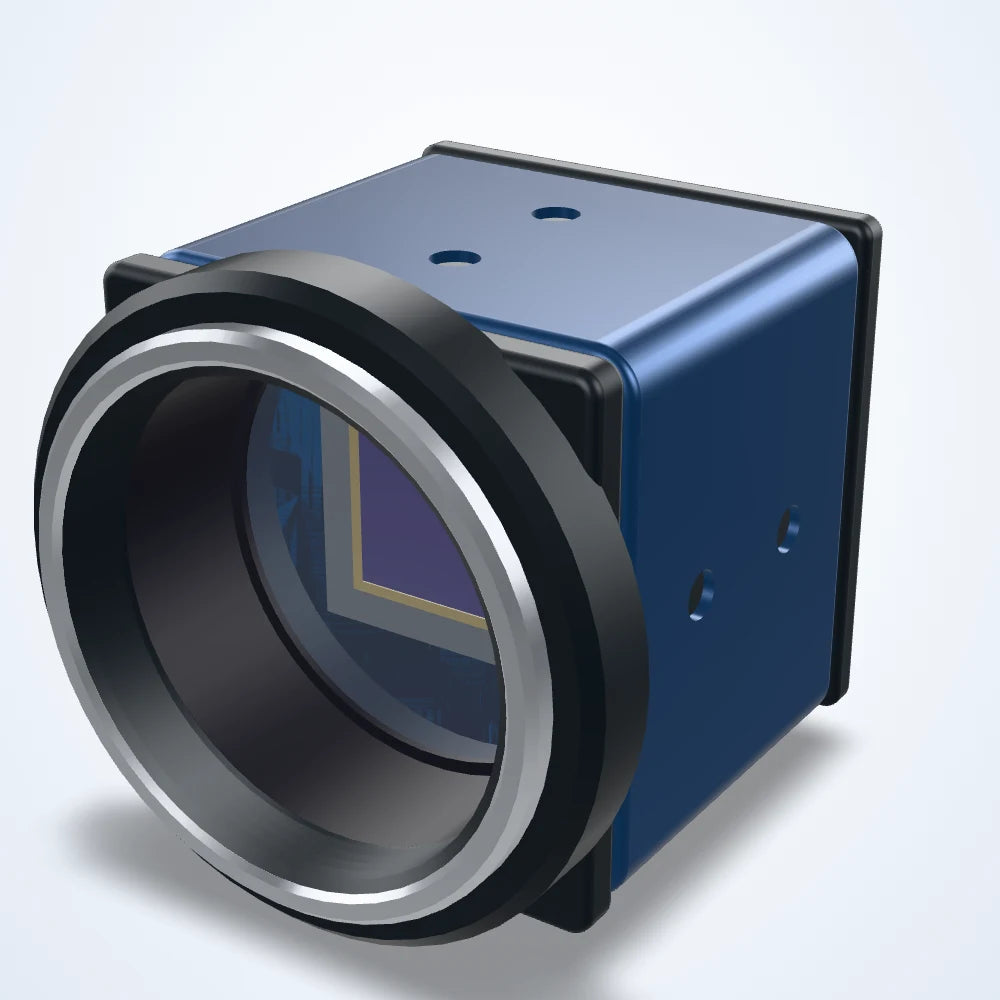

USB3 area scan camera IMX546 (series view)

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

8.1 MP USB3 area scan camera, IMX546, 1" global shutter, 32 fps (LS-CMR-0156)

Model LS-CMR-0156

Resolution2840 × 2840
Sensor2/3"
InterfaceUSB 3.0
Speed46 fps
Lens mountC-mount
Pixel size2.74 x 2.74 μm

$1,200.00

Ships in 3-4 weeks

0.23 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

8.1 MP area scan camera for inspection, measurement and guidance on the production line. IMX546 CMOS sensor (1"); 2840 x 2840 pixels of 2.74 μm; up to 32 frames per second; global shutter; USB3 interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0156

Sensor and imaging

Resolution	2840 × 2840
Pixel size	2.74 x 2.74 μm
Max. frame rate	46 fps
Sensor make	Sony
Sensor model	IMX546
Shutter	Global Shutter
Sensor size	2/3"
Sensor type	CMOS
Dynamic range	>70.0 dB
Pixel bit depth	10 bit
SNR	>38.0 dB

Interfaces and I/O

Data interface	USB 3.0
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30~80 °C (Storage), -30~50° C (Working)
Certification	USB3 Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run mode
Power supply	DC 9-24 V, Supporting USB
Power consumption	12 V@ ≈4.0 W

Mechanical

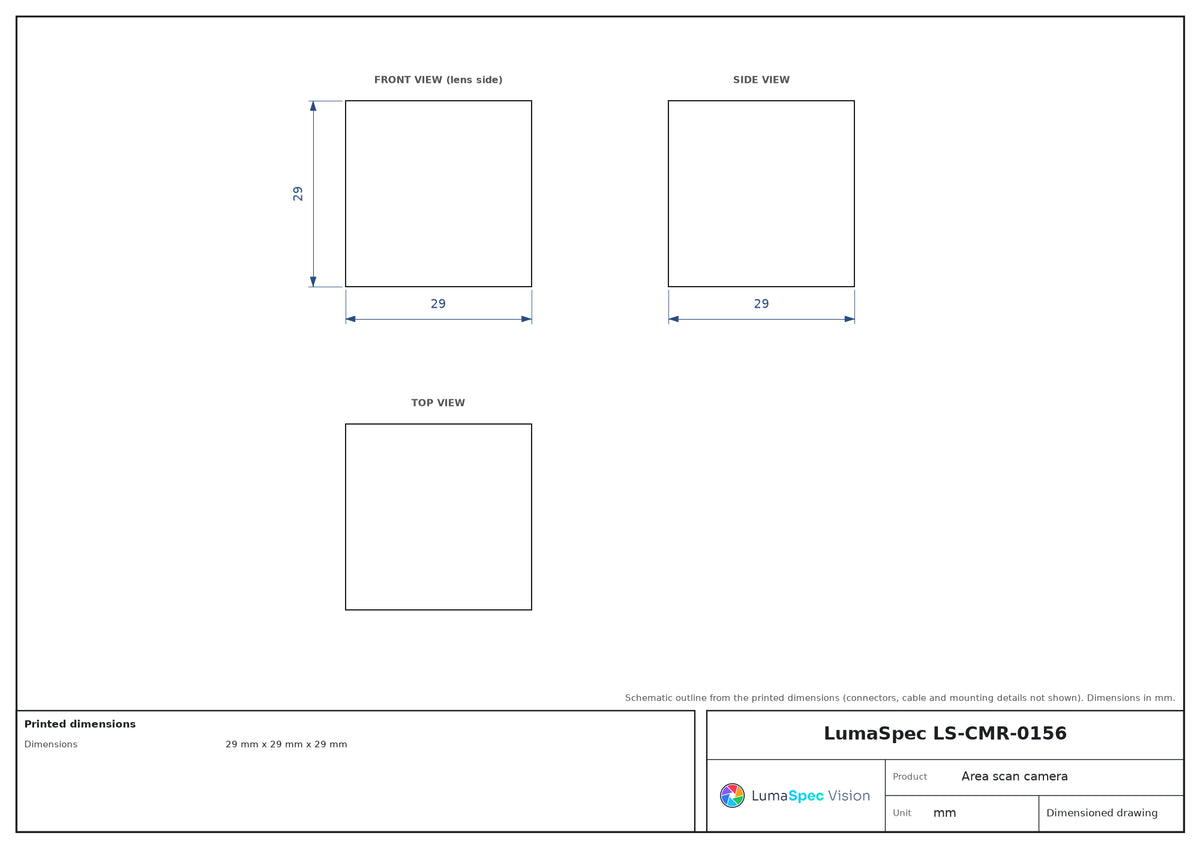

Dimensions	29 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized )
Weight	60g
Mounting holes	2-M3; 2-M2
