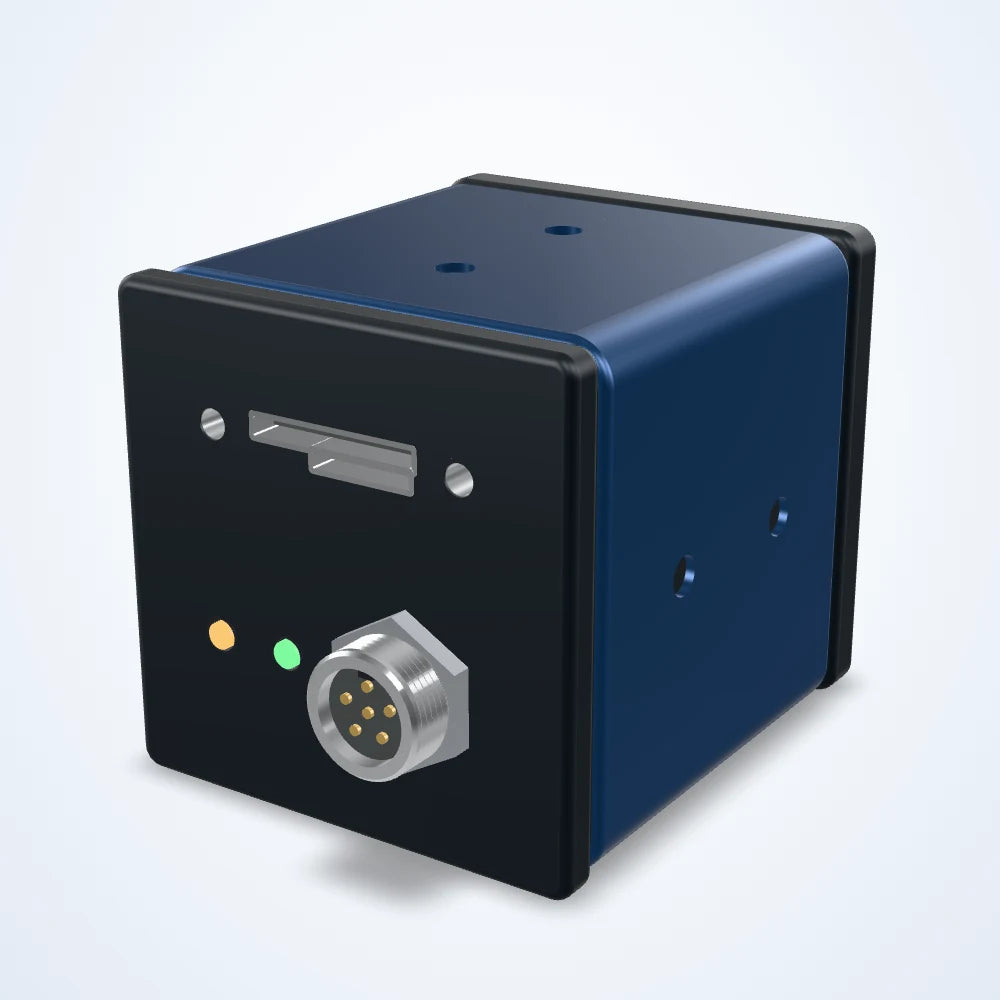

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
8.8 MP USB3 area scan camera, IMX267, 1" global shutter, 40 fps (LS-CMR-0161)
Model LS-CMR-0161
- Resolution4096 × 2160
- Sensor1"
- InterfaceUSB3.0
- Speed41.6 fps
- Lens mountC-mount
- Pixel size3.45 × 3.45 μm
$1,415.00
Ships in 3-4 weeks
1.0 kg shipping weight
Not available in the United States. Available for delivery to other countries.
8.8 MP area scan camera for inspection, measurement and guidance on the production line. IMX267 sensor (1"); 4096 x 2160 pixels of 3.45 μm; up to 40 frames per second; global shutter; USB3 interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0161 |
|---|---|
| Image Format (Mono) | Mono8 / Mono10 / Mono10Packed / Mono12 / Mono12Packed |
| ROI | Yes |
| Gamma / LUT | Range: 0–3.99998 |
| Image Acquisition Mode | Software Trigger / Hardware Trigger / Free Run |
Sensor and imaging
| Sensor size | 1" |
|---|---|
| Resolution | 4096 × 2160 |
| Max. frame rate | 41.6 fps |
| Sensor model | Sony IMX267 (1" CMOS) |
| Pixel size | 3.45 × 3.45 μm |
| Pixel bit depth | 12 bit |
| Shutter | Global Shutter |
| SNR | 40 dB |
| Dynamic range | 70.6 dB |
| Binning | Off, 1×2, 2×1, 2×2, 1×4, 4×1, 2×4, 4×2, 4×4, 3×3 |
| Gain | 1×–32× |
| Exposure time | Ultra-fast: 1 μs–14 μsStandard: 15 μs–10 sec |
| Image buffer | 256 MB |
| Sensor make | Sony |
| Sensor type | CMOS |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | 1× Opto-Isolated Input, 1× Opto-Isolated Output, 1× Configurable I/O (No Opto-Isolation) |
Light
| Image Format (Color) | Bayer RG8 / RG10 / RG10Packed / RG12 / RG12Packed / YUV422_8_UYVY / YUV422_8 / RGB8 / BGR8 |
|---|
Environment and compliance
| Operating temperature | 0 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | USB3 Vision and GenICam |
Computing
| User Configuration Storage | Supports saving 3 sets of user-defined configurations |
|---|---|
| Operating system | Windows, Linux |
Electrical
| SPC Configuration Channel | Support |
|---|---|
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
| Power supply | USB 3.0, DC9V~24 V |
Mechanical
| Dimensions | 29 mm×29 mm×30 mm(not including lens mount and rear case connector) |
|---|---|
| Lens mount | C-mount |
| Weight | 85g |
