USB3 area scan camera PYTHON300 1/4" global shutter (series view)
  • USB3 area scan camera PYTHON300 1/4" global shutter (series view)
  • USB3 area scan camera PYTHON300 1/4" global shutter (series view)
  • 0.3 MP USB3 area scan camera, PYTHON300, 1/4" global shutter, 815 fps

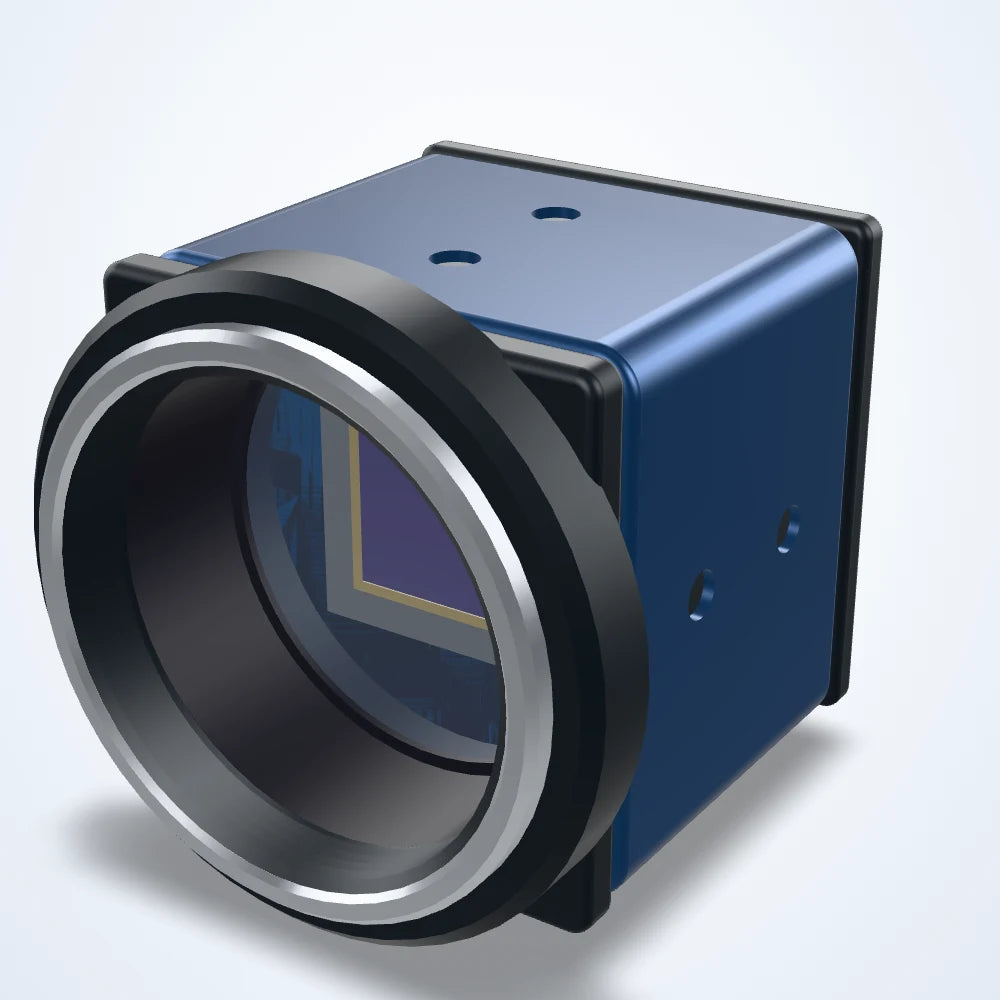

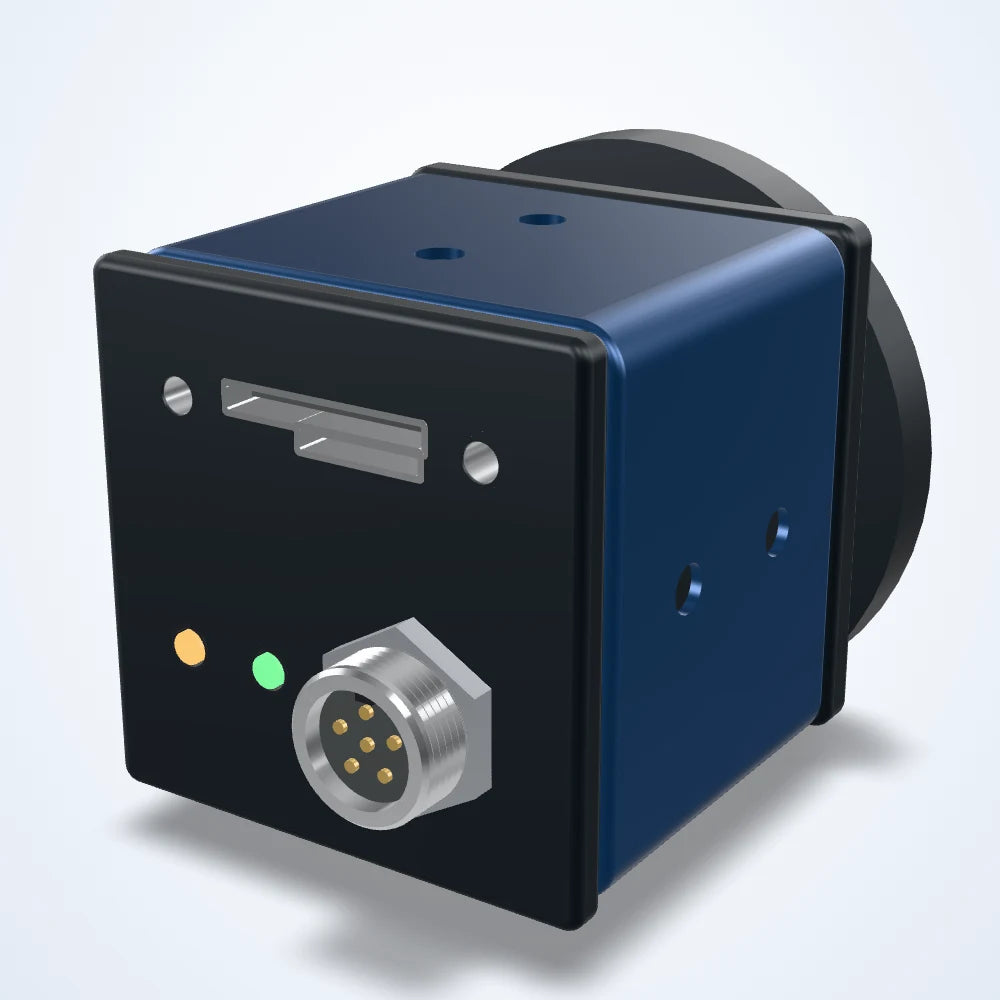

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

0.3 MP USB3 area scan camera, PYTHON300, 1/4" global shutter, 815 fps (LS-CMR-0118)

Model LS-CMR-0118

  • Resolution640 px x 480 px
  • Sensor1/4"
  • InterfaceUSB3.0
  • Speed815 fps
  • Lens mountC-mount
  • Pixel size4.8 μm x4.8 μm
$450.00

Ships in 3-4 weeks

0.26 kg shipping weight

OptionMono

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.3 MP USB3 area scan camera, PYTHON300, 1/4" global shutter, 815 fps (LS-CMR-0118)LS-CMR-0118

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.3 MP area scan camera for inspection, measurement and guidance on the production line. PYTHON300 CMOS sensor (1/4"); 640 x 480 pixels of 4.8 μm; up to 815 frames per second; global shutter; USB3 interface; C-mount lens mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0118

Sensor and imaging

Resolution640 px x 480 px
Pixel size4.8 μm x4.8 μm
Max. frame rate815 fps
Sensor makeON Semiconductor
Sensor modelPYTHON300
ShutterGlobal Shutter
Sensor size1/4"
Sensor typeCMOS
Dynamic range60 dB

Interfaces and I/O

Data interfaceUSB3.0

Environment and compliance

Operating temperature-30 - 50°C(Operating), -30 - 80°C(Storage)
CertificationUSB3 Vision and GenICam

Computing

Operating systemWindows, Linux

Electrical

Trigger modeSoft Trigger,Hardware Trigger,Free Run
Power supplyDC 6-24 V, Supporting USB

Mechanical

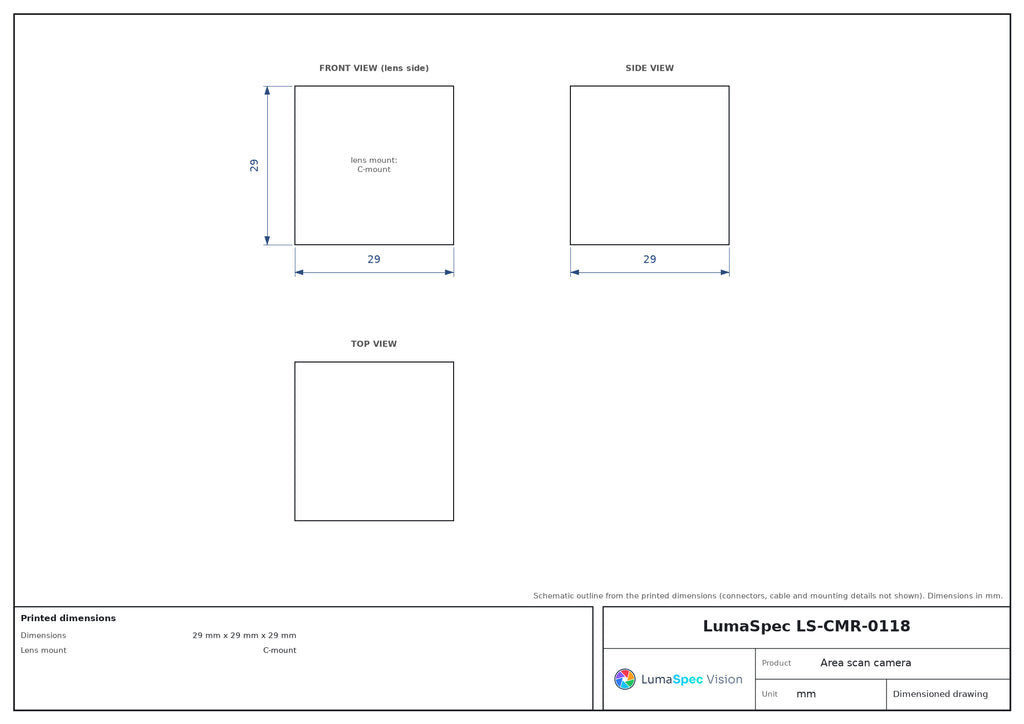

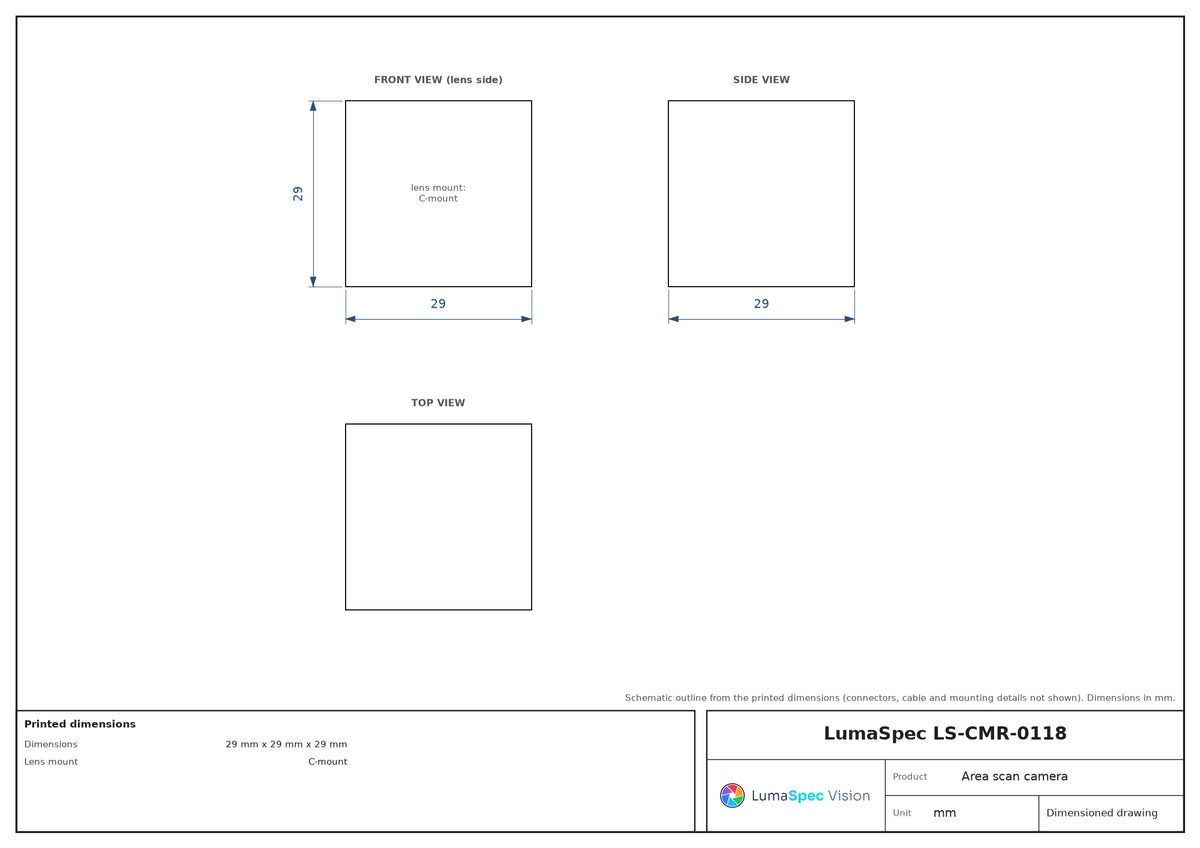

Dimensions29 mm x 29 mm x 29 mm
Lens mountC-mount
Weight85g
