1.3 MP USB3 area scan camera, PYTHON1300, 1/2" global shutter, 210 fps
  • 1.3 MP USB3 area scan camera, PYTHON1300, 1/2" global shutter, 210 fps
  • 1.3 MP USB3 area scan camera, PYTHON1300, 1/2" global shutter, 210 fps
  • 1.3 MP USB3 area scan camera, PYTHON1300, 1/2" global shutter, 210 fps

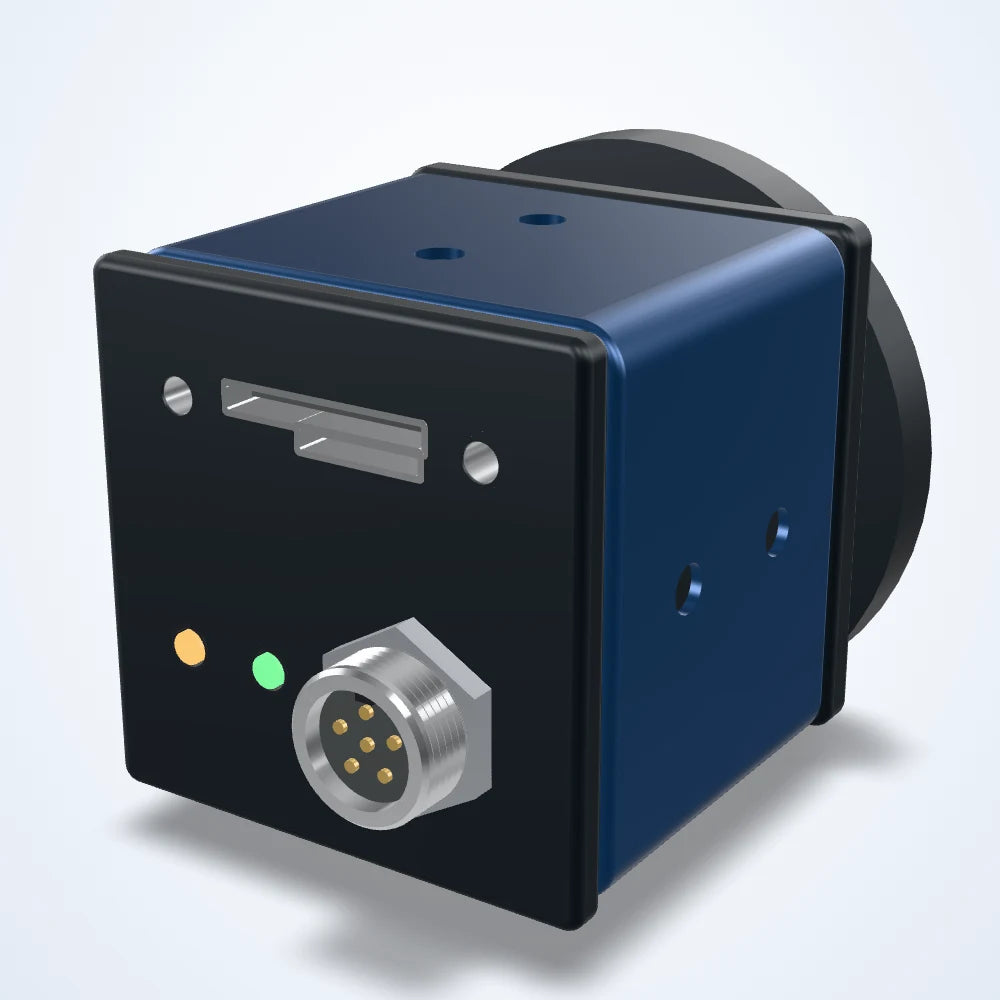

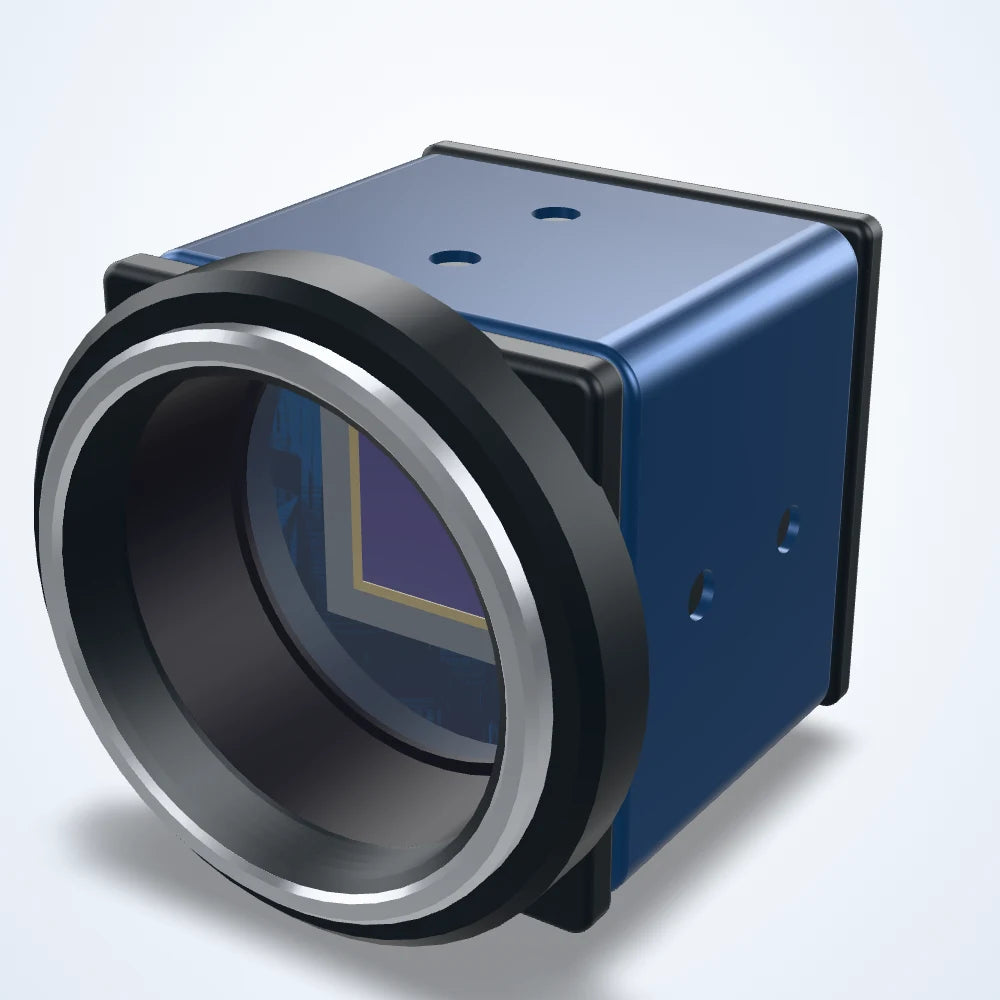

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1.3 MP USB3 area scan camera, PYTHON1300, 1/2" global shutter, 210 fps (LS-CMR-0126)

Model LS-CMR-0126

  • Resolution1280 px x 1024 px
  • Sensor1/2"
  • InterfaceUSB 3.0
  • Speed210 fps
  • Lens mountC-mount
  • Pixel size4.8 μm x 4.8 μm
$415.00

Ships in 3-4 weeks

0.23 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.3 MP USB3 area scan camera, PYTHON1300, 1/2" global shutter, 210 fps (LS-CMR-0126)LS-CMR-0126

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.3 MP area scan camera for inspection, measurement and guidance on the production line. PYTHON1300 CMOS sensor (1/2"); 1280 x 1024 pixels of 4.8 μm; up to 210 frames per second; global shutter; USB3 interface; C-mount lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0126

Sensor and imaging

Resolution1280 px x 1024 px
Pixel size4.8 μm x 4.8 μm
Max. frame rate210 fps
Sensor makeON Semiconductor
Sensor modelPYTHON 1300
ShutterGlobal Shutter
Sensor size1/2"
Sensor typeCMOS
Dynamic range60.0 dB
SNR>38.0 dB
Pixel bit depth8 / 10 bits

Interfaces and I/O

Data interfaceUSB 3.0
Digital I/O1 input(opto-isolated), 1 output(opto-isolated),1 configurable input and output(without opto-isolated)

Environment and compliance

Operating temperature-30 - 50°C(Operating), -30 - 80°C(Storage)
CertificationUSB3 Vision and GenICam

Computing

Operating systemWindows, Linux

Electrical

Trigger modeSoft Trigger,Hardware Trigger,Free Run
Power supply6-24 VDC

Mechanical

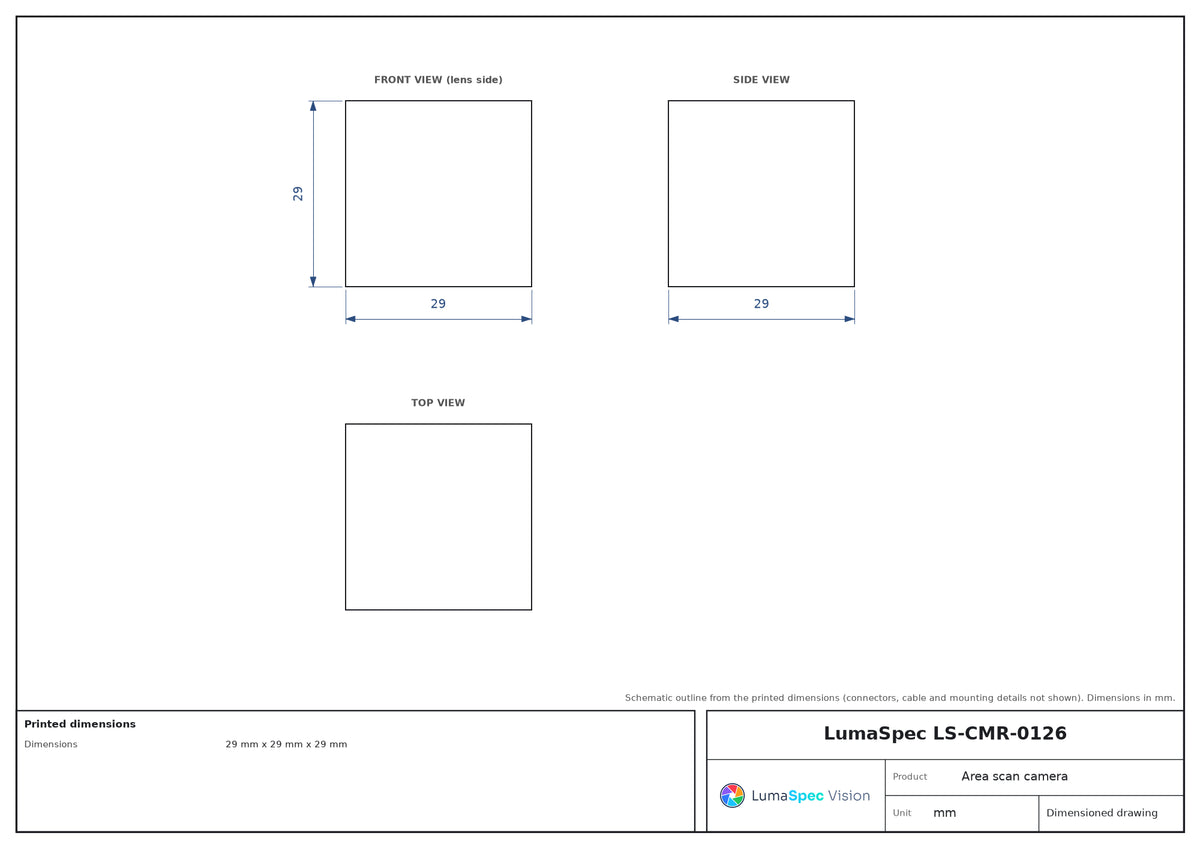

Dimensions29 mm x 29 mm x 29 mm
Lens mountC-mount (CS-Mount can be customized )
Weight60g
