5.2 MP USB3 area scan camera, 1/2.5" rolling shutter, 27 fps
  • 5.2 MP USB3 area scan camera, 1/2.5" rolling shutter, 27 fps
  • 5.2 MP USB3 area scan camera, 1/2.5" rolling shutter, 27 fps

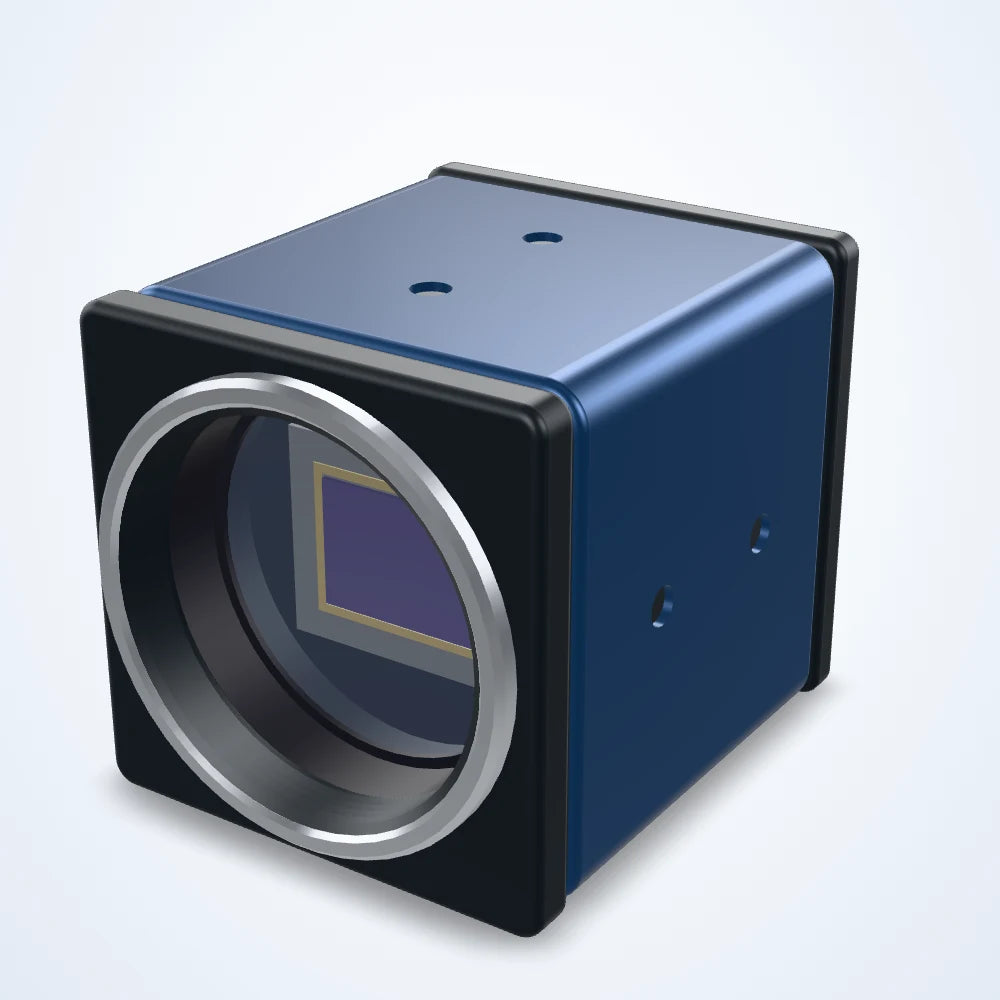

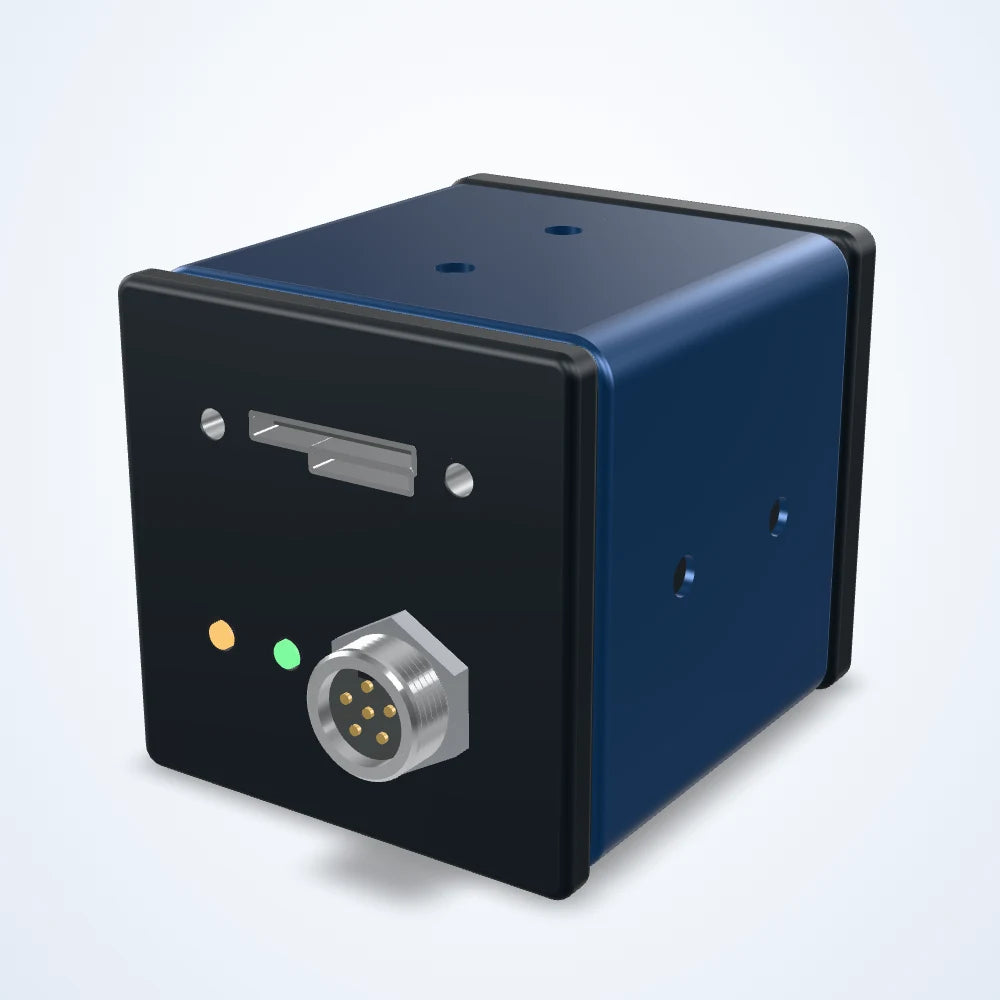

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

5.2 MP USB3 area scan camera, 1/2.5" rolling shutter, 27 fps (LS-CMR-0139)

Model LS-CMR-0139

  • Resolution2640 x 1978
  • Sensor1/2.5"
  • InterfaceUSB3
  • Speed27 fps
  • Lens mountC-mount
  • Pixel size6.9 μm x 6.9 μm

Price on request

Ships in 3-4 weeks

2.0 kg shipping weight

OptionMono

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

5.2 MP USB3 area scan camera, 1/2.5" rolling shutter, 27 fps (LS-CMR-0139)LS-CMR-0139

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

5.2 MP area scan camera for inspection, measurement and guidance on the production line. 2640 x 1978 pixels of 6.9 μm; up to 27 frames per second; rolling shutter; USB3 interface; C-mount lens mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0139

Sensor and imaging

Resolution2640 x 1978
Pixel size6.9 μm x 6.9 μm
Max. frame rate27 fps
ShutterRolling Shutter
Sensor size1/2.5"

Interfaces and I/O

Data interfaceUSB3

Mechanical

Lens mountC-Mount
Shipping weight2.00 kg
