Ring lights

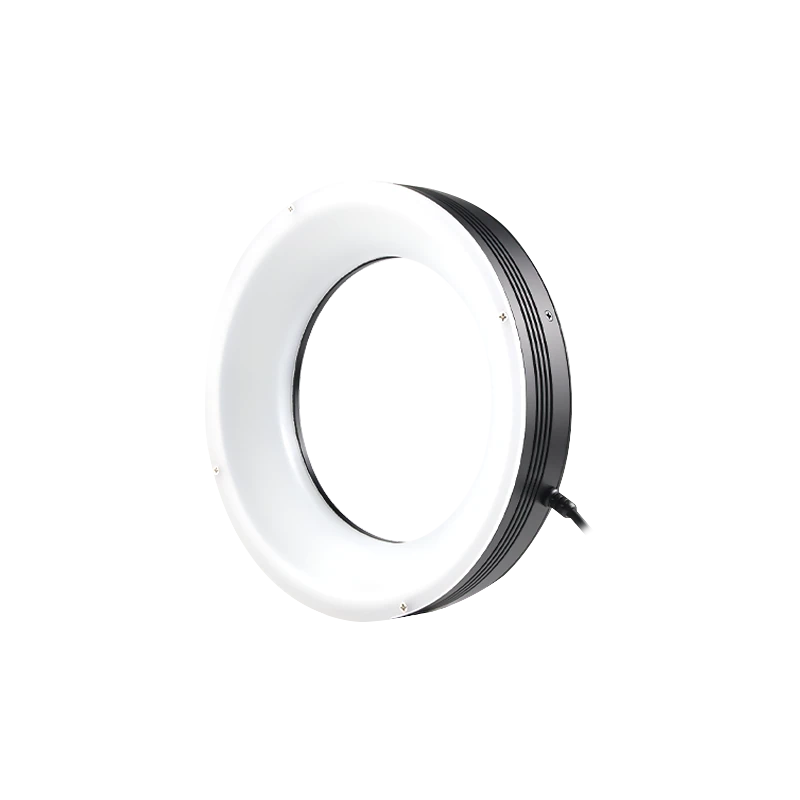

Ring light with diffuser (LS-RNG-S50)
- 41 models
- from $99.00
- Series LS-RNG-S50
The Ring light with diffuser (LS-RNG-S50) is a range of 41 ring lights from LumaSpec Vision, from $99.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Blue, White
- Size
- 50-100 mm, 100-200 mm, 200-400 mm
- Type
- Diffused
- Angle
- 30°, 45°, 60°, 90°
- Voltage
- 24 V
- Connector
- 3-pin flat
Features
- Uniformity diffuser on every model
- Light angles 30, 45, 60 and 90 degrees
- SMD and DIP LED versions
- Three-colour RGB light source, diameter/height, wavelength/colour temperature, illumination angle, mounting and wire length customization
- Optional DIP/SMD lamp bead type.
- Outside diameter: 60mm, Inside diameter: 22mm, Thickness: 20mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
Typical uses
- Surface bumps, scratches and other defects detection
- Print character, mark, bar code, fingerprint image recognition
- Auto parts defect detection
- Nut defect detection
All 41 models in the Ring light with diffuser (LS-RNG-S50)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-RNG-0125 | 30 | 22 | 60 | 1.2 | $99.00 | View |
| LS-RNG-0124 | 45 | 20 | 53 | 1.9 | $99.00 | View |
| LS-RNG-0126 | 45 | 25 | 60 | 2.2 | $109.00 | View |
| LS-RNG-0127 | 60 | 25 | 60 | 2.2 | $109.00 | View |
| LS-RNG-0128 | 90 | 30 | 60 | 2.2 | $119.00 | View |
| LS-RNG-0129 | 30 | 35 | 70 | 2.8 | $129.00 | View |
| LS-RNG-0130 | 45 | 35 | 70 | 2.8 | $129.00 | View |
| LS-RNG-0131 | 60 | 35 | 70 | 2.8 | $129.00 | View |
| LS-RNG-0137 | 60 | 40 | 90 | 5.0 | $139.00 | View |
| LS-RNG-0132 | 90 | 40 | 70 | 2.8 | $139.00 | View |
| LS-RNG-0133 | 90 | 40 | 80 | 4.4 | $139.00 | View |
| LS-RNG-0138 | 90 | 40 | 90 | 6.6 | $139.00 | View |
| LS-RNG-0141 | 90 | 40 | 100 | 8.4 | $139.00 | View |
| LS-RNG-0134 | 30 | 45 | 80 | 3.1 | $149.00 | View |
| LS-RNG-0139 | 30 | 45 | 90 | 5.0 | $149.00 | View |
| LS-RNG-0135 | 45 | 45 | 80 | 3.4 | $149.00 | View |
| LS-RNG-0140 | 45 | 45 | 90 | 5.3 | $149.00 | View |
| LS-RNG-0136 | 60 | 45 | 80 | 3.1 | $149.00 | View |
| LS-RNG-0142 | 60 | 50 | 100 | 5.6 | $159.00 | View |
| LS-RNG-0145 | 90 | 50 | 120 | 10.6 | $159.00 | View |
| LS-RNG-0143 | 30 | 55 | 100 | 5.9 | $169.00 | View |
| LS-RNG-0144 | 45 | 55 | 100 | 5.9 | $169.00 | View |
| LS-RNG-0146 | 60 | 60 | 120 | 9.0 | $179.00 | View |
| LS-RNG-0147 | 45 | 70 | 120 | 9.7 | $209.00 | View |
| LS-RNG-0148 | 30 | 75 | 120 | 7.2 | $219.00 | View |
| LS-RNG-0149 | 60 | 95 | 150 | 12.5 | $259.00 | View |
| LS-RNG-0150 | 90 | 95 | 150 | 12.2 | $259.00 | View |
| LS-RNG-0151 | 45 | 100 | 150 | 13.1 | $269.00 | View |
| LS-RNG-0152 | 30 | 105 | 150 | 10.0 | $279.00 | View |
| LS-RNG-0153 | 60 | 125 | 180 | 15.6 | $329.00 | View |
| LS-RNG-0154 | 90 | 125 | 180 | 15.3 | $329.00 | View |
| LS-RNG-0155 | 30 | 130 | 180 | 15.9 | $339.00 | View |
| LS-RNG-0156 | 45 | 130 | 180 | 15.9 | $339.00 | View |
| LS-RNG-0157 | 45 | 154 | 200 | 16.9 | $399.00 | View |
| LS-RNG-0160 | 60 | 154 | 208 | 17.5 | $399.00 | View |
| LS-RNG-0158 | 90 | 154 | 200 | 17.5 | $399.00 | View |
| LS-RNG-0159 | 30 | 158 | 200 | 18.8 | $409.00 | View |
| LS-RNG-0161 | 60 | 202 | 250 | 22.5 | $499.00 | View |
| LS-RNG-0164 | 30 | 206 | 250 | 22.5 | $509.00 | View |
| LS-RNG-0162 | 45 | 204 | 250 | 22.5 | $509.00 | View |
| LS-RNG-0163 | 90 | 204 | 250 | 22.5 | $509.00 | View |
